Ford E-Series E-250 E250 (1995 – 2014) – fuse box diagram
Year of production: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2009, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Fuses and circuit breakers specification
| Fuse/CB | Ampere rating [A] | Description |
| 1 | 15 | Brake pressure switch, DLC, PSOM, speed control, stop/hazard/turn lamp |
| 2 | 30 | Wiper control module, windshield wiper motor |
| 3 | — | Not used |
| 4 | 20 | Flash-to-pass, instrument illumination, license lamps, head and park lamps |
| 5 | 15 | Air bag module, auxiliary battery relay, back-up lamps, daytime runnin lamps (DRL) module, hazard lamps, shift lock actuator, transmission control switch, turn lamps |
| 6 | 20 | Accessory tap, anti-theft module, illuminated entry, remote keyless entry module, speed control, trailer battery charge relay |
| 7 | 10 | Anti-theft module, transmission range sensor, park/neutral position module (PCM) |
| 8 | 15 | Anti-theft indicator, courtesy lamp switch, dome/map lamp, illuminated entry, power mirrors, radio memory, remote keyless entry module, visor lamps |
| 9 | 15 | Air conditioner switch |
| 10 | 25 | Cigar lighter, power amplifier, rear power outlet |
| 11 | 15 | Headlamp switch, radio |
| 12 | 20 CB | Anti-theft module, power door locks, memory lock module |
| 13 | 5 | Instrument panel illumination lamps |
| 14 | 20 CB | Power windows |
| 15 | 20 | Air bad module |
| 16 | 30 | Modified vehicle power, power lumbar seats |
| 17 | 20 | Programmable speedometer/odometer module (PSOM), rear anti-lock brake system (RABS) |
| 18 | 15 | Instrument panel warning lamps, warning chime |
| Circuit protected | Location | Size |
| Alternator | Starter motor relay | 18 GA |
| Alternator | Starter motor relay | 12 GA (2) |
| Glow plugs right bank (diesel) | Starter motor relay | 14 GA |
| Glow plugs left bank (diesel) | Starter motor relay | 14 GA |
| Powertrain control module (diesel) | Starter motor relay | 16 GA |
| 20 GA | ||
| Ignition switch | Power distribution box | 60 A fuse |
| Trailer tow | Power distribution box | 40 A fuse |
| Trailer tow | Power distribution box | 30 A fuse |
| Fuse panel | Power distribution box | 60 A fuse |
| Aux. panel | Power distribution box | 50 A fuse |
| Blower motor | Power distribution box | 60 A fuse |
| Modified Vehicle | Power distribution box | 50 A fuse |
| Electric brake | Power distribution box | 20 A fuse |
| Driver’s power seat/lumbar | Power distribution box | 50 A fuse |
| Turn signal – RH (trailer tow) | Power distribution box | 10 A fuse |
| Turn signal – LH (trailer tow) | Power distribution box | 10 A fuse |
| Running lights (trailer tow) | Power distribution box | 10 A fuse |
| Horn | Power distribution box | 15 A fuse |
| Trailer tow & aux. batt. relay | Power distribution box | 60 A fuse |
| Fuel pump (gas engine only) | Power distribution box | 30 A fuse |
| Powertrain control module | Power distribution box | 30 A fuse |
| Underhood lamp | Power distribution box | 15 A fuse |

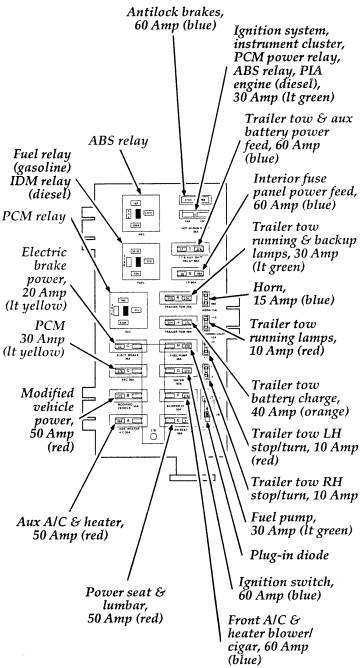

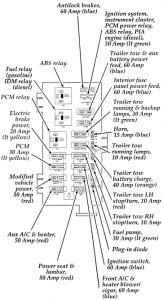

Power distribution box
Non-fuse panel circuit protection
| Circuit protected | Type of protection | Location |
| Glow plug right bank | 14 Gauge Fuse link | Starter motor relay |
| Glow plug left bank | 14 Gauge Fuse link | Starter motor relay |
| Alternator | 18 Gauge Fuse link | Starter motor relay |
| Alternator | 12 Gauge Fuse link (2) | Starter motor relay |
| Disel PCMRealy/KAM | 16 Gauge20 GaugeFuse link | Starter motor relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
