Ford F-150 (1997 – 2004) – fuse box diagram

Ford F-150 (1997 – 2004) – fuse box diagram

Year of production: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Passenger Compartment Fuse Panel

Ford F-150 – fuse box diagram – passenger compartment fuse panel
Ford F-150 – fuse box diagram – passenger compartment fuse panel
Number Ampere rating [A] Description
1 15 Audio
2 5 Powertrain Control Module (PCM), Cluster
3 20 Cigar lighter, Data link connector
4 5 2000-2004: Power mirror switch, Mirror turn signal relays
15 1997-1999: Autolamp Module, Remote Entry Module, Mirrors
5 15 Speed control module, Reverse lamp, Climate mode switch, Daytime Running Lamps (DRL) relay, Digital Transmission Range (DTR) sensor (2001-2004), AC Clutch Relay (1997-1999)
6 5 Cluster, Brake shift interlock solenoid, GEM, Rear Air Suspension Module (1997-1999)
7
8 5 Radio, Remote entry module, GEM, In-vehicle entertainment system (SuperCrew only)
9
10
11 30 Front washer pump relay, Wiper run/park relay, Wiper HI/LO relay, Windshield wiper motor
12
13 20 Stop lamp switch (Lamps), Turn/Hazard flasher, Speed Control Module (1997-2000)
14 15 Battery saver relay, Interior lamp relay, Accessory Delay Relay (Power Windows) (1997-2000)
15 5 Stop lamp switch (speed control, brake shift interlock, ABS (1997-2000), PCM Module Inputs (1997-2000)), GEM, Rear Anti-lock Brake System (RABS) module
16 20 Headlamps (hi beams), Cluster (hi beam indicator)
17
18 5 Instrument illumination (dimmer switch power)
19
20 5 Audio, GEM, Powertrain Control Module (PCM), Transmission range sensor
21 15 Clutch switch, Starter relay, I/P fuse 20, Digital Transmission Range (DTR) Sensor (2001-2004)
22 10 Air bag module, Passenger air bag deactivation module
23 10 Trailer tow battery Charge relay, Turn/Hazard flasher, 4×4 solenoids, 4×4 relays, Overhead console, 4-Wheel Anti-lock Brake System (4WABS) module, EC mirror, Heated seats
24 10 2001-2004: Function selector switch assembly
1997-1999: Climate Mode Switch (Blower Relay)
25 10 2003-2004: Heated mirrors
5 1997-1999: 4 Wheel Anti-Lock Brake System (4WABS) Module
26 10 Right-hand low beam headlamp
27 5 Foglamp relay and foglamp indicator, Main light switch (upstream) (2001-2004)
28 10 Left-hand low beam headlamp
29 5 Autolamp module, Transmission overdrive control switch, Central security module (2001-2004), Beltminder (2001-2004)
30 30 Passive Anti-theft transceiver, Cluster, Ignition coils, PCM relay, Coil on plugs (2001-2004), Radio noise capacitor (2001-2004), ECC diode (2001-2004)
31
Relay
R1 Interior lamp relay
R2 Battery saver relay
R3
R4 One-touch down window relay
R5 Accessory delay relay

Power Distribution Box

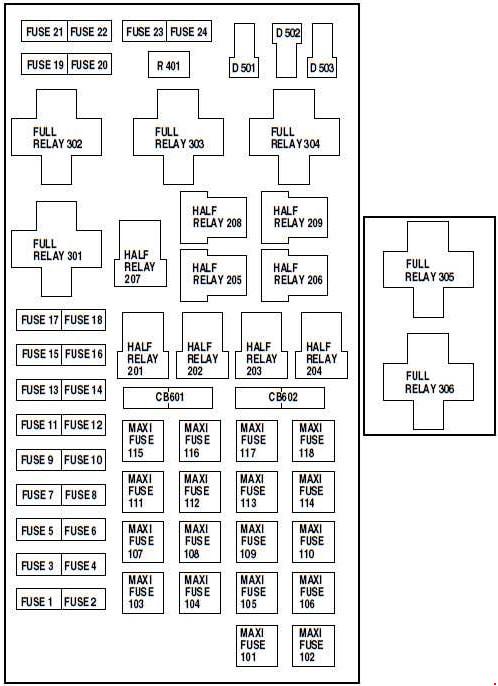

Ford F-150 – fuse box diagram – power distribution box
Ford F-150 – fuse box diagram – power distribution box
Number Ampere rating [A] Description
1 20 Power point
2 30 Powertrain Control Module (PCM)
3 30 Main light switch, Headlamp relay, Multifunction switch
4 20 Console power point (Harley Davidson only)
15 1997-1999: Air Suspension
5 20 Trailer tow back-up/park lamps
6 15 Main light switch, Park lamp relay
7 20 Horn
8 15 Power door locks, Central Security Module (CSM) (2001-2004), Lock relays (not used on SuperCrew) (2001-2004)
9 15 Daytime Running Lamps (DRL), Fog lamps
10 20 Fuel pump
11 20 Alternator field
12 20 2000-2004: Rear auxiliary power point
13 15 2000-2004: A/C clutch
14
15 10 2001-2004: Running board lamps
16 15 2003-2004: Bi-fuel injector module, fuel selector switch and alternative fuel injectors (Bi-fuel vehicles only)
17
18 18 PCM, Fuel injectors, Fuel pump relay, Mass air flow sensor
19 10 Trailer/Camper adapter (right stop/tum lamp)
20 10 Trailer/Camper adapter (left stop/turn lamp)
21
22
23 15 HEGO sensor, Automatic transmission (2000-2004), Canister Vent (1997-2000), Powertrain Control Module (1997-1999), CMS Sensor (2000)
24 15 1997-1999: Powertrain Control Module, Automatic Transmission, CMS Sensor
101 30 Trailer tow battery charge
102 50 Four-wheel Anti-lock Brake System (4WABS) module
20 Rear-wheel Anti-lock Brake System (RABS) module, Ignition switch
103 50 Central junction box
104 30 4×4 shift motor & clutch
105 40 Climate control front blower
106 20 2000-2004: Intercooler pump (supercharged engine only)
107
108 30 Trailer tow electric brake
109 50 1997-1999: Air Suspension Compressor
110 30 2001-2004: Accessory delay relay (Not used on SuperCrew)
1997-2000: Power Windows
111 40 Ignition switch battery feed (start and run circuits)
112 30 Drivers power seat, Adjustable pedal switch (2000-2004)
113 40 Ignition switch battery feed (run and accessory circuits)
114
115 20 2000-2004: Power door locks (SuperCrew only)
116 40 2003-2004: Heated backlight
117
118 30 2001-2004: Heated seats
Circuit Breaker
601 2000-2004: Power windows, Moonroof (SuperCrew only)
602
Relay
201 Trailer tow park lamp relay
202 Front wiper run/park relay
203 railer tow backup lamp relay
204 A/C clutch relay
205 Horn relay
206 Fog lamp relay
207 Front washer pump relay
208 2000-2004: Intercooler pump relay (supercharged engine only)
209 Front wiper HI/LO relay
301 Fuel pump relay
302 Trailer tow battery charge relay
303 2003-2004: Heated backlight relay (SuperCrew only)
1997-1999: Rear Air Suspension Relay
304 Powertrain Control Module Relay
305 2000-2004: Fuel pump HI/LO relay (supercharged engine only)
306 2000-2004: Inertia switch relay (supercharged engine only)
401
Diode
501 Powertrain Control Module Diode
502 A/C compressor diode
503

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
