Honda Odyssey (2006 – 2007) – fuse box diagram
Year of production: 2006, 2007
Primary engine compartment fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 10 | Left Headlight Low |
| 2 | 30 | Rear Defroster Coil |
| 3 | 10 | Left Headlight High |
| 4 | 15 | Small Lights |
| 5 | 10 | Right Headlight Low |
| 6 | 10 | Right Headlight High |
| 7 | 7,5 | Back Up |
| 8 | 15 | FI ECU |
| 9 | 30 | Condenser Fan |
| 10 | — | Not used |
| 11 | 30 | Cooling Fan |
| 12 | 7,5 | MG Clutch |
| 13 | 20 | Horn, Stop |
| 14 | 30 | Defroster |
| 15 | 40 | Back Up |
| 16 | 15 | Hazard |
| 17 | 30 | VSA Motor |
| 18 | 30 | VSA |
| 19 | 30 | Option 1 |
| 20 | 40 | Option 2 |
| 21 | 40 | Heater Motor |
| 22 | 70 | +B AS F/B |
| 120 | Battery | |
| 23 | 50 | +B IGIMain |
| 40 | Power Window | |
| *: If equipped | ||

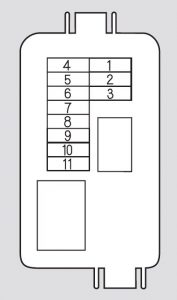

Secondary engine compartment fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | — | Not Used |
| 2 | 40 | Left Power Sliding Door* |
| 3 | 40 | Right Power Sliding Door* |
| 4 | 40 | Power Tailgate* |
| 5 | 20 | Premium |
| 6 | 20 | AC Inverter |
| 7 | 10* | Front Fog Light |
| 8 | 10 | ACM |
| 9 | 7,5 | TPMS* |
| 10 | — | Not Used |
| 11 | 7,5 | Rear Entertainment System* |
| *: If equipped | ||

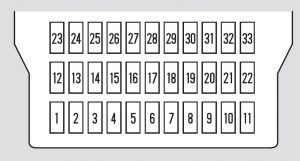

Interior fuse box (driver’s side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | — | Not Used |
| 2 | 15 | IG Coil |
| 3 | 10 | Daytime Running Light* |
| 4 | 15 | LAF |
| 5 | 7,5 | Radio |
| 6 | 7,5 | Interior Lights |
| 7 | — | — |
| 8 | 20 | Door Lock |
| 9 | 10 | Front Accessory Socket |
| 10 | 7,5 | OPDS |
| 11 | 30 | IG, Wiper |
| 12 | 15 | Rear Accessory Socket |
| 13 | 20 | Left Power Sliding Door Close** |
| 14 | 20 | Dr Power Seat Slide** |
| 15 | 20 | ADJ Pedals** |
| 16 | 20 | Dr Power Seat Recline** |
| 17 | 20 | Power Tailgate Closer** |
| 18 | 15 | IG PCU |
| 19 | 15 | IG Fuel Pump |
| 20 | 10 | IG Washer |
| 21 | 7,5 | IG Meter |
| 22 | 10 | IG SRS |
| 23 | 7,5 | IGP |
| 24 | 20 | Left Rear Window |
| 25 | 20 | Right Rear Window |
| 26 | 20 | Passenger’s Window |
| 27 | 20 | Driver’s Window |
| 28 | 20 | Moonroof |
| 29 | — | Not Used |
| 30 | 10 | IG HAC |
| 31 | — | Not Used |
| 32 | 10 | ACC |
| 33 | 7,5 | HAC Option |
| *1: On Canadian models**: If equipped | ||

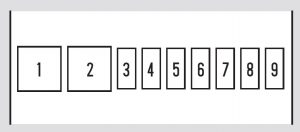

Interior fuse box (passenger’s side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | 30 | Rear Blower |
| 2 | — | Not Used |
| 3 | 15 | DBW |
| 4 | 20 | Door Lock |
| 5 | — | Not Used |
| 6 | 15 | Heated Seat |
| 7 | 7,5 | Instrument Panel |
| 8 | 20 | Right Power Sliding Door* |
| 9 | 10 | Accessory Sockets |
| *: If equipped | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
