Acura RL (2007) – wiring diagrams – navigation system

Acura RL (2007) – wiring diagrams – navigation system

Year of productions:  2007

Navigation system

Version 1

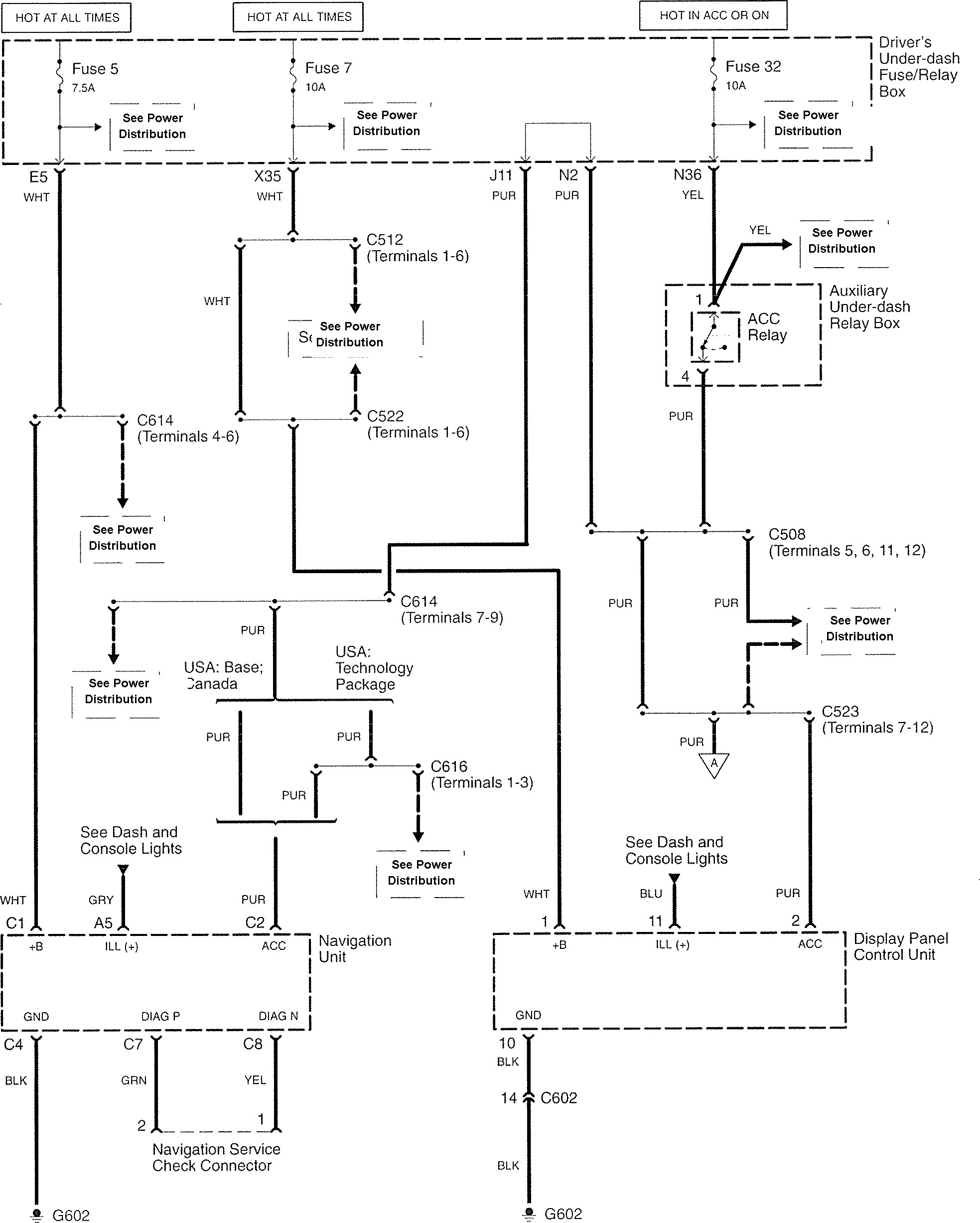

Acura RL - wiring diagram - navigation system (part 1)
Acura RL – wiring diagram – navigation system (part 1)

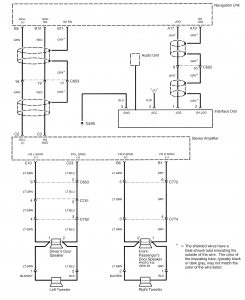

Acura RL - wiring diagram - navigation system (part 2)
Acura RL – wiring diagram – navigation system (part 2)

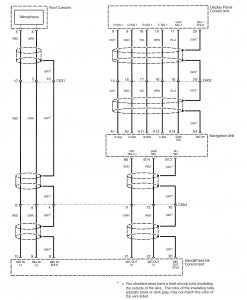

Acura RL - wiring diagram - navigation system (part 3)
Acura RL – wiring diagram – navigation system (part 3)

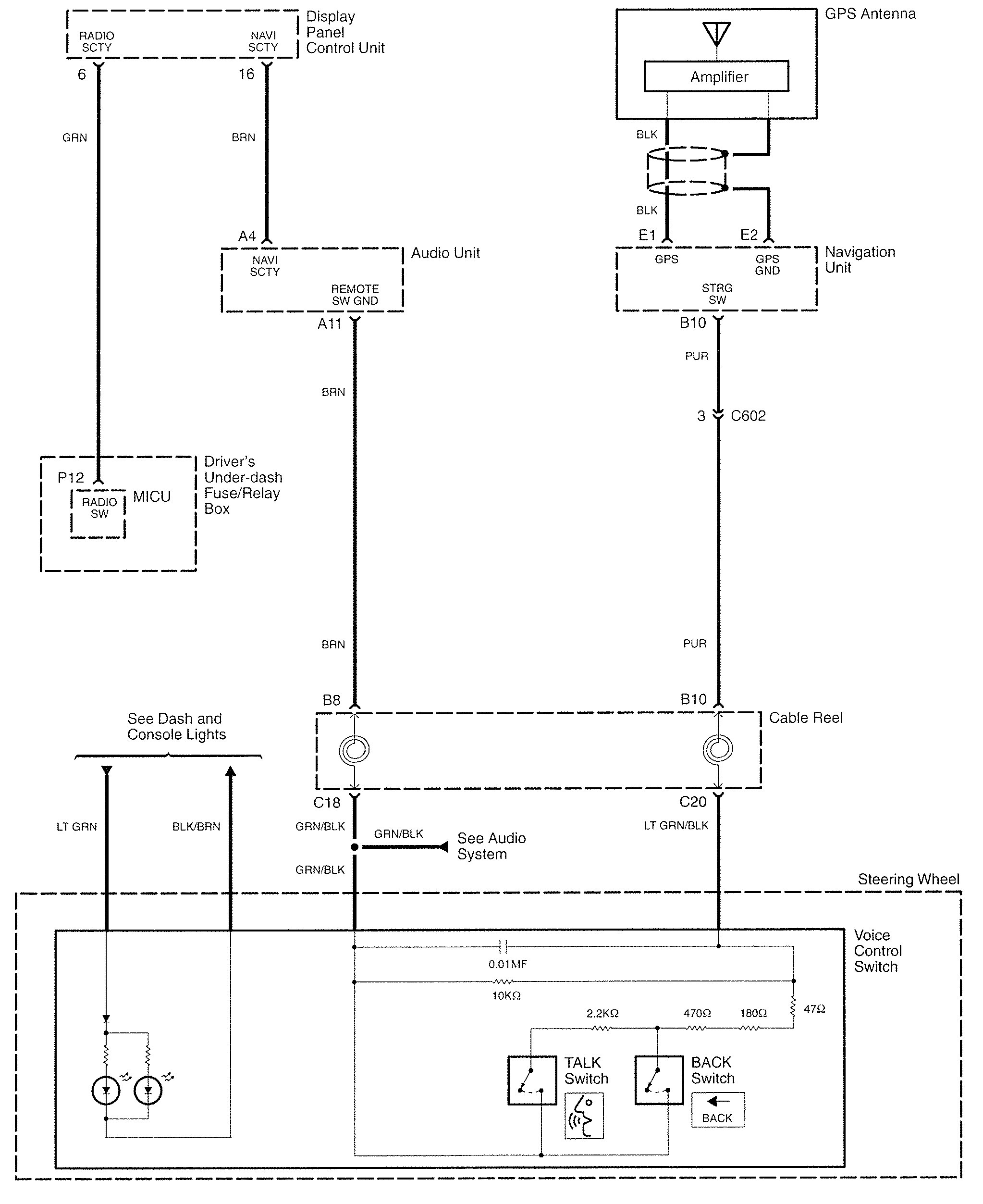

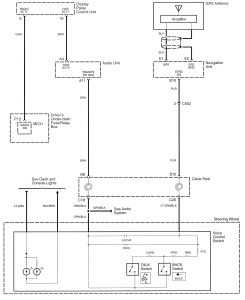

Acura RL - wiring diagram - navigation system (part 4)
Acura RL – wiring diagram – navigation system (part 4)

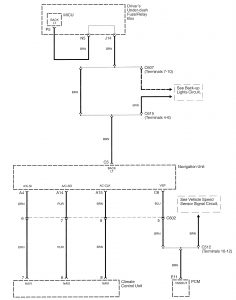

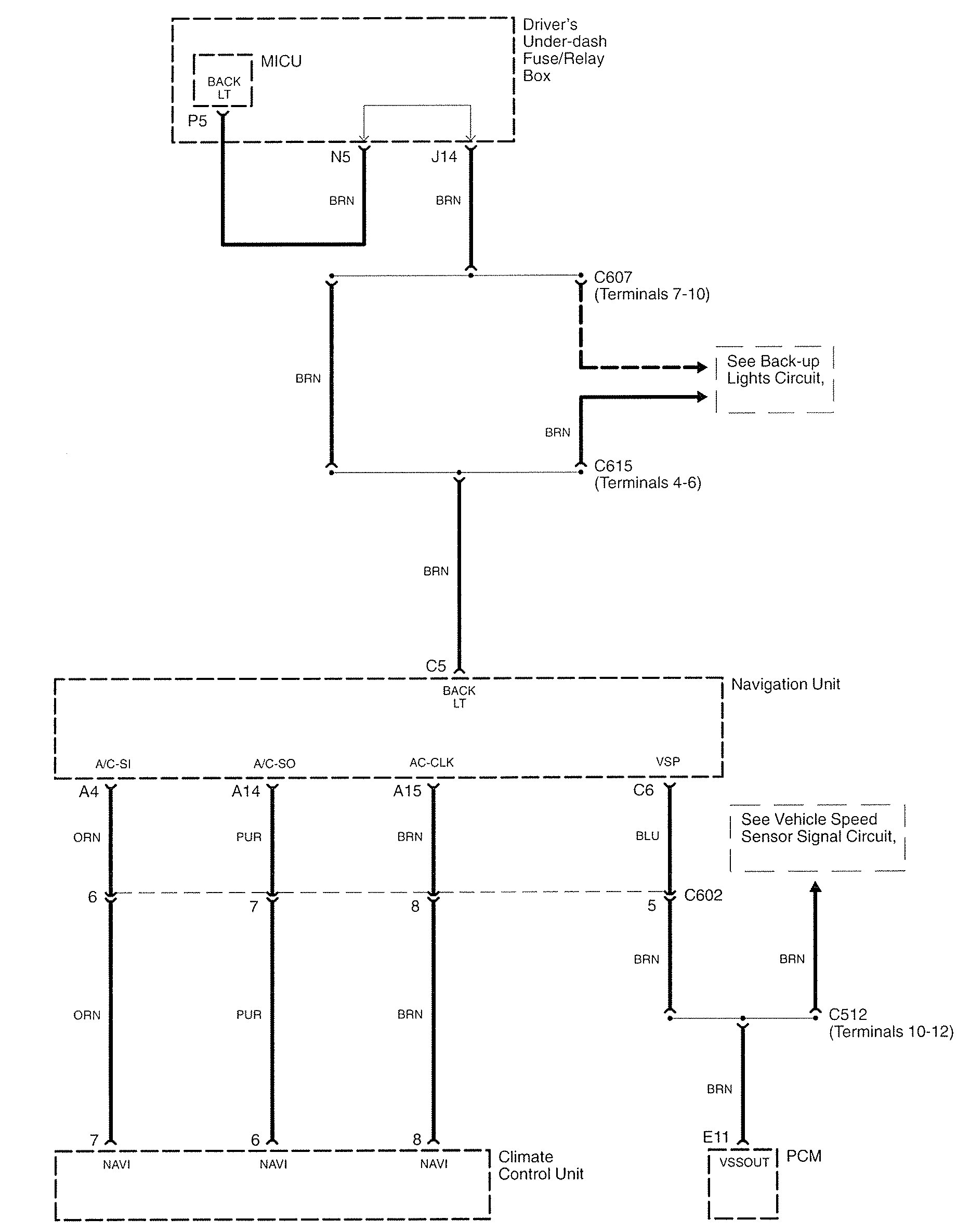

Acura RL - wiring diagram - navigation system (part 5)
Acura RL – wiring diagram – navigation system (part 5)

Version 2

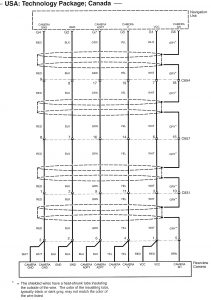

Acura RL - wiring diagram - navigation system (part 1)
Acura RL – wiring diagram – navigation system (part 1)

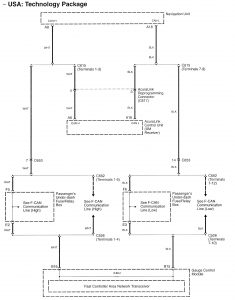

Acura RL - wiring diagram - navigation system (part 2)
Acura RL – wiring diagram – navigation system (part 2)

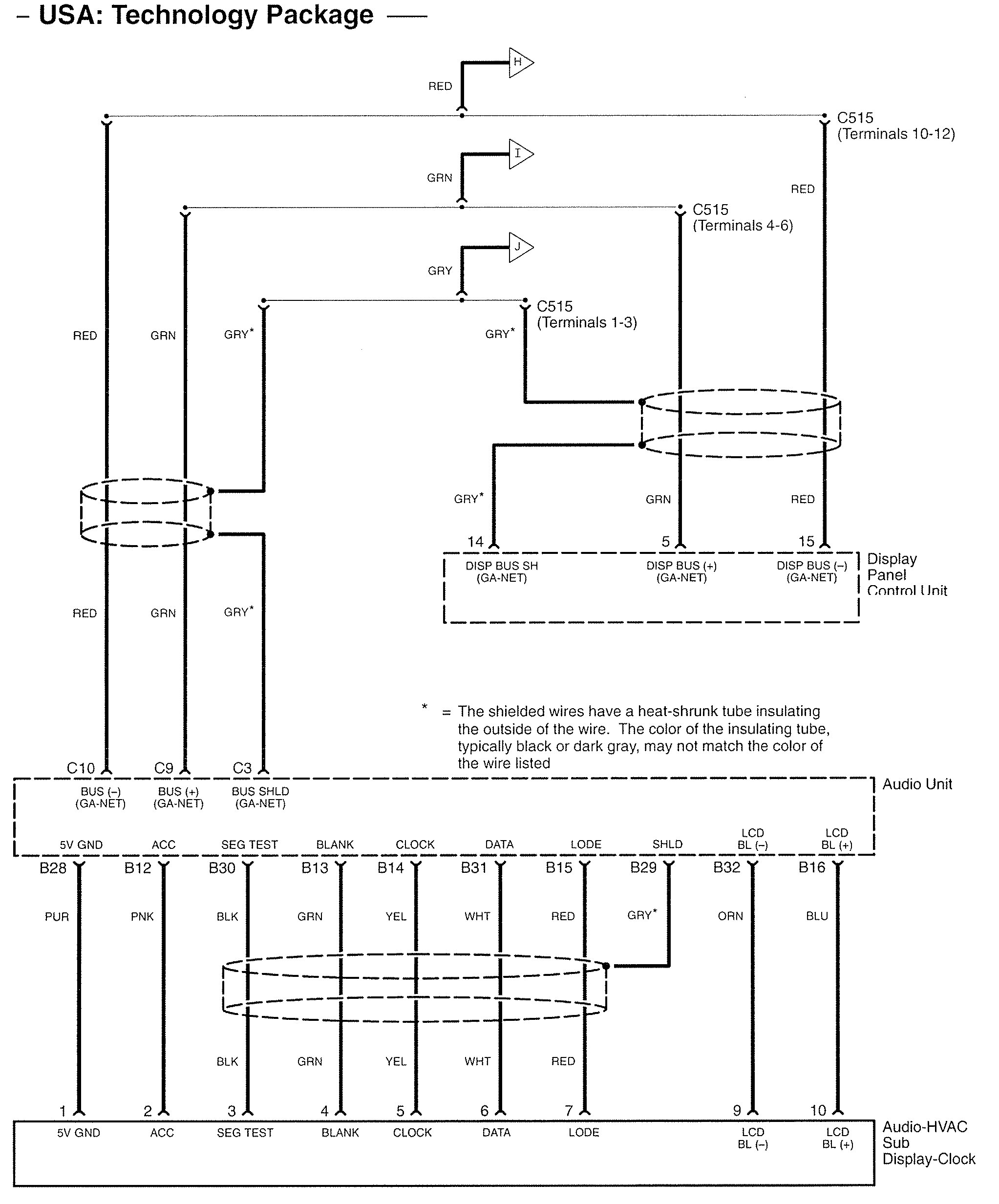

Acura RL - wiring diagram - navigation system (part 3)
Acura RL – wiring diagram – navigation system (part 3)

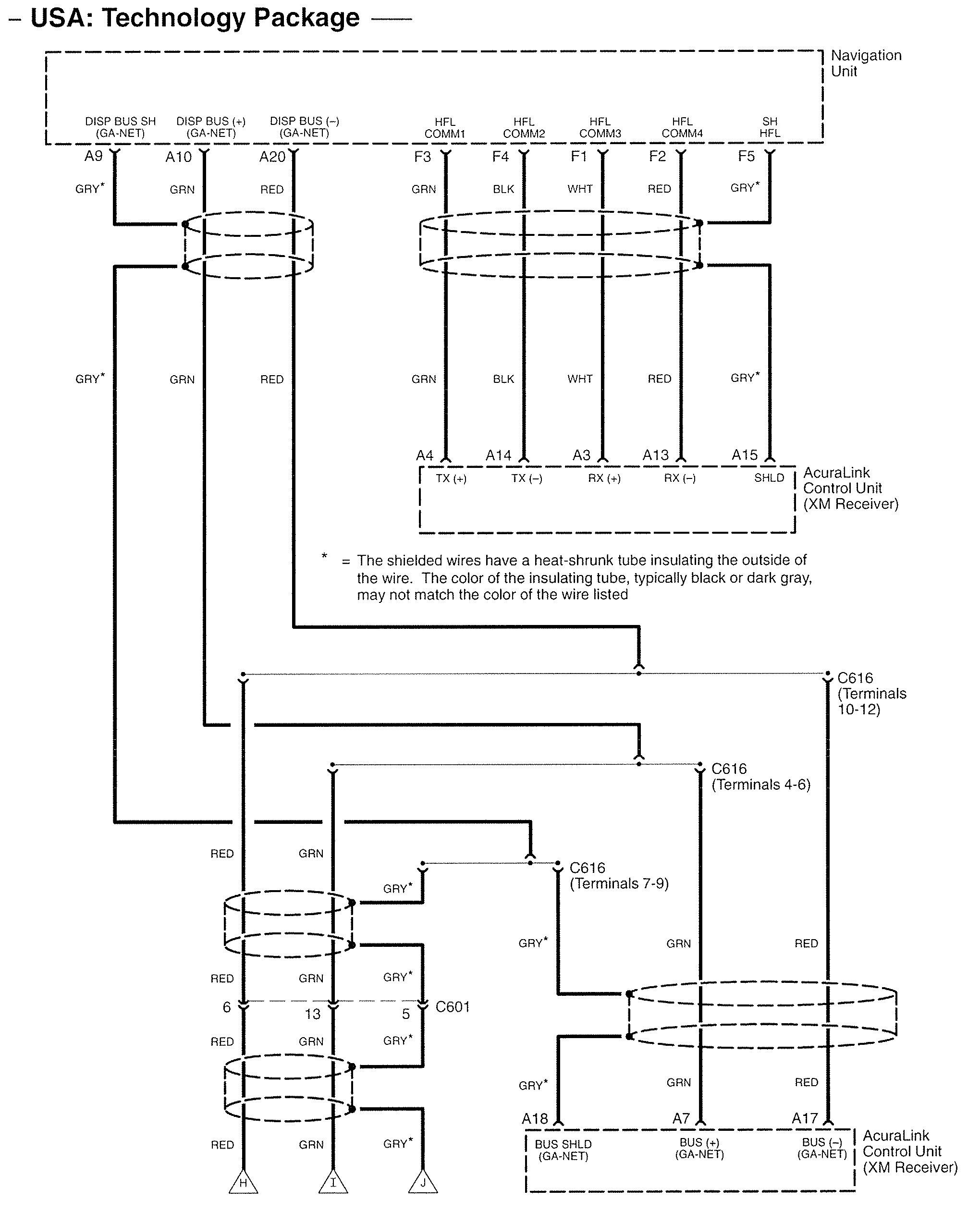

Acura RL - wiring diagram - navigation system (part 4)
Acura RL – wiring diagram – navigation system (part 4)

Version 3

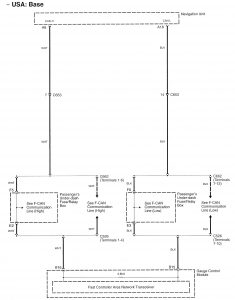

Acura RL - wiring diagram - navigation system (part 1)
Acura RL – wiring diagram – navigation system (part 1)

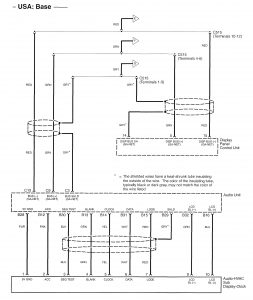

Acura RL - wiring diagram - navigation system (part 2)
Acura RL – wiring diagram – navigation system (part 2)

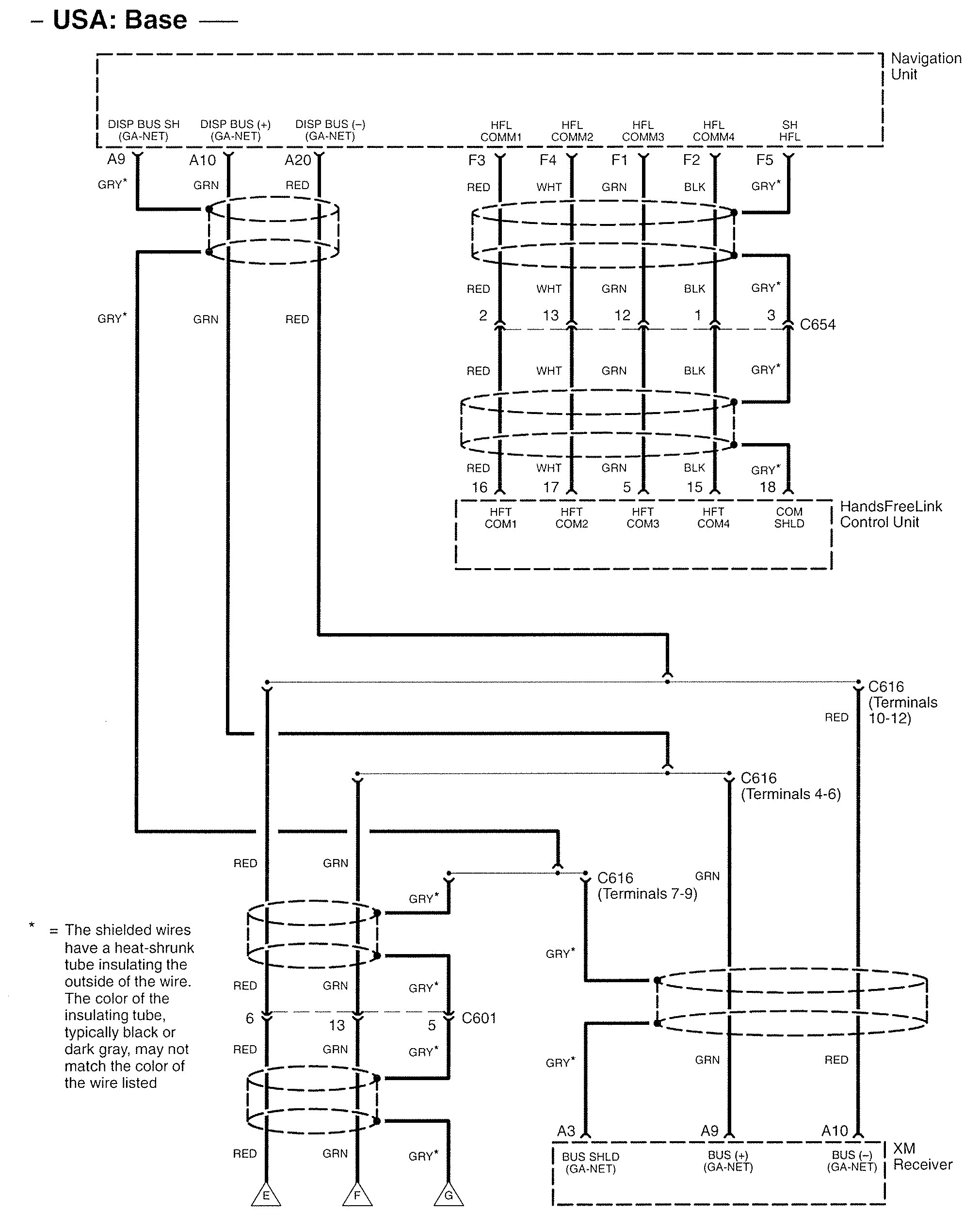

Acura RL - wiring diagram - navigation system (part 3)
Acura RL – wiring diagram – navigation system (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
