Ford Explorer U251 (2005 – 2010) – fuse box diagram
Year of production: 2005, 2006, 2007, 2008, 2009, 2010
Power Distribution Box

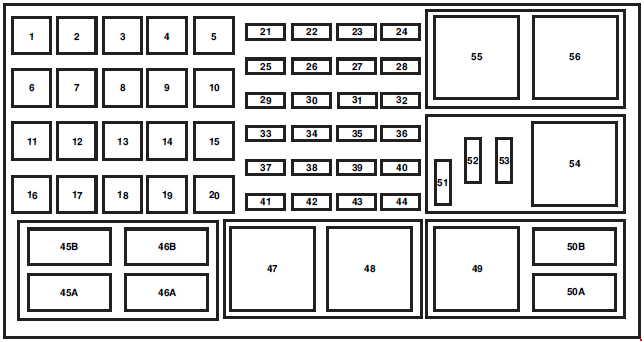

2005-2006

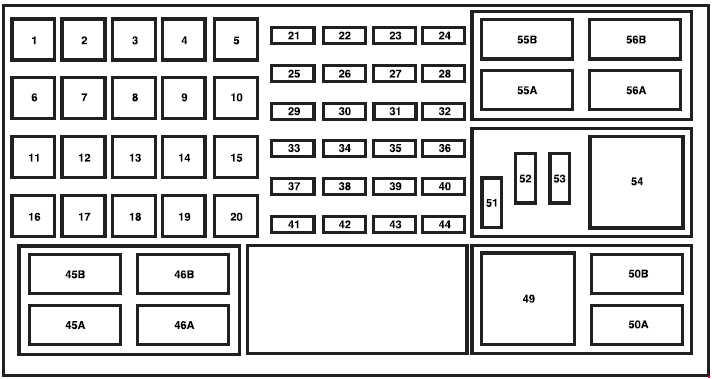

2007-2010
| Number | Ampers | Protected circuit |
| 1 | 50 | Battery feed 2 (passenger compartment fuse panel) |
| 2 | 50 | Battery feed 3 (passenger compartment fuse panel) |
| 3 | 50 | Battery feed 1 (passenger compartment fuse panel) |
| 4 | 30 | Fuel pump, Injectors |
| 5 | 30 | Third row seat (left) |
| 6 | 40 | 2007-2010: Anti-lock brake system (ABS) pump 2005-2006: IVD module |
| 7 | 40 | Powertrain control module (PCM) |
| 8 | — | — |
| 9 | — | — |
| 10 | 30 | Power seat (right) |
| 11 | 30 | Starter |
| 12 | 30 | Third row seat (right) |
| 13 | 30 | Trailer tow battery charger |
| 14 | 30 | Memory seats |
| 40 | Non-memory seats | |
| 15 | 40 | Rear defrost, Heated mirrors |
| 16 | 40 | Front blower motor |
| 17 | 30 | Trailer electronic brakes |
| 18 | 30 | Auxiliary blower motor |
| 19 | 30 | 2007-2010: Running boards |
| 20 | 30 | 2008-2010: Front wiper motor |
| 21 | 20 | Rear power point |
| 22 | 20 | Subwoofer |
| 23 | 20 | 4×4 |
| 24 | 10 | PCM – keep alive power, Canister vent |
| 25 | 20 | Front power point/Cigar lighter |
| 26 | 20 | 4×4 module (4.6L engine only) |
| 27 | 20 | 6R Transmission module (4.6L engine only) |
| 28 | 20 | Heated seats |
| 29 | 15 | 2007-2010: Headlamps (right) |
| 20 | 2005-2006: Headlamps (right) | |
| 30 | 25 | Rear wiper |
| 31 | 15 | Fog lamps |
| 32 | 5 | 2007-2010: Power mirrors |
| 33 | 30 | 2007-2010: ABS valve 2005-2006: IVD module |
| 34 | 15 | Headlamps (left) |
| 35 | 10 | A/C clutch |
| 36 | 20 | Console bin power point |
| 37 | 30 | 2008-2010: Driver window motor 2005-2007: Front wiper |
| 38 | 15 | 5R Transmission (4.0L engine only) |
| 39 | 15 | PCM power |
| 40 | 15 | Fan clutch, Positive crackcase ventilation (PCV) valve, A/C clutch relay |
| 41 | 15 | Satellite radio module, DVD, SYNC® |
| 42 | 15 | Redundant brake switch, Electronic vapor management valve, Mass air flow sensor, Heated exhaust gas oxygen (HEGO) sensor, EVR, Variable cam timing (VCT)1 (4.6L engine only), VCT2 (4.6L engine only), CMCV (4.6L engine only), Catalyst monitor sensor |
| 43 | 15 | Coil on plug (4.6L engine only), Coil tower (4.0L engine only) |
| 44 | 15 | Injectors |
| Delayed accessory relay |
||
| 45A | — | |
| 45B | 2005-2007: GCC fan relay | |
| 46A | — | |
| 46B | — | |
| 47 | 2005-2006: Front wiper relay | |
| 48 | 2005-2006:PCM relay | |
| 49 | Fuel pump relay | |
| 50A | Fog lamps relay | |
| 50B | A/C clutch relay | |
| 54 | Trailer battery charger relay | |
| 55 | Starter relay | |
| 55A | PCM relay | |
| 55B | Front wiper relay | |
| 56 | Blower relay | |
| 56A | Blower relay | |
| 56B | Starter relay | |
| Diode | ||
| 51 | — | |
| 52 | 2005-2007: A/C clutch (diode) | |
| 53 | 2008-2010:One touch integrated start (OTIS) (diode) | |
Passenger Compartment Fuse Panel
| Number | Ampers | Protected circuit |
| 1 | 20 | Moon roof, Adjustable pedals, DSM, Memory seats, Lumbar motor |
| 2 | 5 | Microcontroller power |
| 3 | 20 | Radio, Navigation amplifier, GPS module |
| 4 | 10 | 2007-2010: On-board diagnostic (OBD II) connector |
| 20 | 2005-2006: On-board diagnostic (OBD II) connector | |
| 5 | 5 | Moon roof, Power down back window, Door lock switch illumination (2008-2010), Auto dimming rear view mirror (2010), Rearview mirror with microphone (2008-2009) |
| 6 | 20 | Liftglass release motor, Door unlock/lock |
| 7 | 15 | Trailer stop/turn |
| 8 | 15 | Ignition switch power, Passive anti-theft system (PATS), Cluster |
| 9 | 2 | 6R Transmission control module/Powertrain control module (Ignition RUN/START), Fuel pump relay |
| 10 | 5 | Front wiper RUN/ACC relay in power distribution box (PDB) |
| 11 | 5 | Radio start |
| 12 | 5 | Rear wiper motor RUN/ACC, Trailer battery charge relay in PDB, Radio |
| 13 | 15 | Heated mirror, Manual climate rear defrost indicator |
| 14 | 20 | Horn |
| 15 | 10 | Reverse lamps |
| 16 | 10 | Trailer reverse lamps |
| 17 | 10 | Restraints control module, Passenger occupancy, PAD lamp (2006-2007) |
| 18 | 10 | Roll Stability Control™ (RSC) switch (2010), RSC (2010), 4×4 module, 4×4 switch, Heated seat switches, Reverse park aid (2010) IVD switch (2006-2009), IVD, Compass (2006-2009), Electrochromatic mirror (2006-2009), RSS module (2006-2009) |
| 19 | — | — |
| 20 | 10 | Climate control system, Brake shift, DEATC (2006-2009) |
| 21 | — | — |
| 22 | 15 | Brake switch, Bi-color stop lamps, High-mount brake lamp, All turn lamps |
| 23 | 15 | Interior lamps, Puddle lamps, Battery saver, Instrument illumination, HomeLink® |
| 24 | 10 | Cluster, Theft indicator light |
| 25 | 15 | Trailer tow park lamps |
| 26 | 15 | License plate/rear park lamp, Front park lamps, Manual climate |
| 27 | 15 | Tri-color stop lamps |
| 28 | 10 | Climate controls |
| CB1 | 25 | Circuit Breaker: Windows |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
