Abarth 500 (2008 – 2016) – fuse box diagram
Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

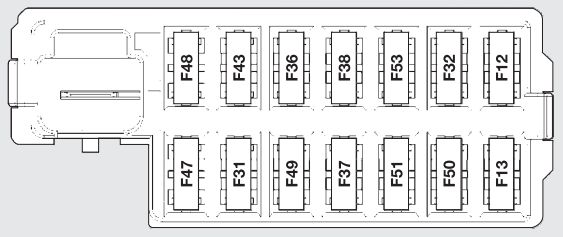

Fuse box in dashboard
| Fuse | Fuse | Ampere rating [A] |
| Supply of right low beam | F12 | 7,5 |
| Supply of left low beam and headlamp direction adjustment control unit | F13 | 7,5 |
| Engine compartment shunt control unit switch | F31 | 5 |
| Lights of front and rear ceiling lights, trunk and door courtesy lights | F32 | 7,5 |
| Diagnostic socket, car radio, climate control system, EOBD | F36 | 10 |
| Stop lights switch, instrument panel node | F37 | 5 |
| Door central locking | F38 | 20 |
| Windshield/Rear windshield washer pump | F43 | 15 |
| Driver side power window | F47 | 20 |
| Passenger side power window | F48 | 20 |
| Backlighting switches, electric mirrors | F49 | 5 |
| Air bag node | F50 | 7,5 |
| Car radio switch, convergence, climate control system, stop lights, clutch | F51 | 7,5 |
| Instrument panel node | F53 | 5 |

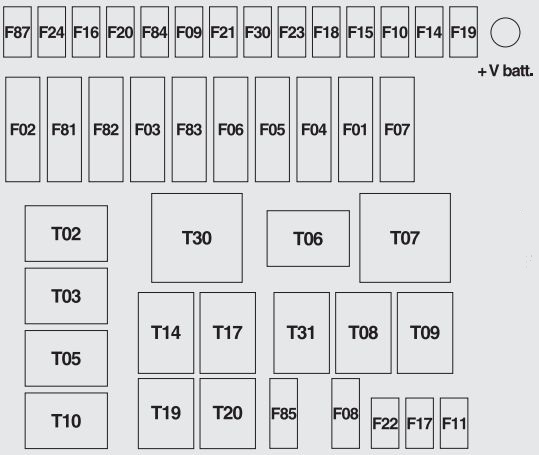

Fuse box in engine compartment
| Odbiorniki | Bezpiecznik | Prąd [A] |
| Climate control system fan | F08 | 30 |
| Spare | F09 | 15 |
| Buzzers | F10 | 15 |
| Engine control system (secondary loads) | F11 | 10 |
| Main headlights | F14 | 15 |
| Sunroof motor | F15 | 20 |
| +15 Engine control unit, relay coil T20 | F16 | 7,5 |
| Engine control unit | F17 | 10 |
| Spare | F18 | 7,5 |
| Engine control unit, relay T09 coil | F18 | 7,5 |
| Conditioner compressor | F19 | 7,5 |
| Heated rear window, mirror demisters | F20 | 30 |
| Fuel pump | F21 | 15 |
| Ignition coil | F22 | 15 |
| Engine control unit | F22 | 20 |
| Braking system (control unit, valves) | F23 | 20 |
| +15 Braking system, electrical driving, yaw sensor | F24 | 7,5 |
| Fog headlights | F30 | 15 |
| Spare | F84 | 10 |
| Front socket (with or without cigar lighter plug) | F85 | 15 |
| +15 for backing lights, T02, T05, T14 and T19 relay coils | F87 | 7,5 |
| Description | Relay | Ampere rating [A] |
| Main headlights | T02 | 20 |
| Buzzers | T03 | 20 |
| Conditioner compressor | T05 | 20 |
| One-speed engine cooling fan – Low speed engine cooling fan | T06 | 30 |
| High-speed engine cooling fan | T07 | 50 |
| Climate control system fan | T08 | 30 |
| Engine control system (main relay) | T09 | 30 |
| Spare | T10 | 20 |
| Fog headlights | T14 | 20 |
| Fuel pump | T17 | 30 |
| Demisting | T19 | 30 |
| Spare | T20 | 30 |
| Spare | T30 | 50 |
| Front socket (with or without cigar lighter plug) | T51 | 30 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
