Acura CL (1997 – 1999) – wiring diagrams – fuse panel
Year of productions: 1997, 1998, 1999

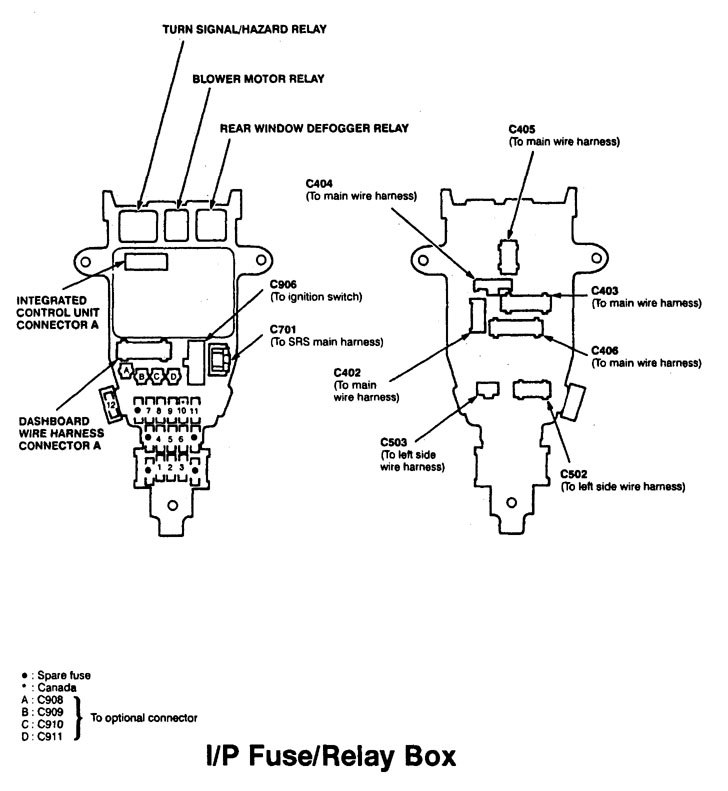

Fuse panel
| Fuse number | Fuse name | Ampere rating [A] | Component or circuit protected |
| 1 | BACK·UP LIGHTS, METER LIGHTS, CLOCK, SECURITY | 10 | Gauge assembly, Back-up lights, Clock, Vehicle speed sensor (VSS), Shill loCk solenoid, Integrated control unit, Keyless/security control unit |
| 2 | FUEL PUMP | 15 | PGM·FI main relay, SRS unit |
| 3 | SRS | 10 | SRS unit |
| 4 | ECU, EAT ECU CRUISE CONTROL FAN TIMER | 7,5 | Charging system,Radiator tan control module, Cruise control, PGM·FI, TCM (3.0L) |
| 5 | IGN COIL | 15 | Ignition (3.0L) |
| 6 | WIPER WASHER | 30 | Wiper/washer, Integrated control unit |
| 7 | R/C MIRROR (HEATED MIRROR) HEATED SEAT) | 7,5 | Anti-lock brake system (ABS), Power mirrors, Seat heaters |
| 8 | HEATER CONTROL RELAY, A/C CLUTCH RELAY, COOLING FAN RELAY | 7,5 | Air delivery, A/C compressor controls, Fans, Rear window defogger |
| 9 | STARTER SIGNAL | 7,5 | Gauge assembly, PGM·FI main relay, Powertrain or Engine control module (PCM or ECM), Starter cut relay, A/T gear position switch or Clutch interlock switch |
| 10 | (DAY LIGHTS) | 7,5 | Daytime running lights control unit (Canada) |
| 11 | RADIO AUDIO AMPLIFER | 10 | Cigarette lighter relay, Stereo amplifier (3.0L) |
| 12 | TURN SIGNALS | 7,5 | Turn signal/hazard relay |

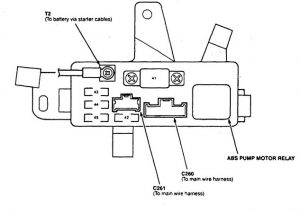

Engine compartment ABS Fuse/Relay box
engine compartment ABS block
| Fuse number | Fuse name | Ampere rating [A] | Component or Circuit protected |
| 41 | ABS MOTOR | 40 | ABS pump motor relay |
| 42 | ABS UNIT | 10 | ABS control unit |
| 43 | ABS B1 | 20 | ABS front fall·safe relay |
| 44 | ABS B2 | 15 | ABS rear fail-safe relay, ABS control unit |
| 45 | — | — | — |

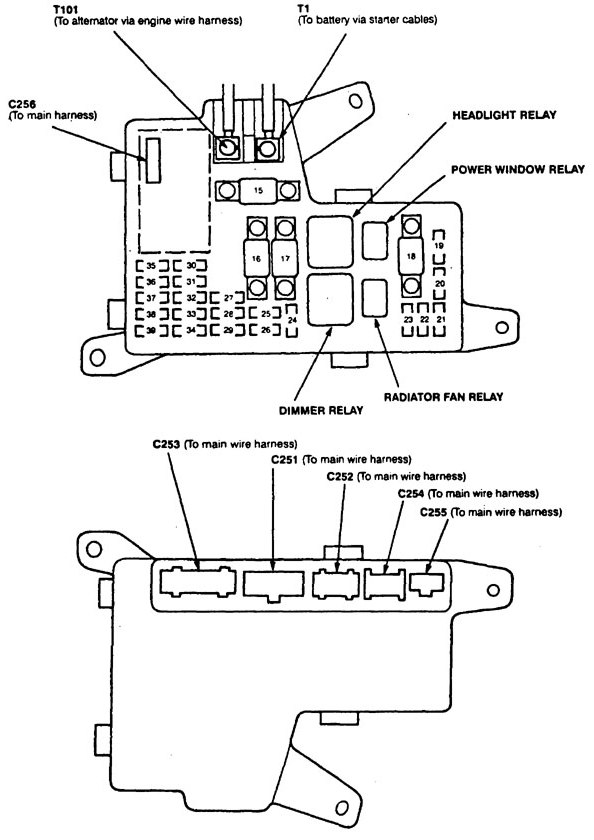

Engine compartment fuse/relay box
| Fuse number | Fuse name | Ampere rating [A] | Component or Circuit protected |
| 15 | BATTERY | 100 | Power distribution |
| 16 | REAR DEFROSTER | 40 | Rear window defogger |
| 17 | HEATER BLOWER | 40 | Blower motor relay |
| 18 | IGN SW | 50 | Ignition switch (BAT) |
| 19 | L-HEADLIGHT | 20 | Left headlight, Daytime running lights control unit (Canada), Hi beam indicator |
| 20 | R-HEADLIGHT | 20 | Right headlight, Daytime running lights control unit (Canada) |
| 21 | COOLING FAN | 20 | Radiator fan relay |
| 22 | (HEATED SEAT) | 15 | Seat heater main relay |
| 23 | RUNNING LIGHT | 10 | Daytime running lights control unit Canada) |
| 24 | — | — | — |
| 25 | — | — | — |
| 26 | POWER WINDOW FR-R | 20 | Passenger’s front power window motor, Moonroof control unit |
| 27 (2.2L) | POWER SEAT | 20 | Driver’s power seat motors |
| 27 (3.0L) | POWER SEAT FR HEIGHT | 15 | Driver’s power seat motors |
| 28 | POWER WINDOW FR-L | 20 | Driver’s power window motor |
| 29 | SUN ROOF | 30 | Moonroof motor |
| 30 | STOP LIGHT HORN | 20 | Horns, Brake lights, Key interlock solenoid (A/T), ABS control unit, Cruise control, PGM-FI, TCM (3.0L A/T) |
| 31 (3.0L) | POWER SEAT RR HEIGHT RECLINE | 20 | Driver’s power seat motors, Power seat control unit |
| 32 | SMALL LIGHT | 15 | Dash lights, Parking lights, Taillights, License plate lights |
| 33 | ECU | 15 (20 2.2L A/T) | PGM-FI main relay |
| 34 | CONDENSER FAN | 15 (20 3.0L) | Radiator control module (3.3L), Condenser fan relay, A/C compressor clutch relay |
| 35 | HAZARD | 15 | Hazard warning switch |
| 36 | RADIO CIGAR LIGHTER | 15 | Cigarette lighter, Audio unit Data link connector (DLC) |
| 37 | INTERIOR LIGHT | 7,5 | Integrated control unit, Trunk light, Courtesy lights, Ceiling light, Sportlights |
| 38 | SECURITY DOOR LOCK | 15 | Keyless/security control unit |
| 39 | BACK-UP (RADIO) (FAN TIMER 3.0L) | 7,5 | Powertrain or Engine control module (PCM or ECM), Clock, Audio unit, Security indicator, TCM (3.0L), Radiator fan control module (3.0L) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
