Acura CL (1997 – 1999) – wiring diagrams – horn

Acura CL (1997 – 1999) – wiring diagrams – horn

Year of productions:  1997, 1998, 1999

Horn

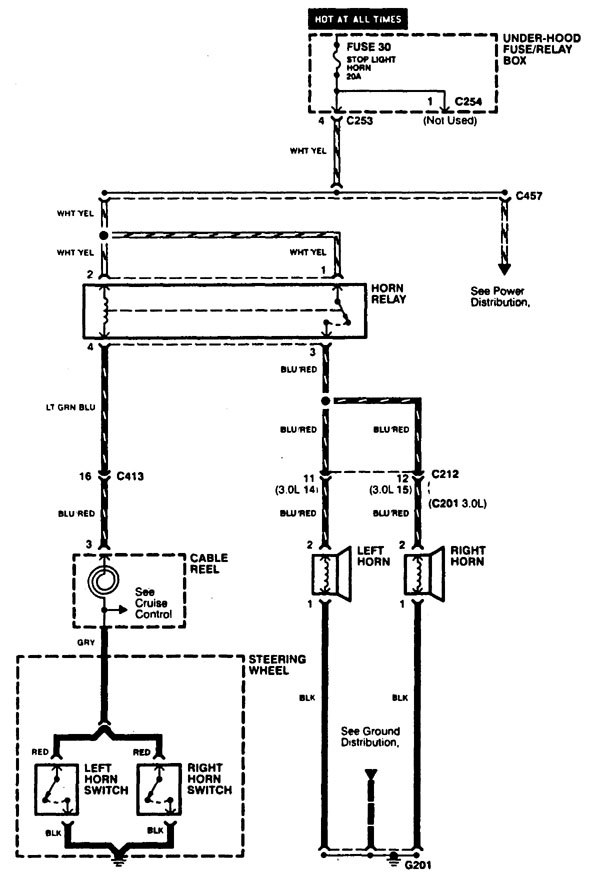

Acura CL - wiring diagram - horn
Acura CL – wiring diagram – horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
