Acura CL (1997) – wiring diagrams – power locks

Acura CL (1997) – wiring diagrams – power locks

Year of productions:  1997

Power locks

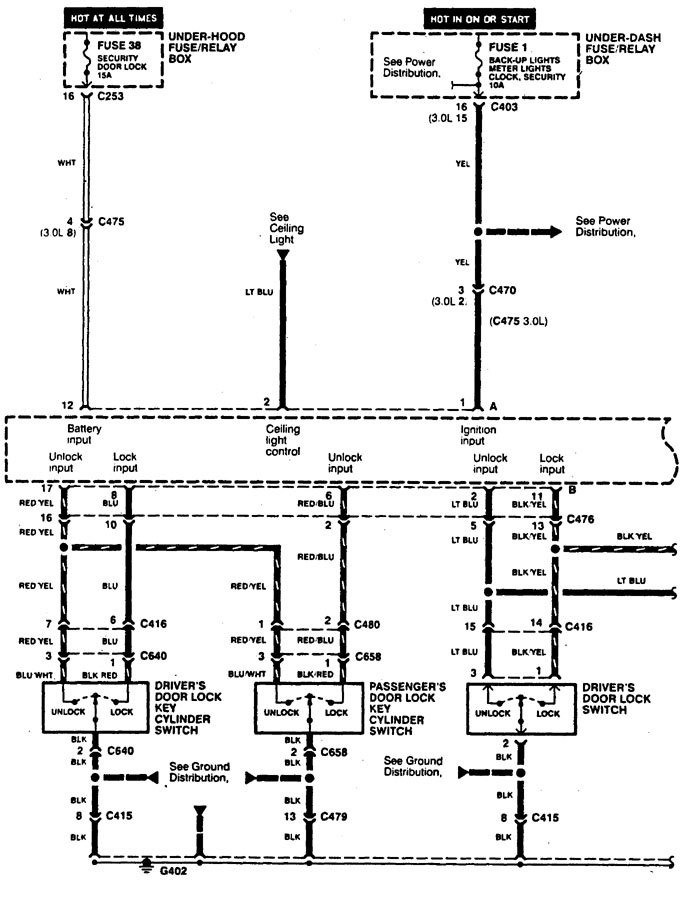

Acura CL - wiring diagram - power locks (part 1)
Acura CL – wiring diagram – power locks (part 1)

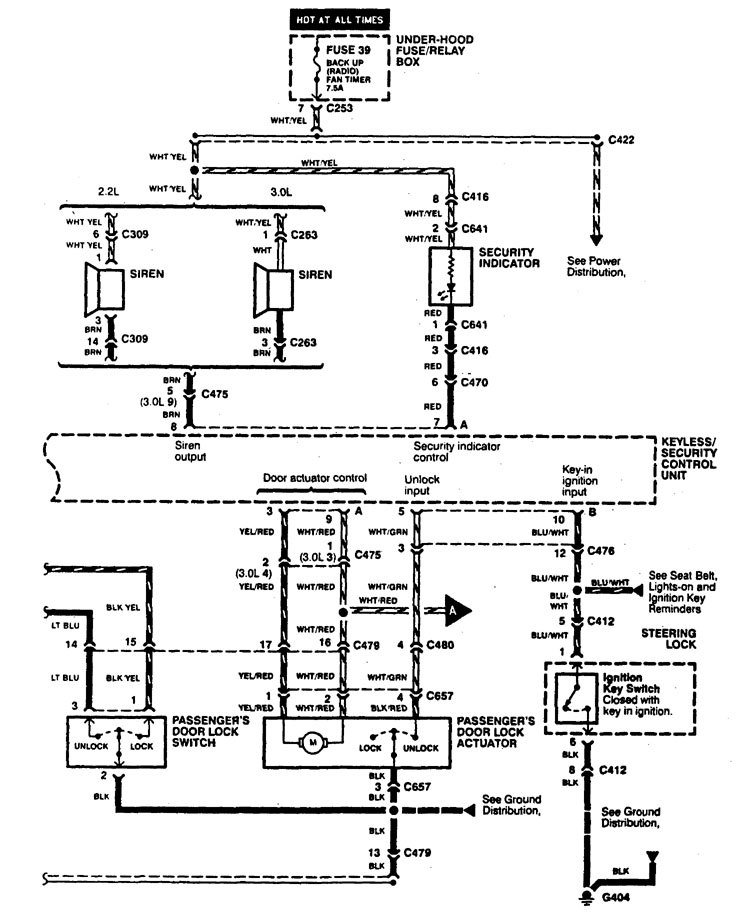

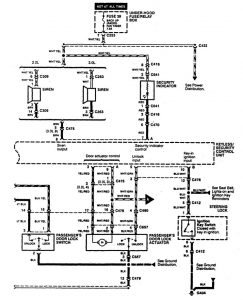

Acura CL - wiring diagram - power locks (part 2)
Acura CL – wiring diagram – power locks (part 2)

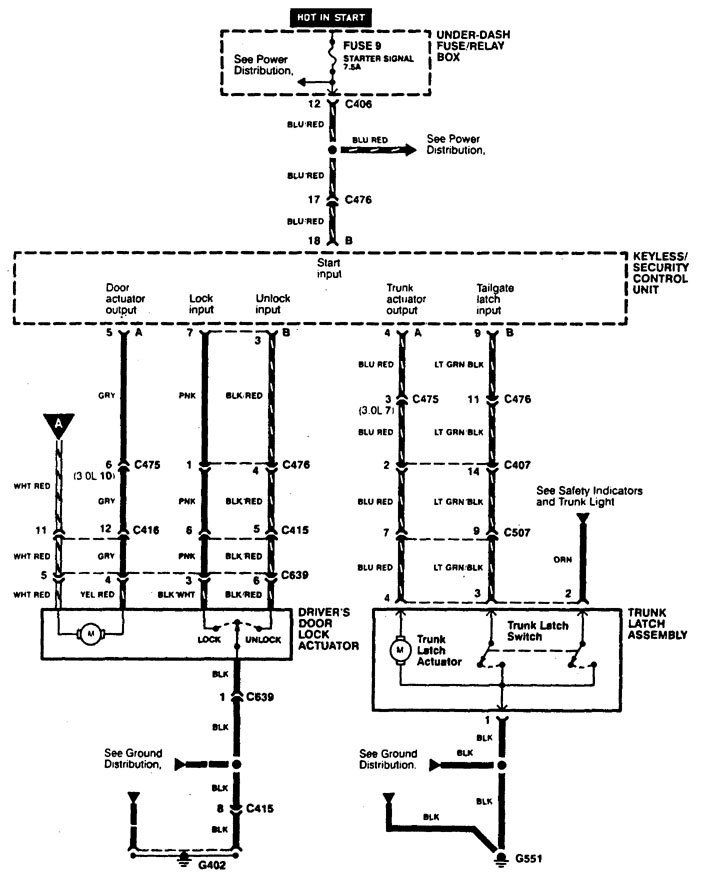

Acura CL - wiring diagram - power locks (part 3)
Acura CL – wiring diagram – power locks (part 3)

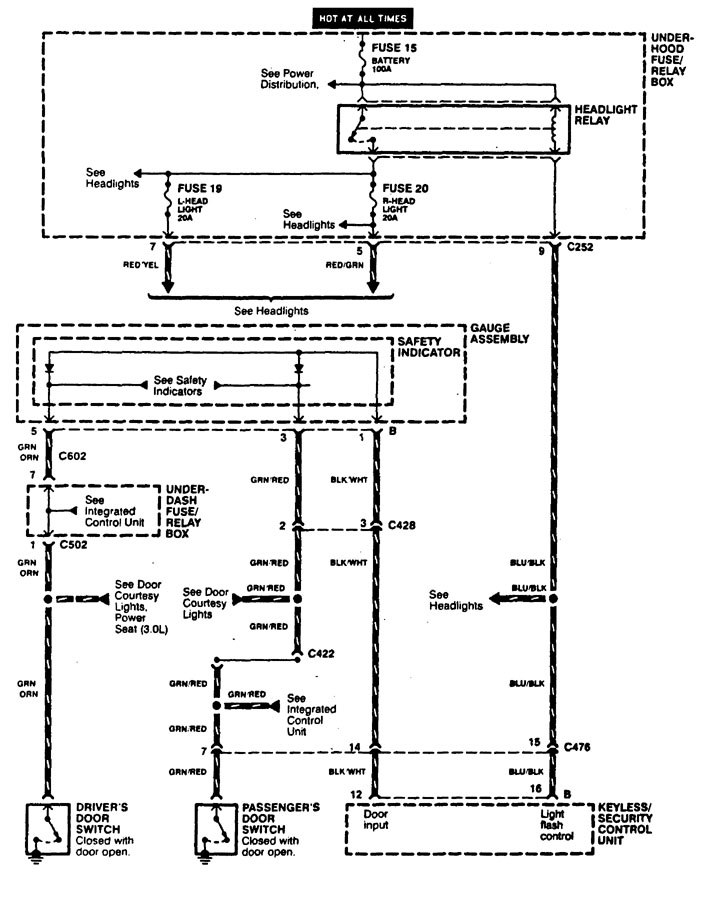

Acura CL - wiring diagram - power locks (part 4)
Acura CL – wiring diagram – power locks (part 4)
Acura CL - wiring diagram - power locks (part 5)
Acura CL – wiring diagram – power locks (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
