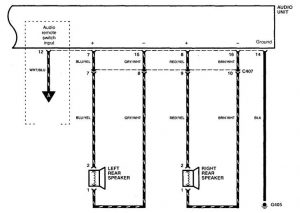

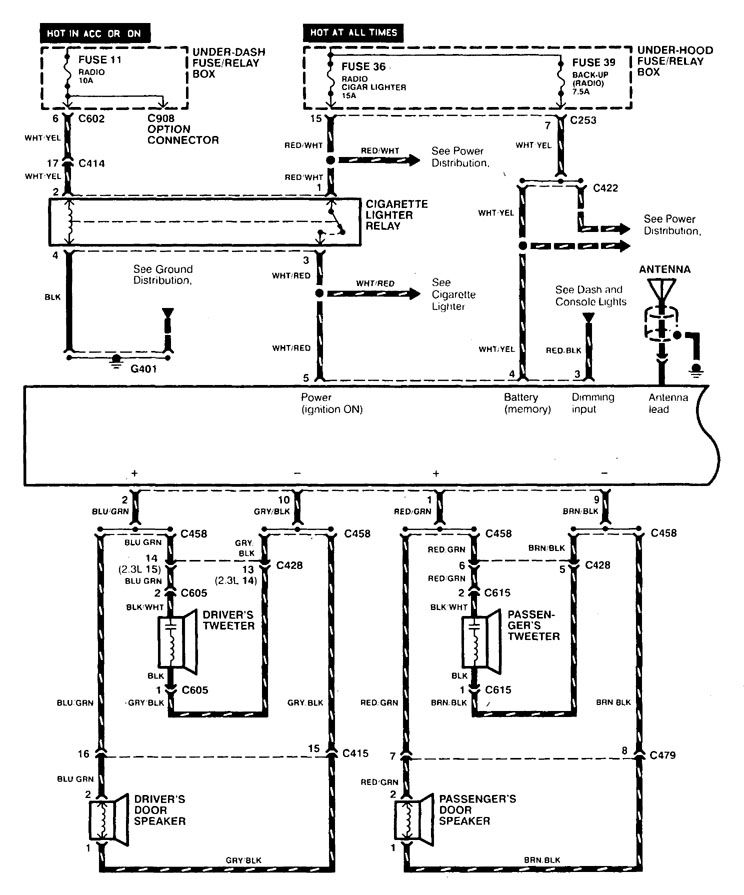

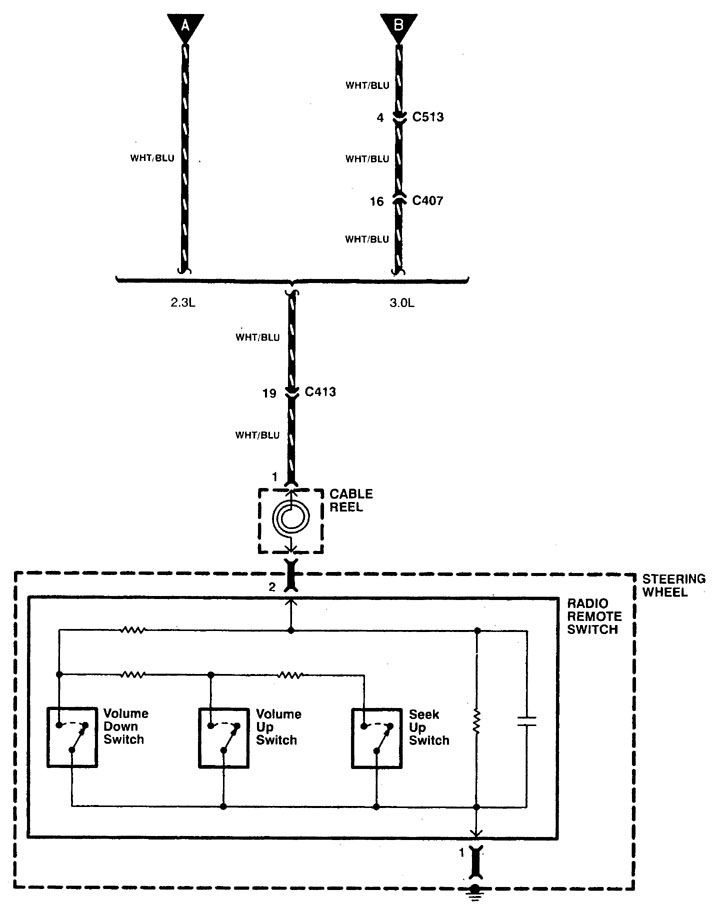

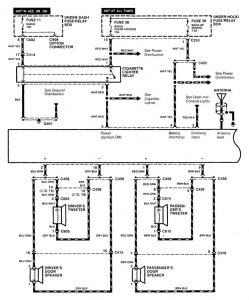

Acura CL (1998 – 1999) – wiring diagrams – audio

Mercedes-Benz 560SEL (1990 – 1991) – wiring diagrams – antenna Year of productions:  1990, 1991 Antenna WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volvo 960 (1992 – 1994) – wiring diagrams – cooling fans Year of productions:  1992, 1993, 1994 Cooling fans WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]

Mercedes-Benz 420SEL (1991) – wiring diagrams – hazard lamp Year of productions:  1991 Hazard lamp WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
