Year of productions:  1998, 1999

Instrumentation

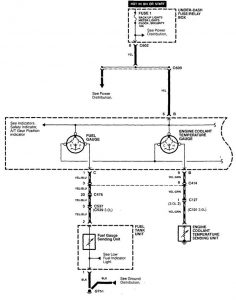

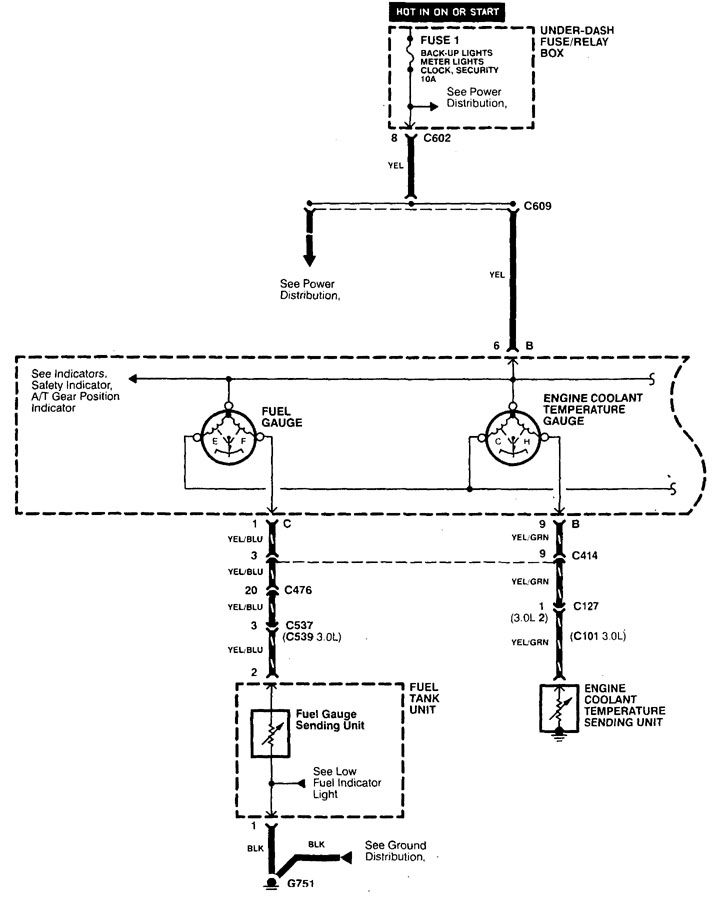

Acura CL - wiring diagram - instrumentation (part 1)
Acura CL – wiring diagram – instrumentation (part 1)

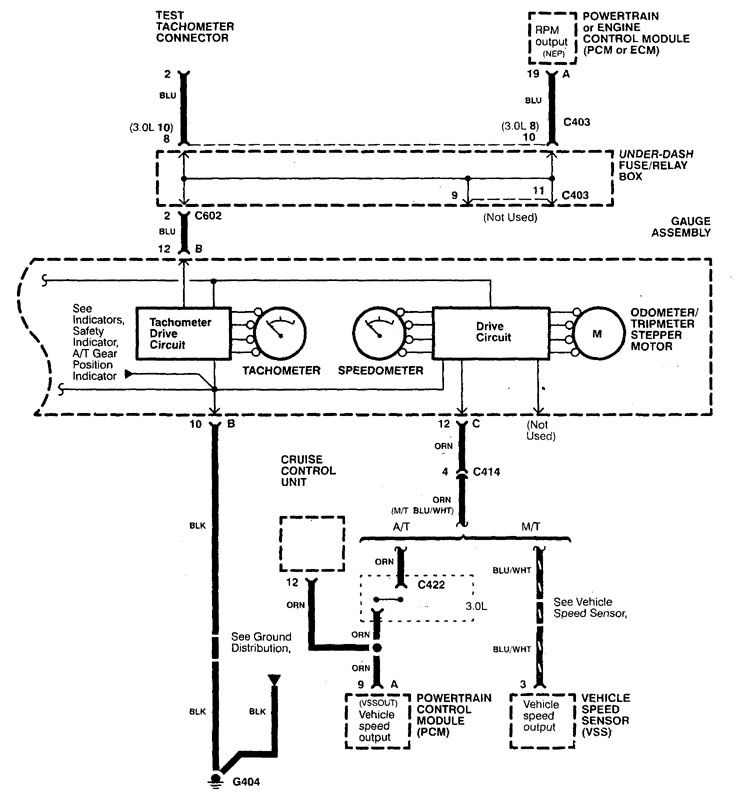

Acura CL - wiring diagram - instrumentation (part 2)
Acura CL – wiring diagram – instrumentation (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
