Acura Integra (1986 – 1987) – wiring diagrams – HVAC control

Acura Integra (1986 – 1987) – wiring diagrams – HVAC control

Year of productions: 1986, 1987

HVAC control

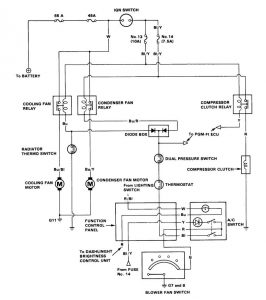

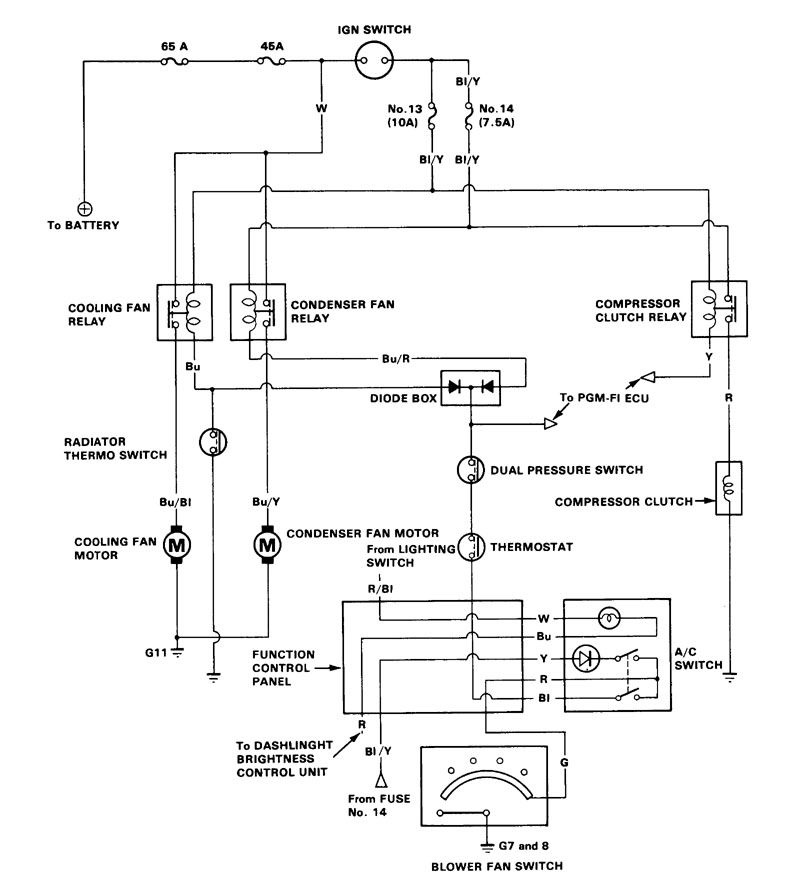

Acura Integra – wiring diagram – HVAC control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
