Acura Integra (1989) – wiring diagrams – ground distribution

Acura Integra (1989) – wiring diagrams – ground distribution

Year of productions: 1989

Ground distribution

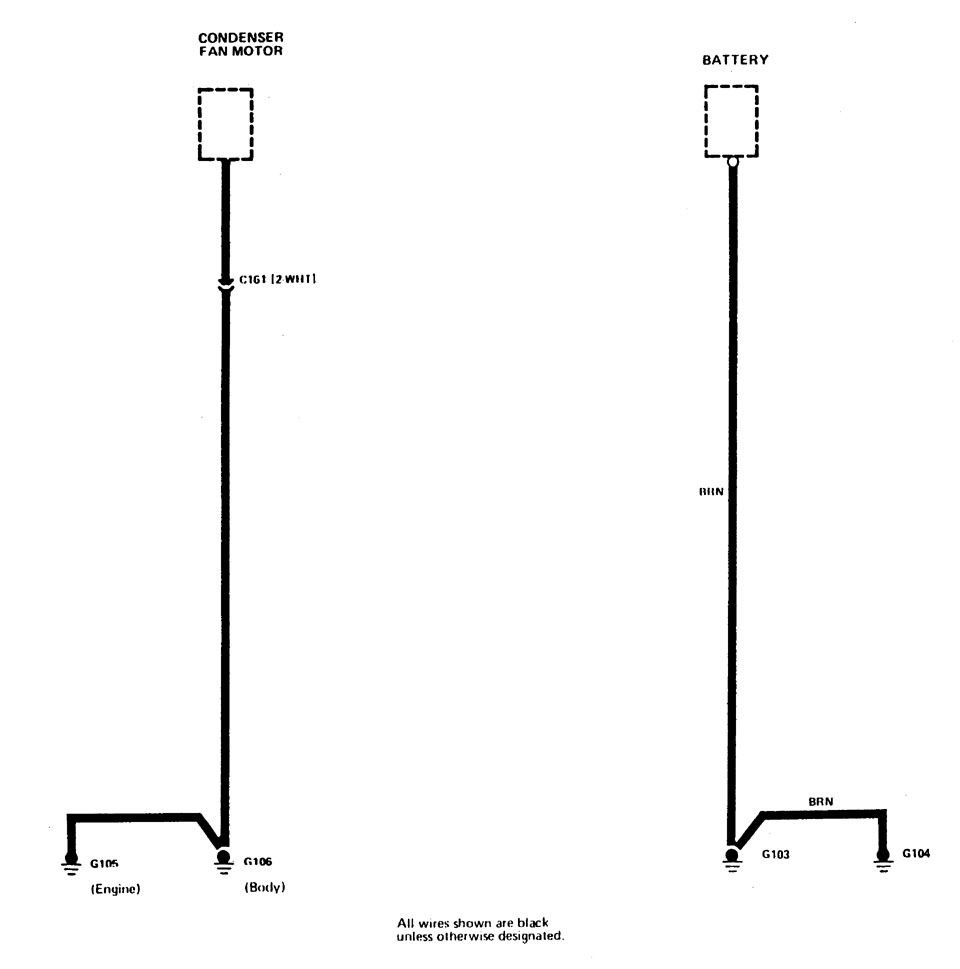

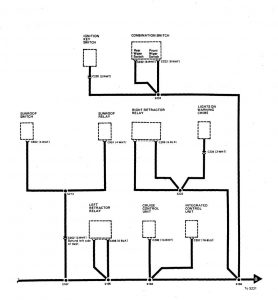

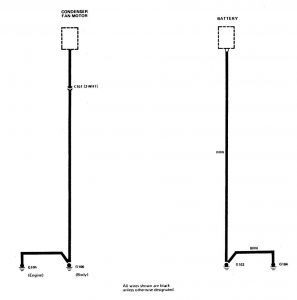

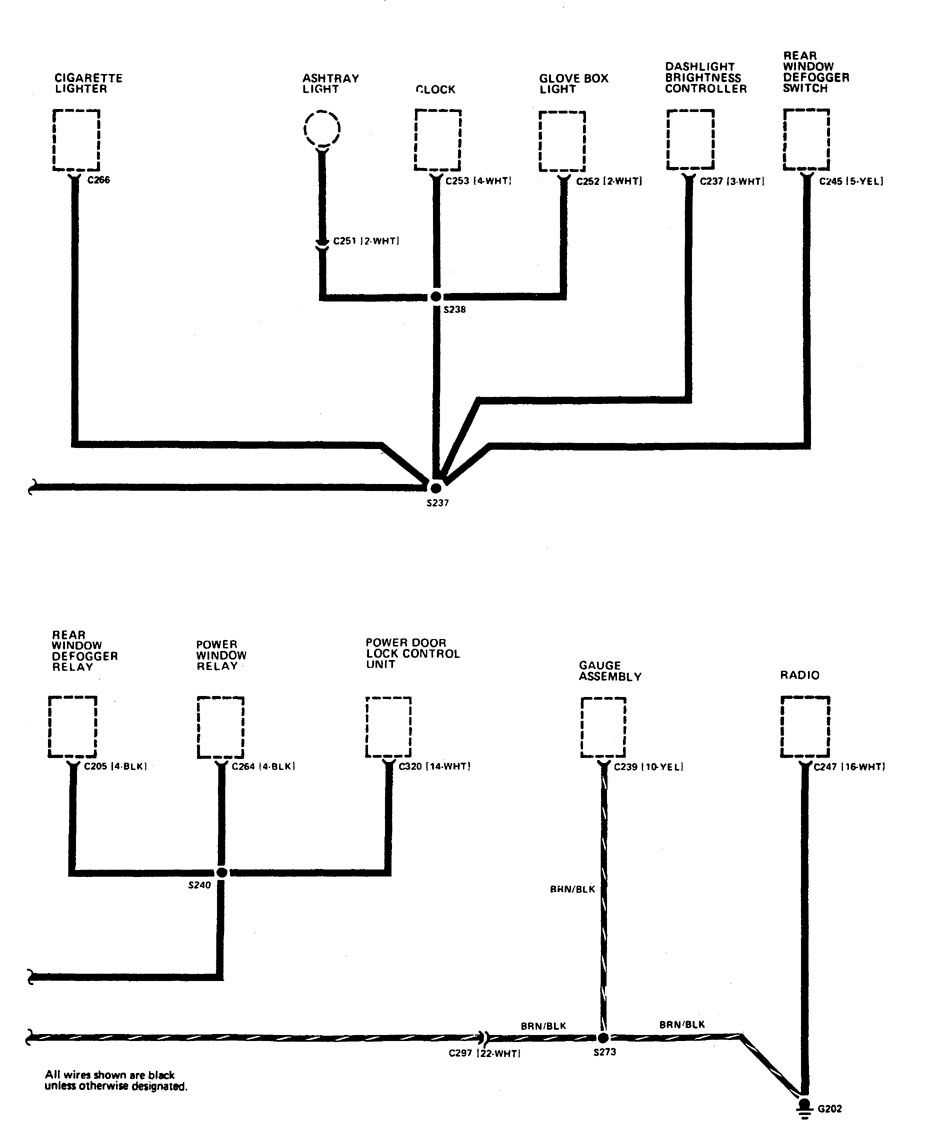

Acura Integra – wiring diagram – ground distribution

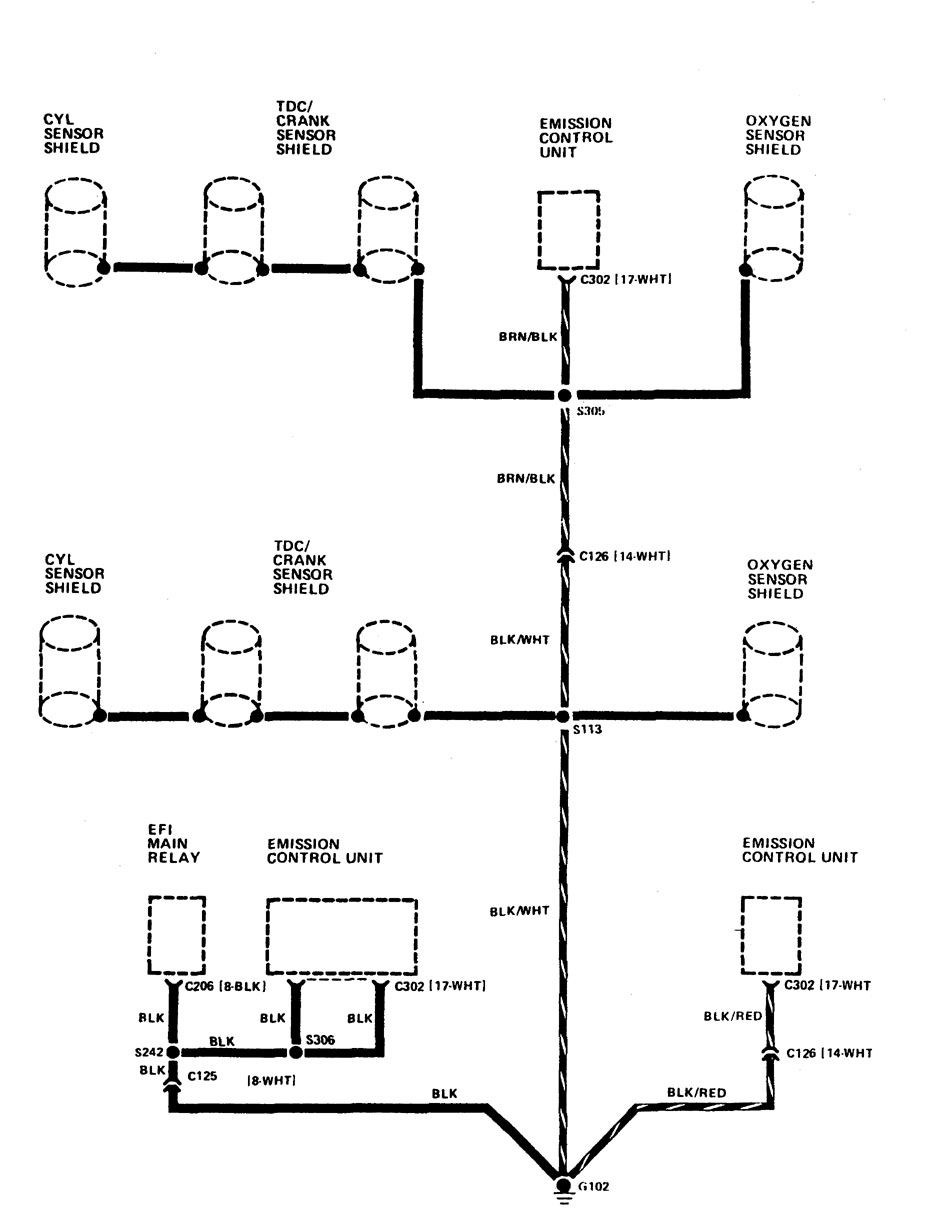

Acura Integra – wiring diagram – ground distribution

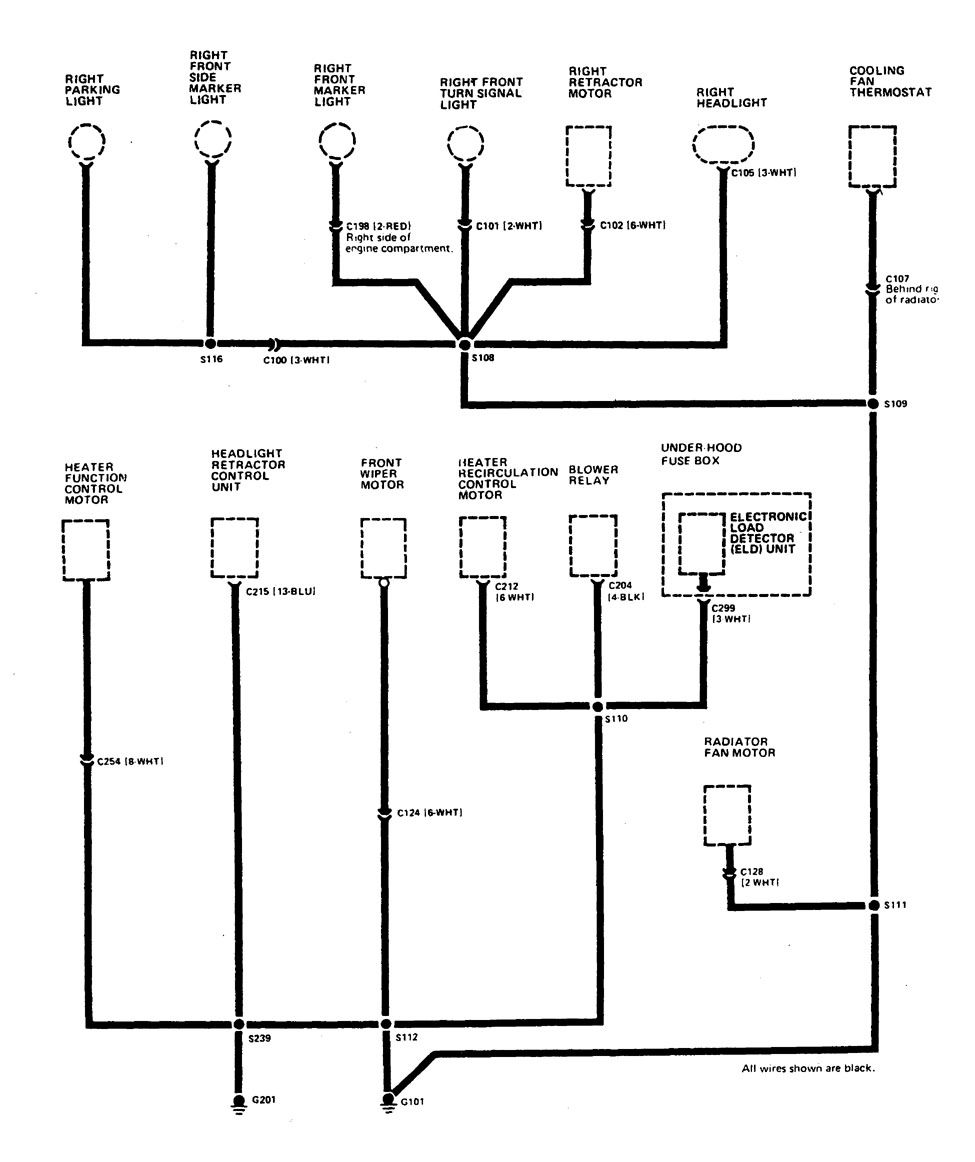

Acura Integra – wiring diagram – ground distribution

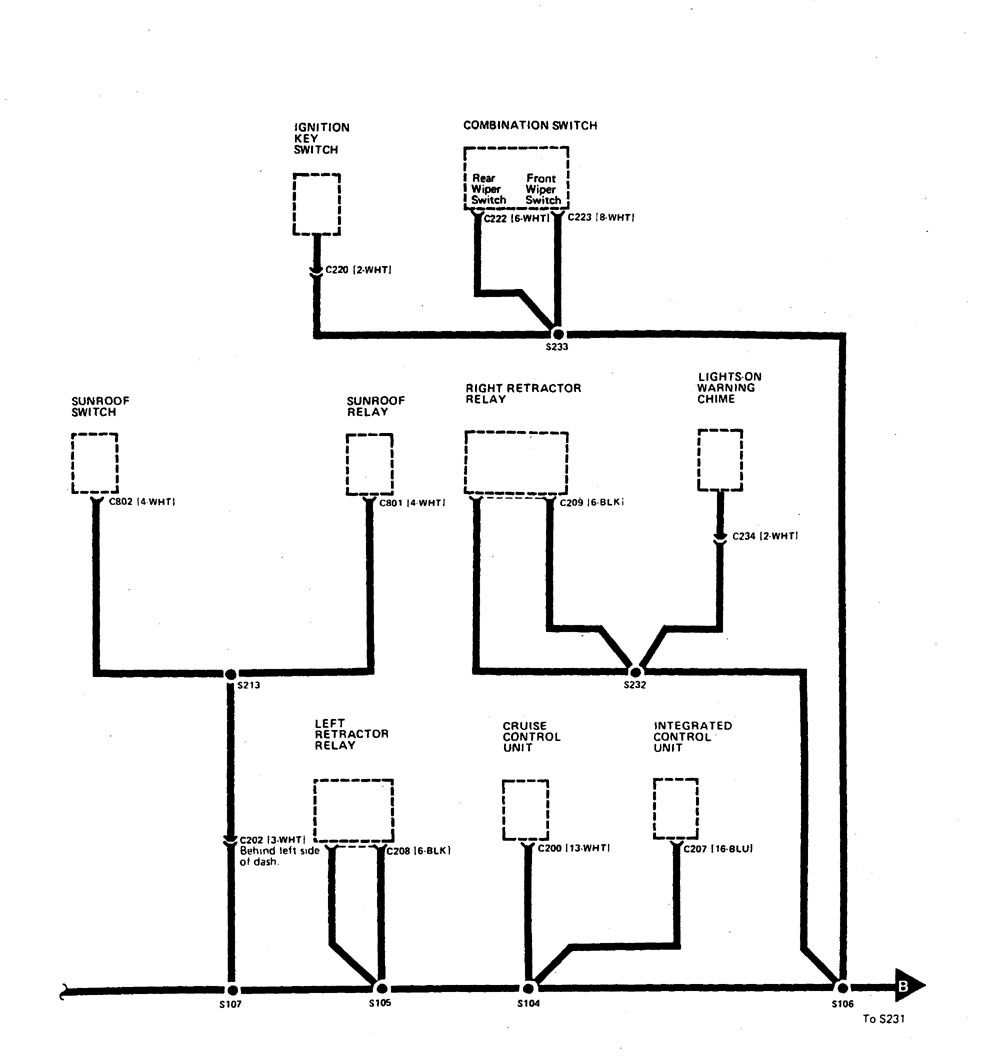

Acura Integra – wiring diagram – ground distribution

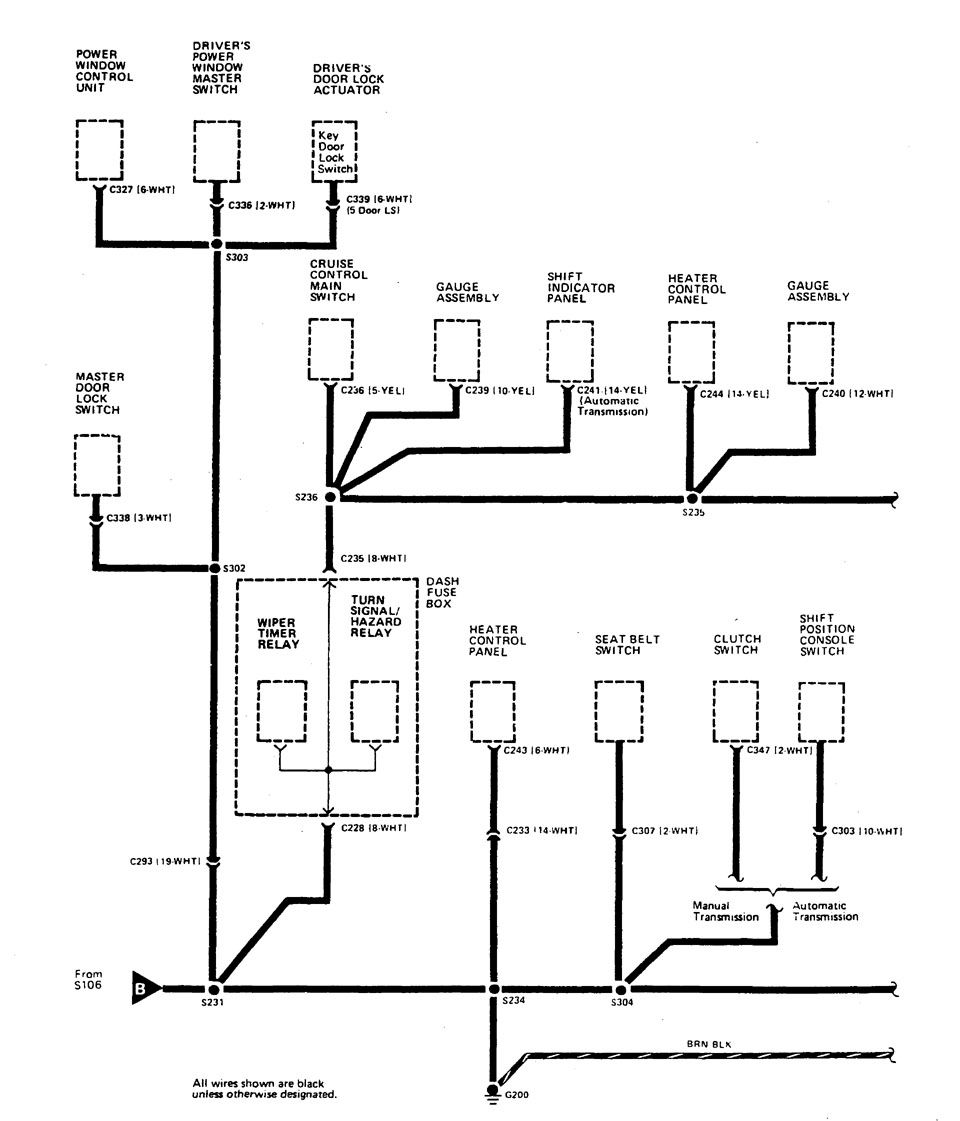

Acura Integra – wiring diagram – ground distribution

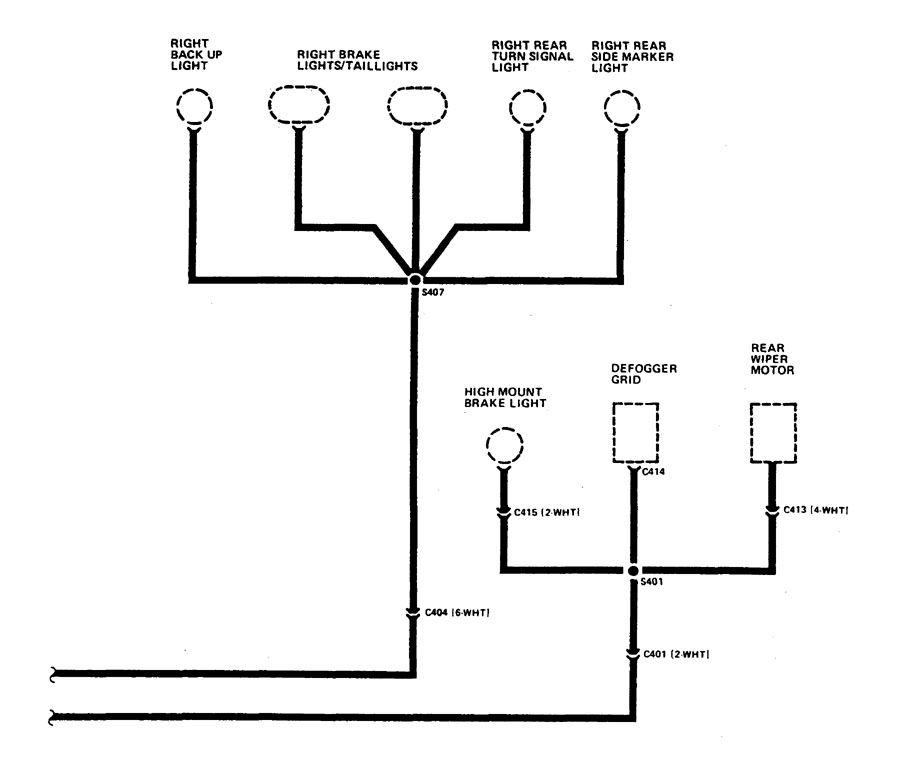

Acura Integra – wiring diagram – ground distribution

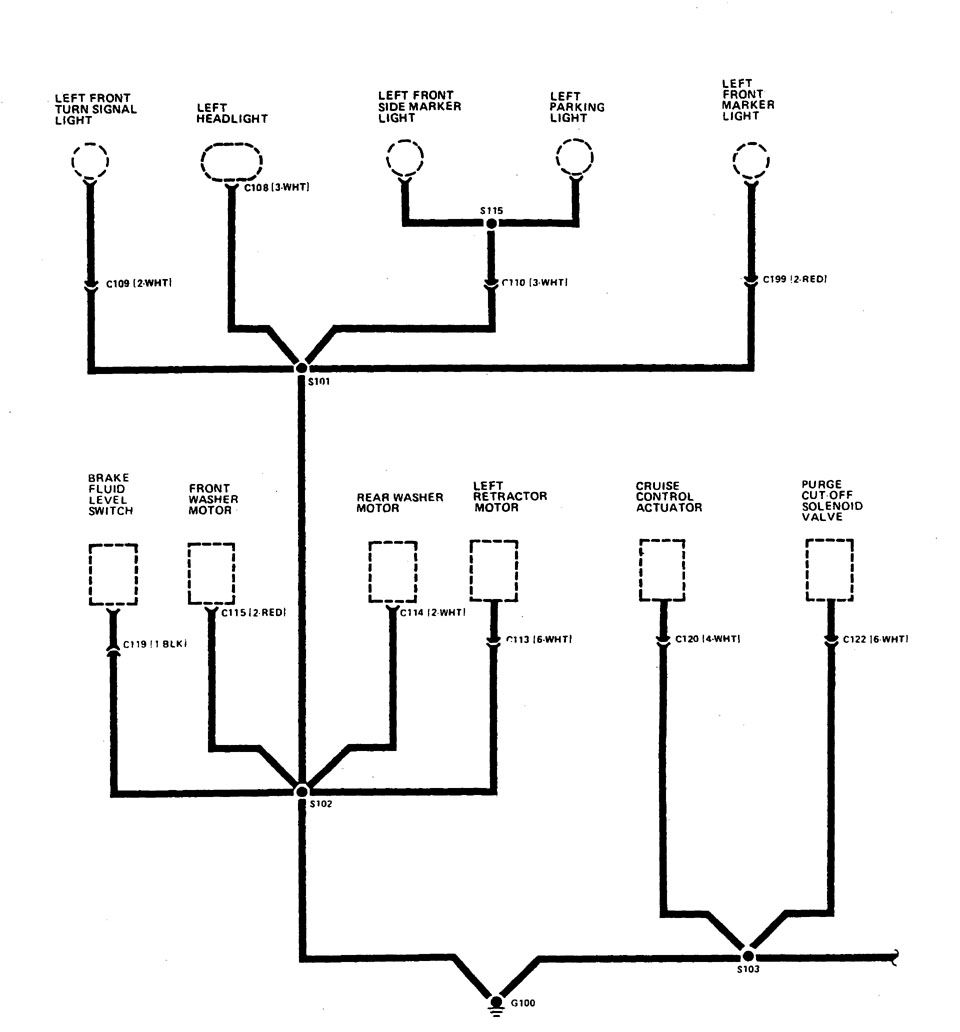

Acura Integra – wiring diagram – ground distribution

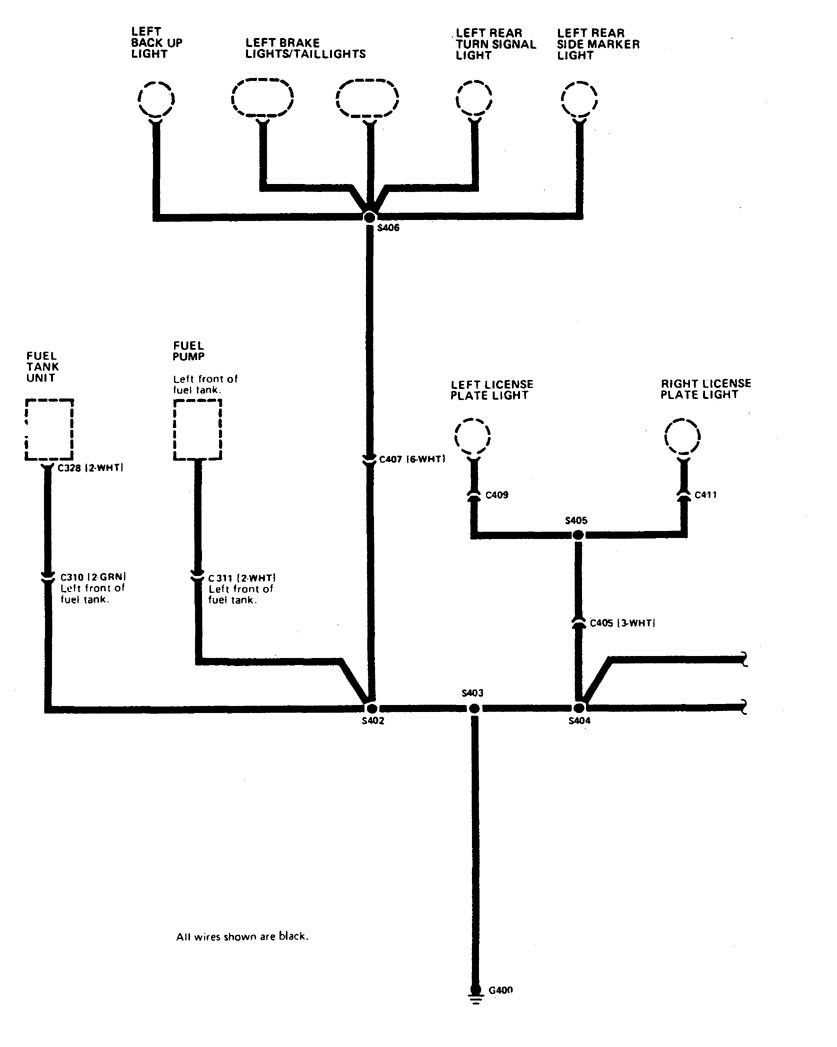

Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
