Acura Integra (1989) – wiring diagrams – speed control

Acura Integra (1989) – wiring diagrams – speed control

Year of productions: 1989

Speed control

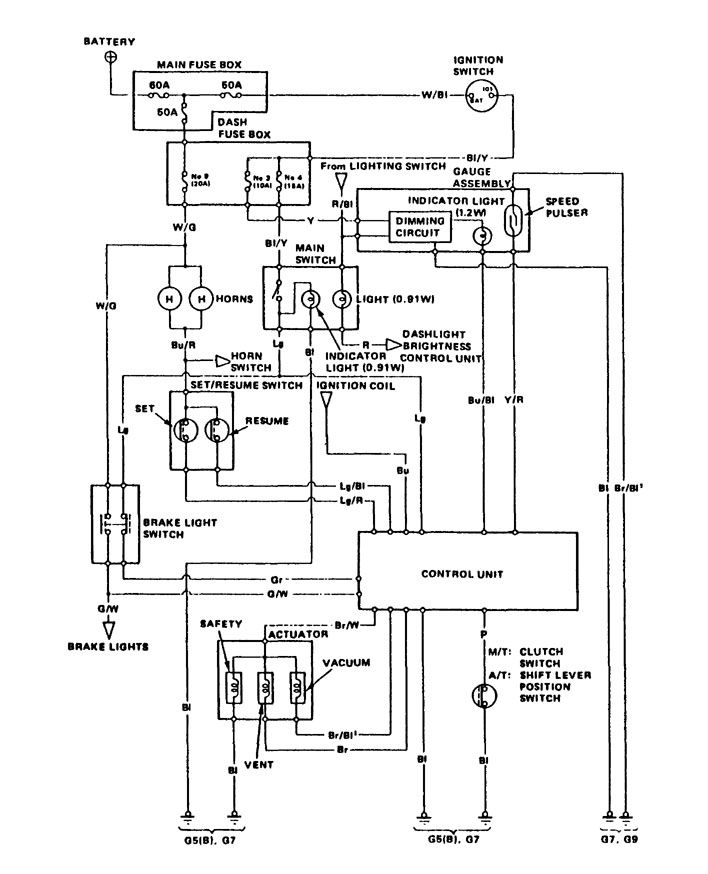

Acura Integra – wiring diagram – speed control

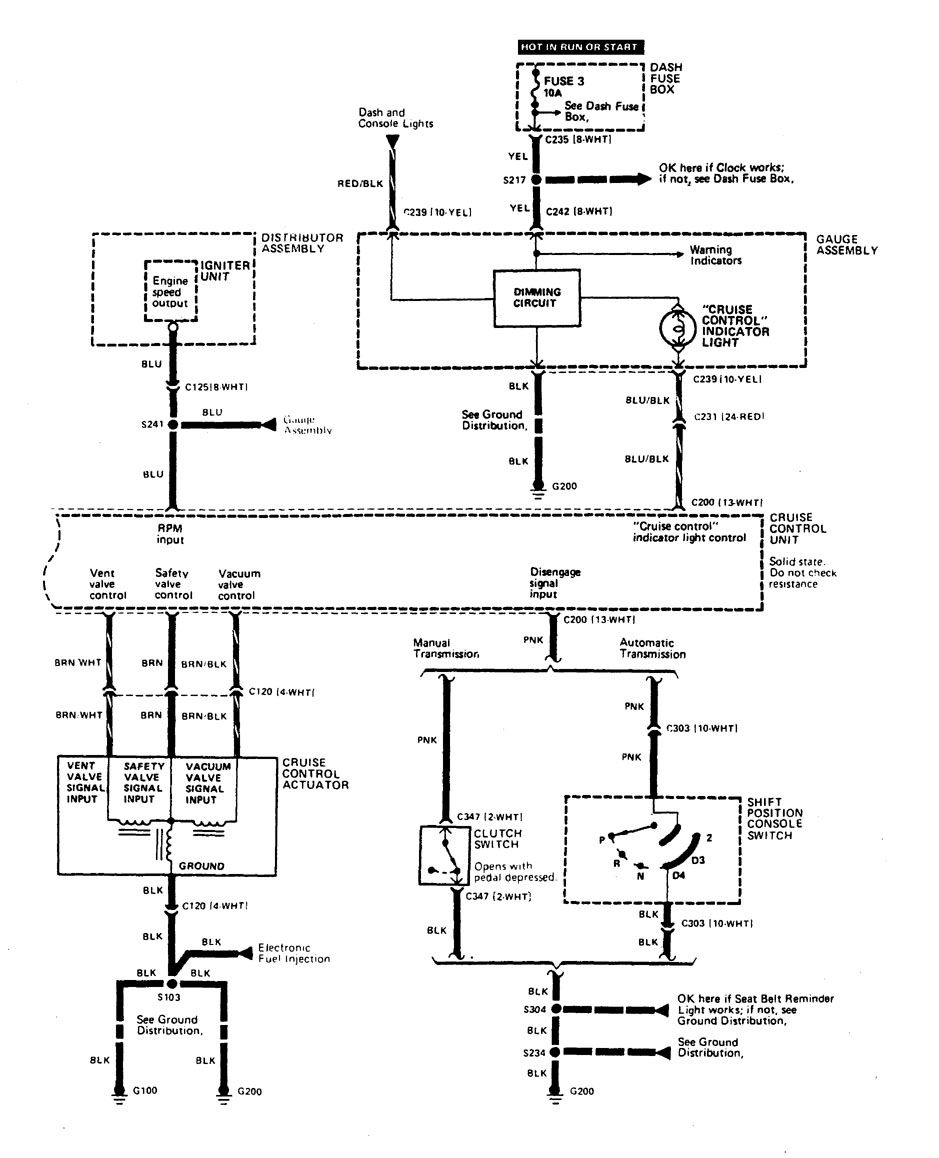

Acura Integra – wiring diagram – speed control

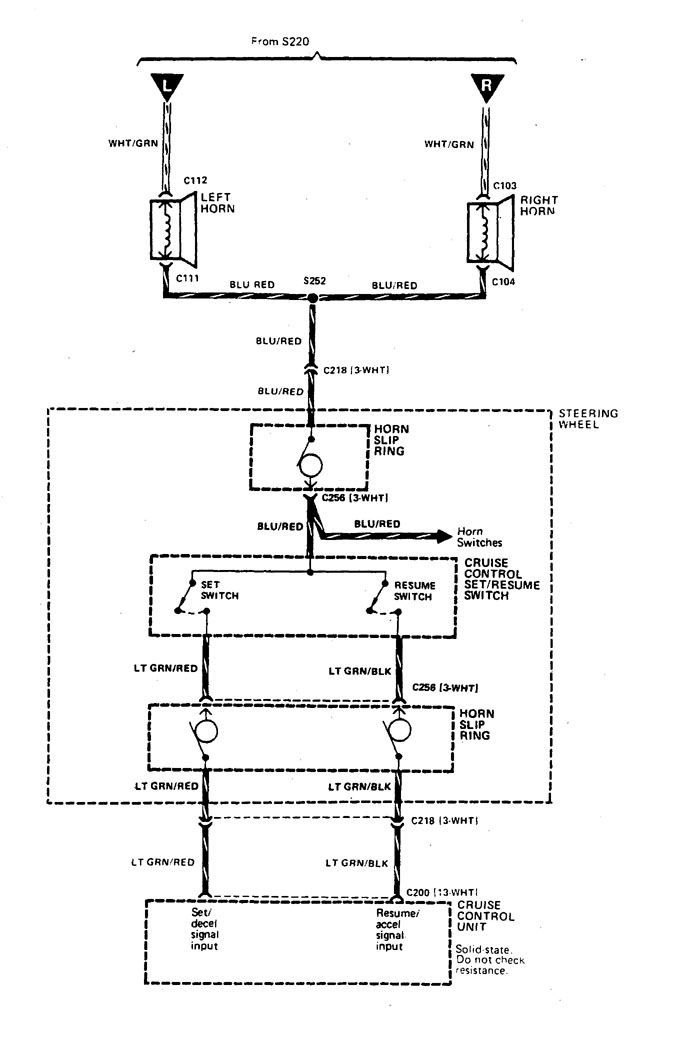

Acura Integra – wiring diagram – speed control

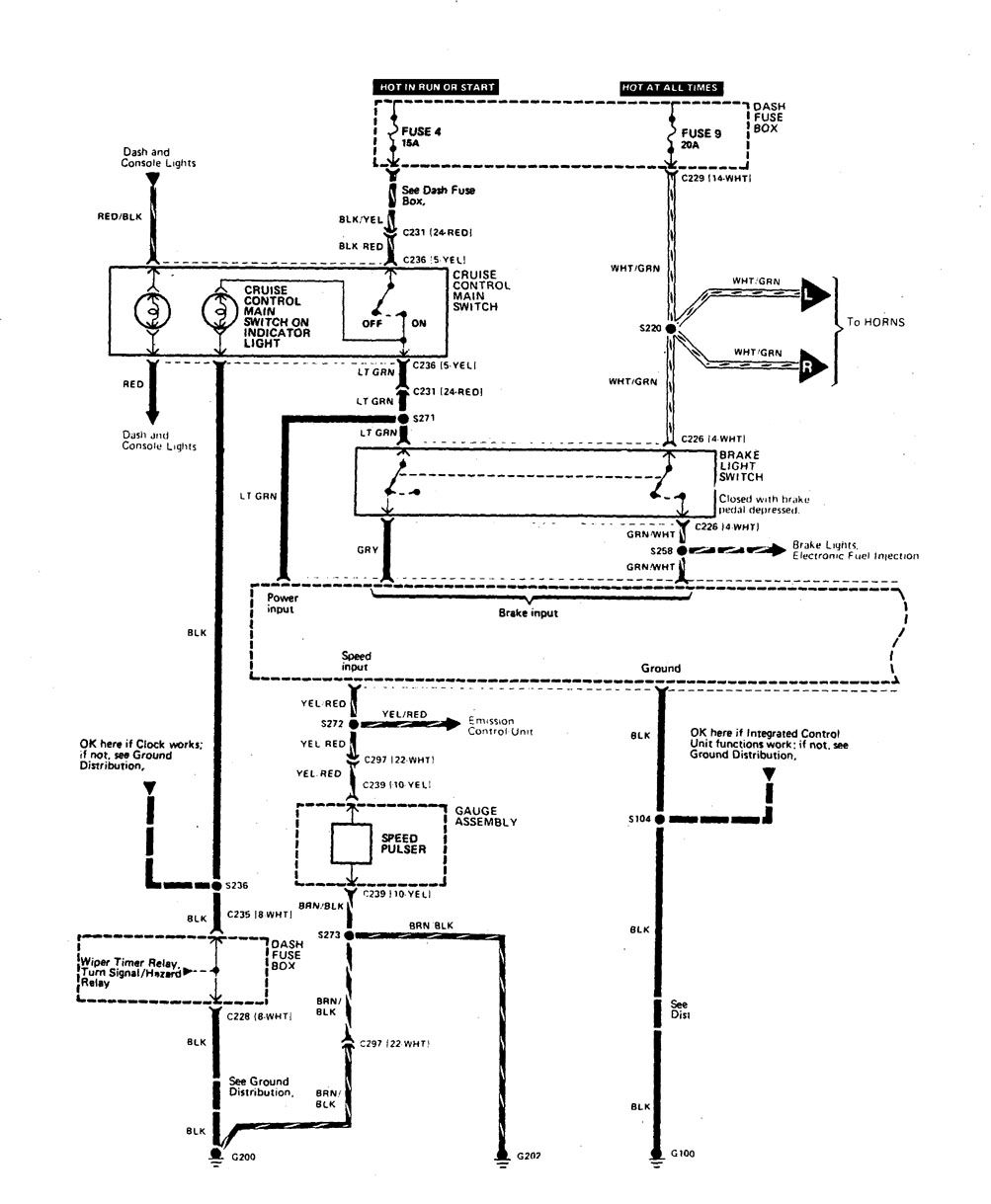

Acura Integra – wiring diagram – speed control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
