Acura Integra (1990) – wiring diagrams – door lamp

Acura Integra (1990) – wiring diagrams – door lamp

Year of productions: 1990

Door lamp

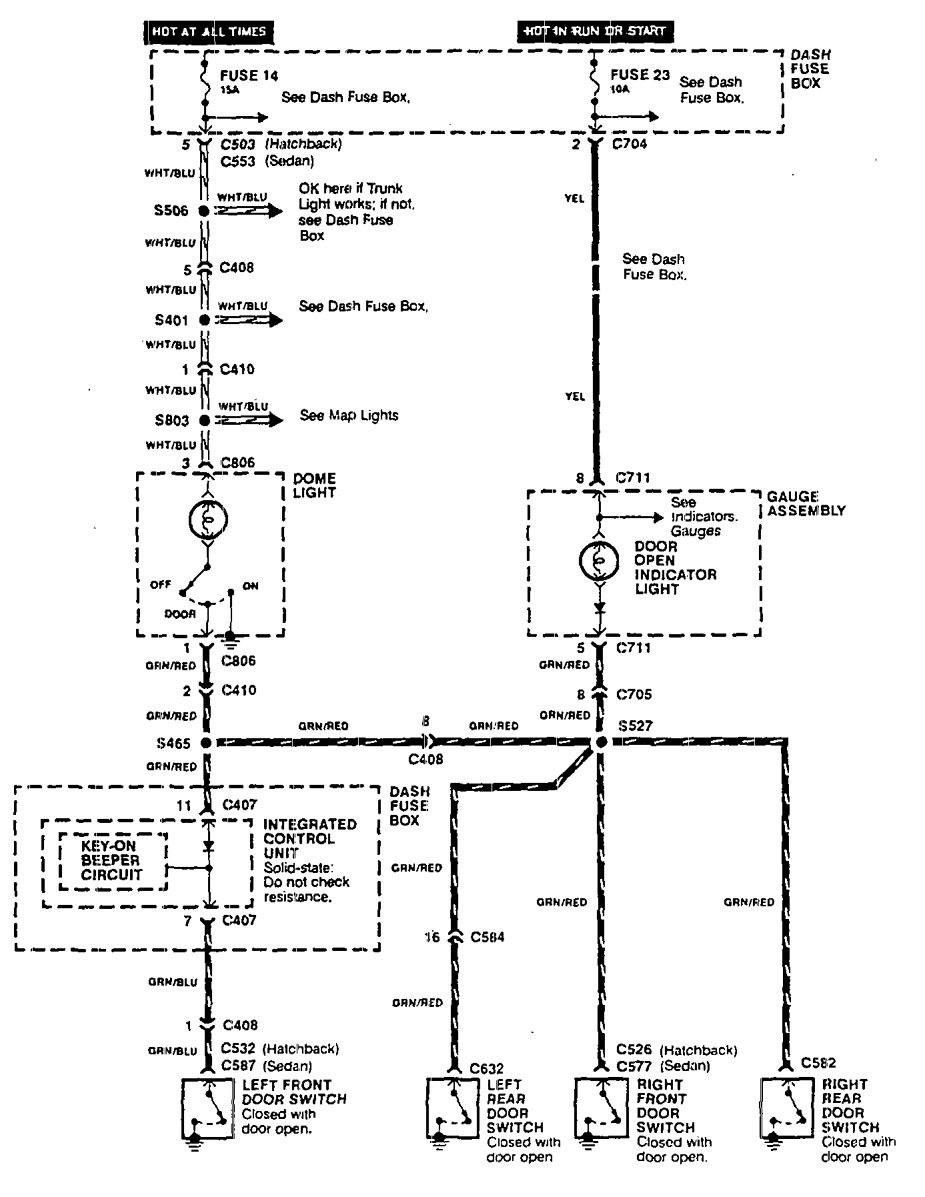

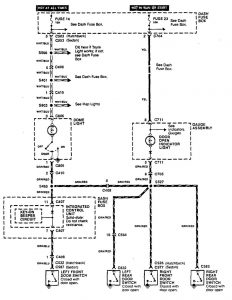

Acura Integra – wiring diagram – door lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
