Acura Integra (1990) – wiring diagrams – ground distribution

cura Integra (1990) – wiring diagrams – ground distribution

Year of productions: 1990

Ground distribution

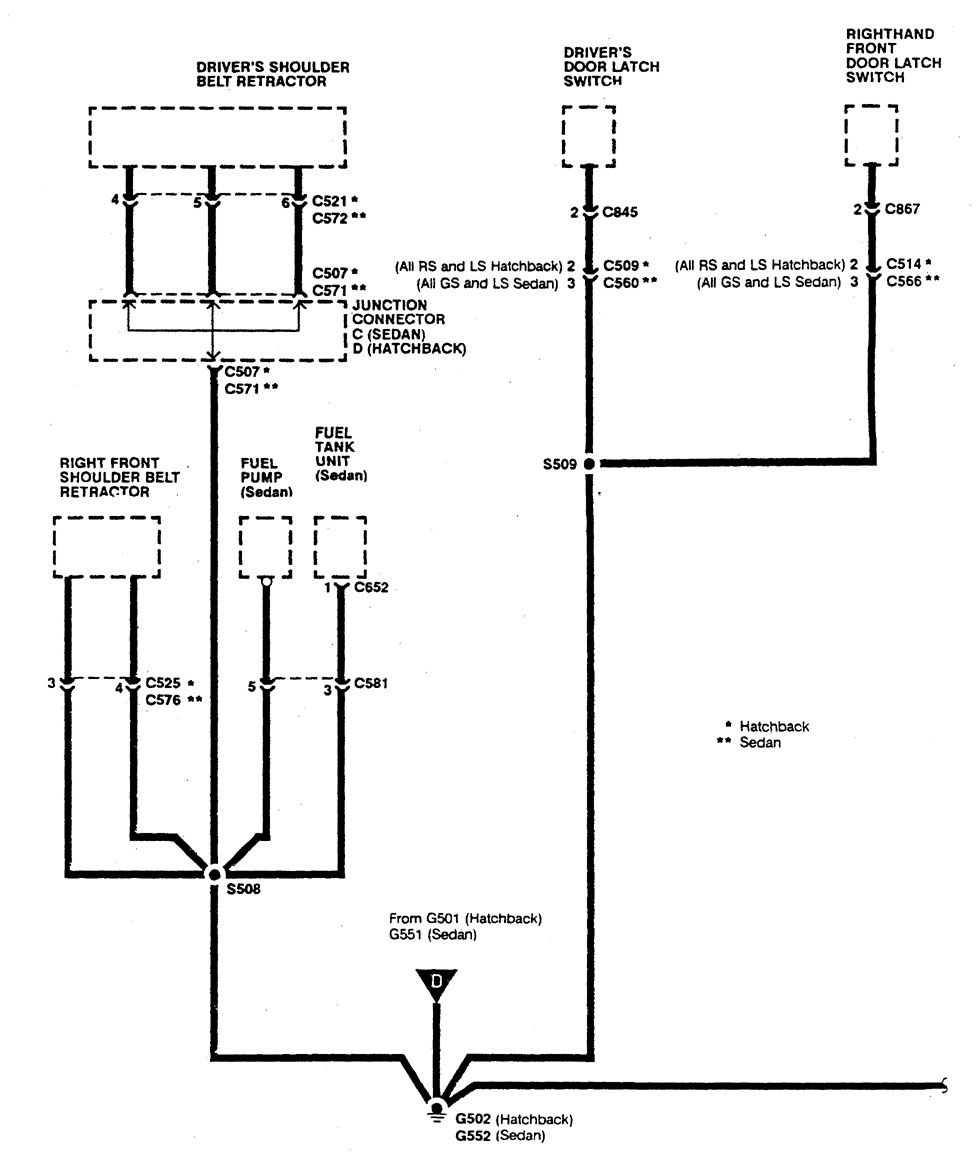

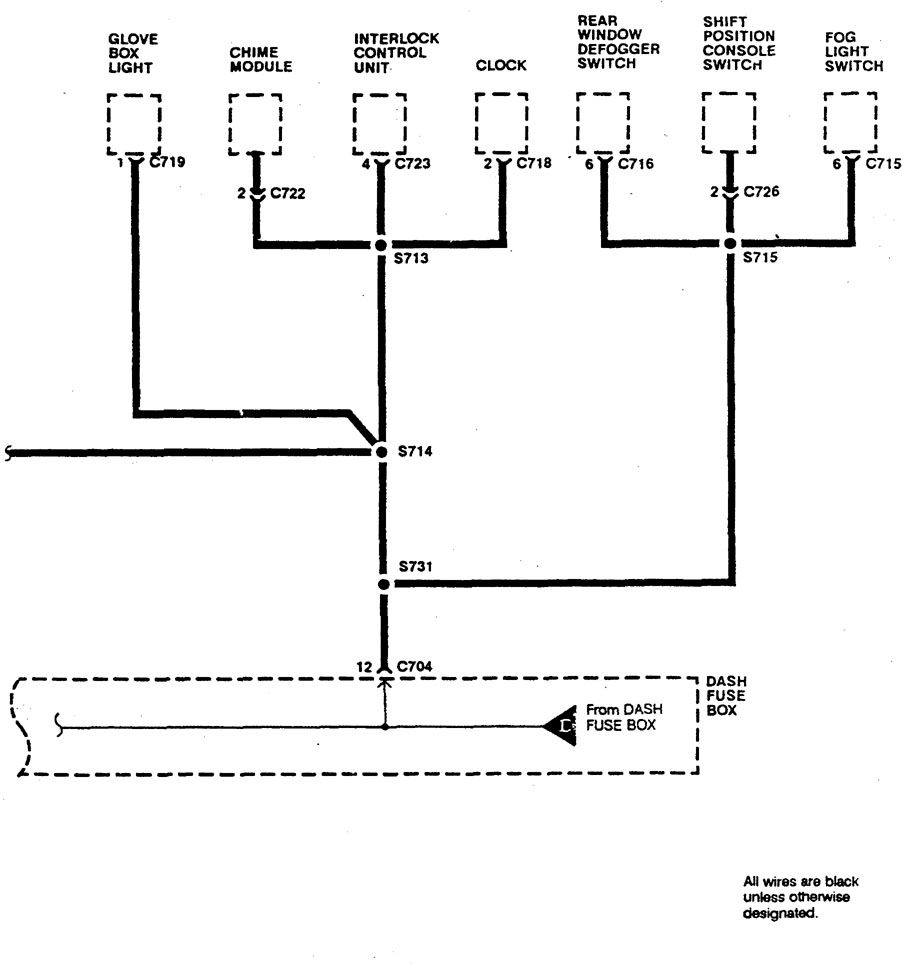

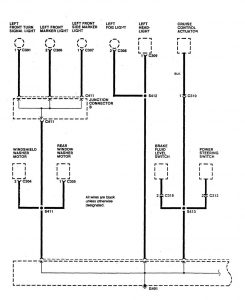

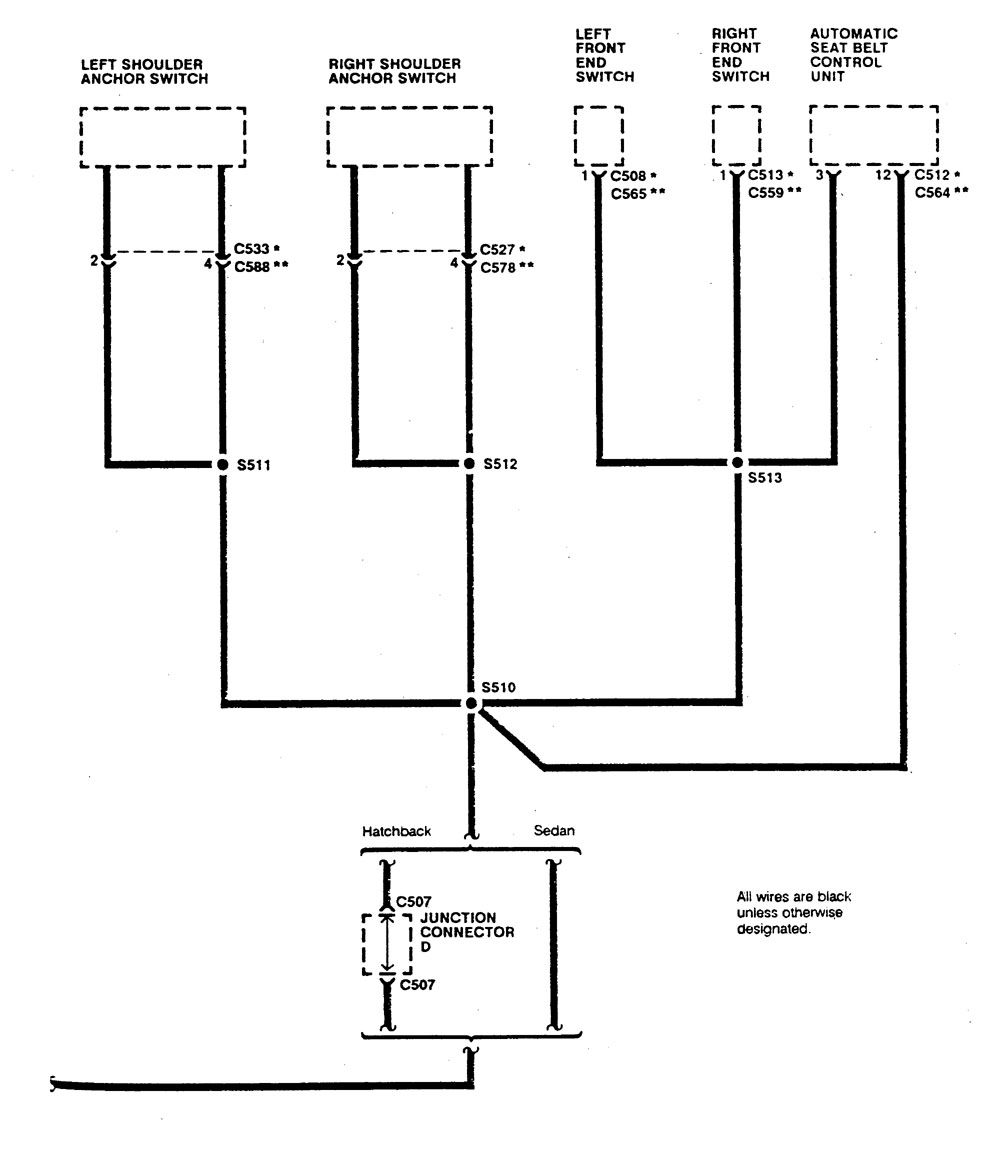

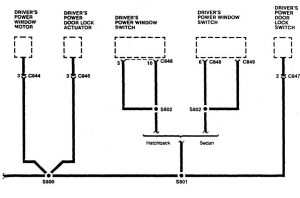

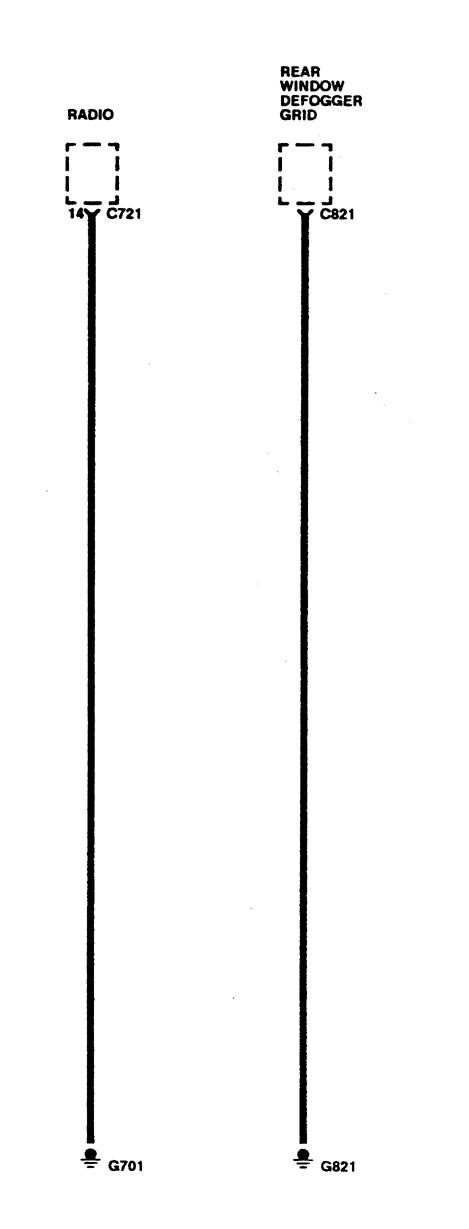

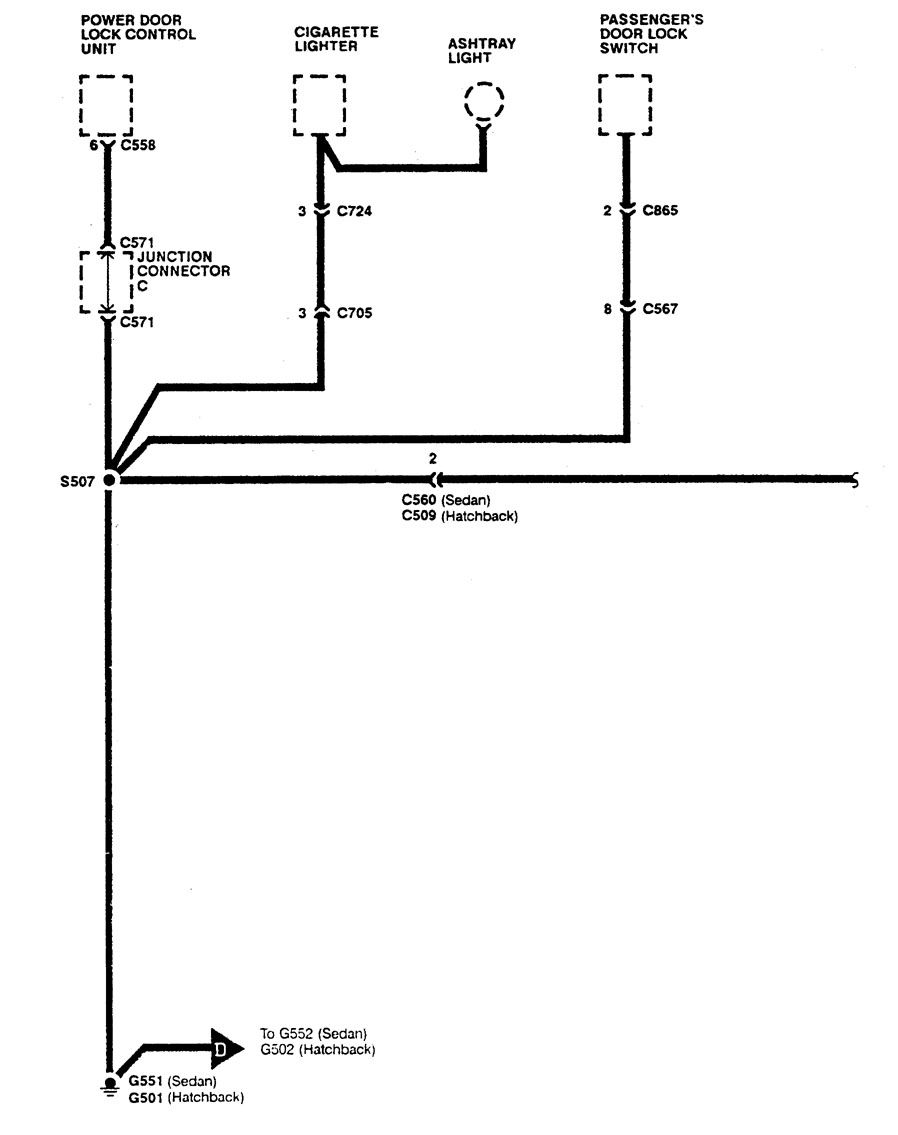

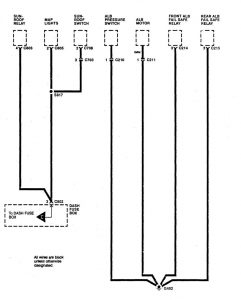

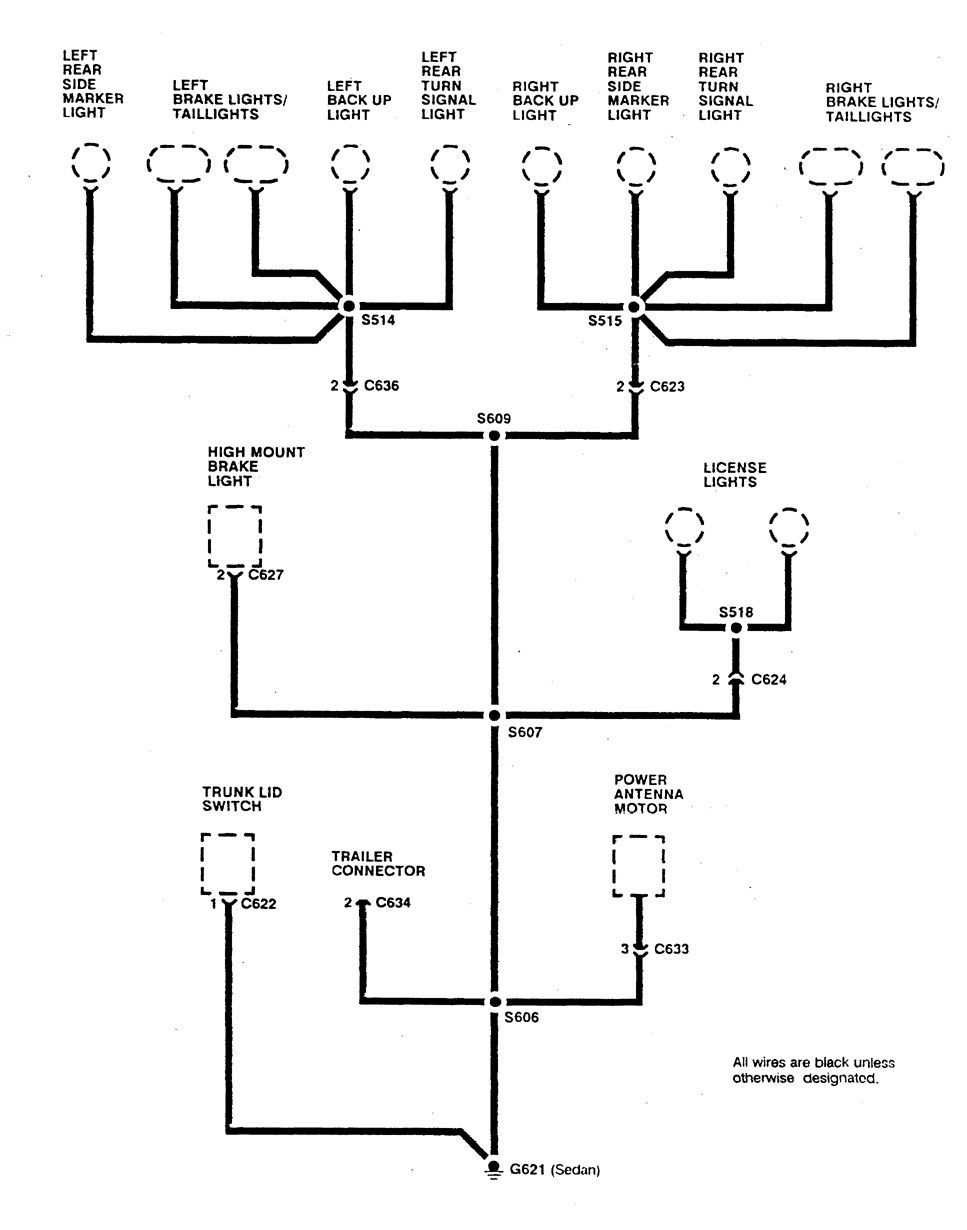

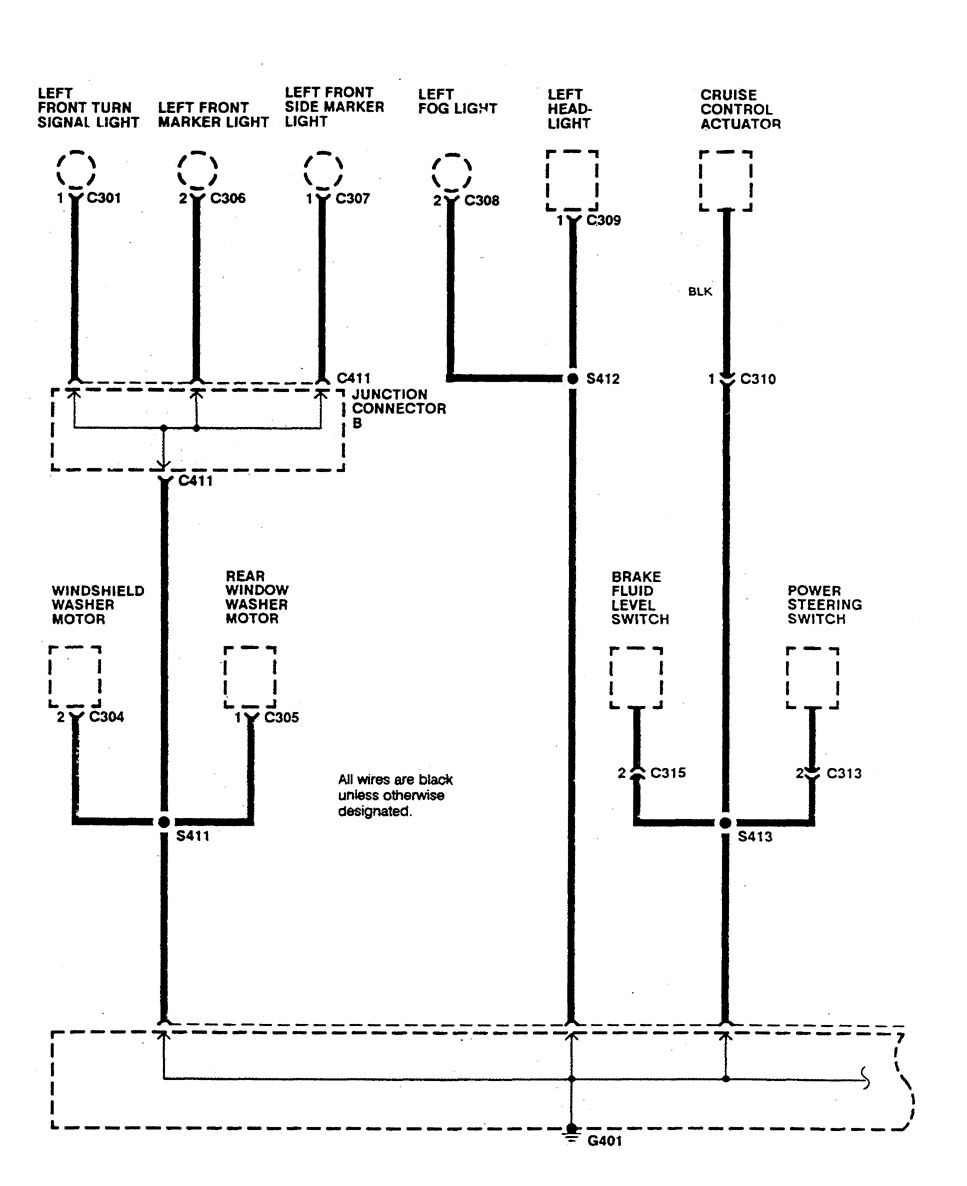

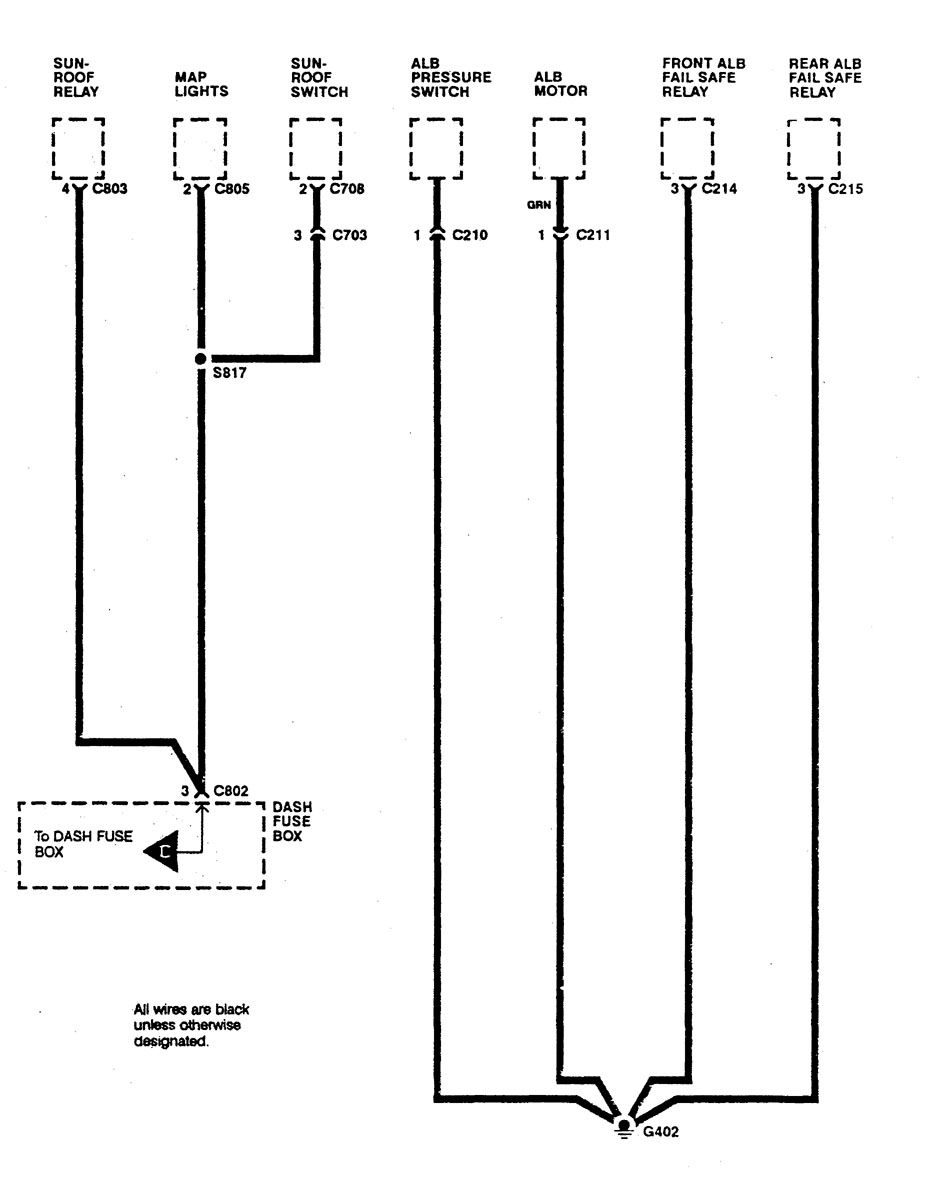

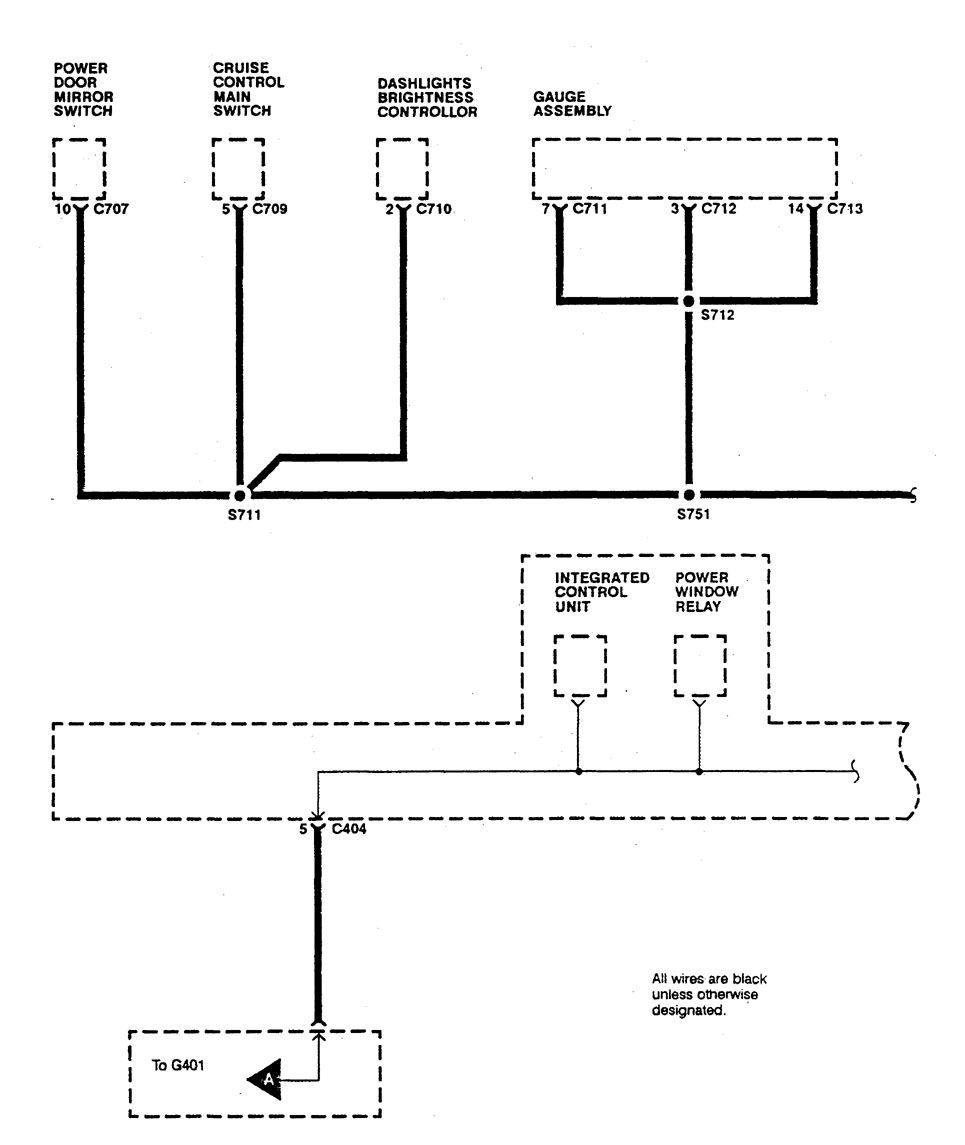

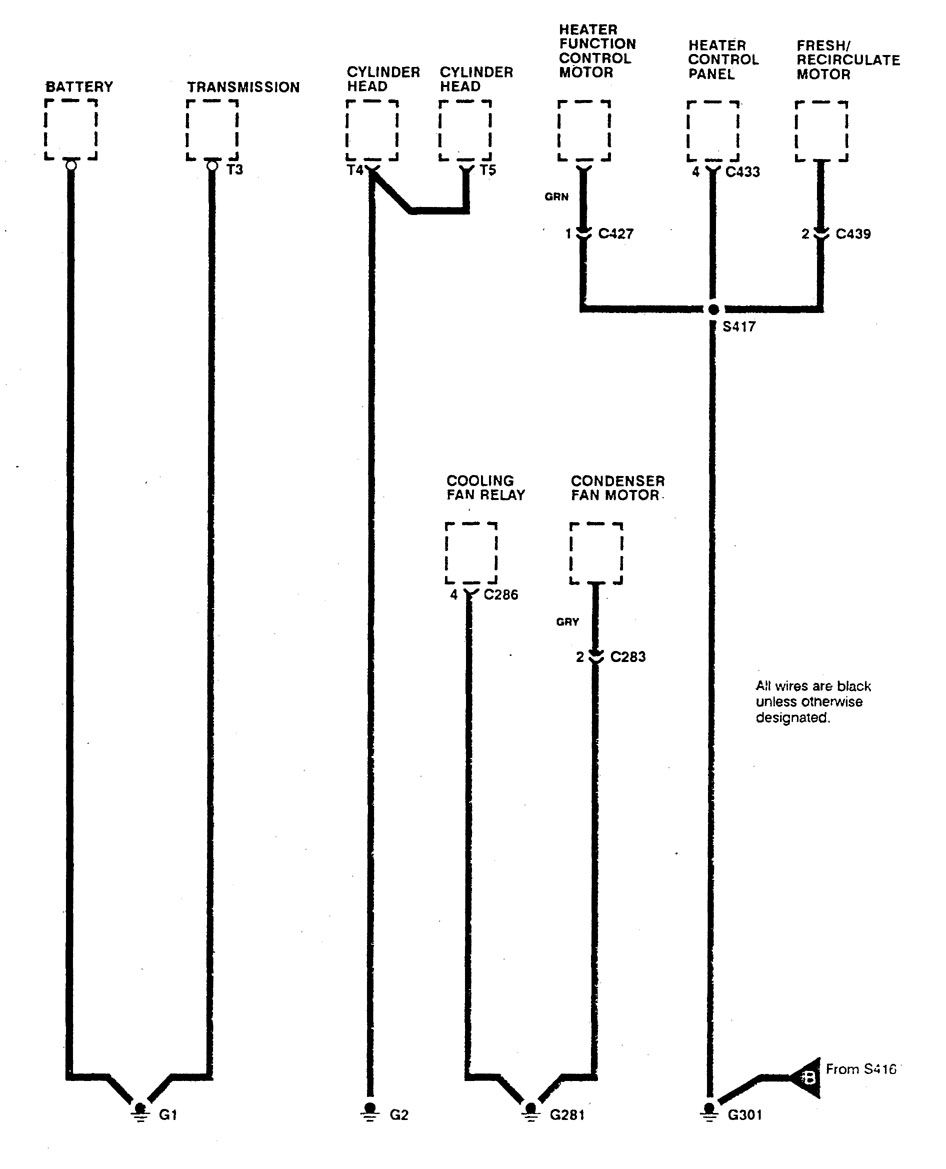

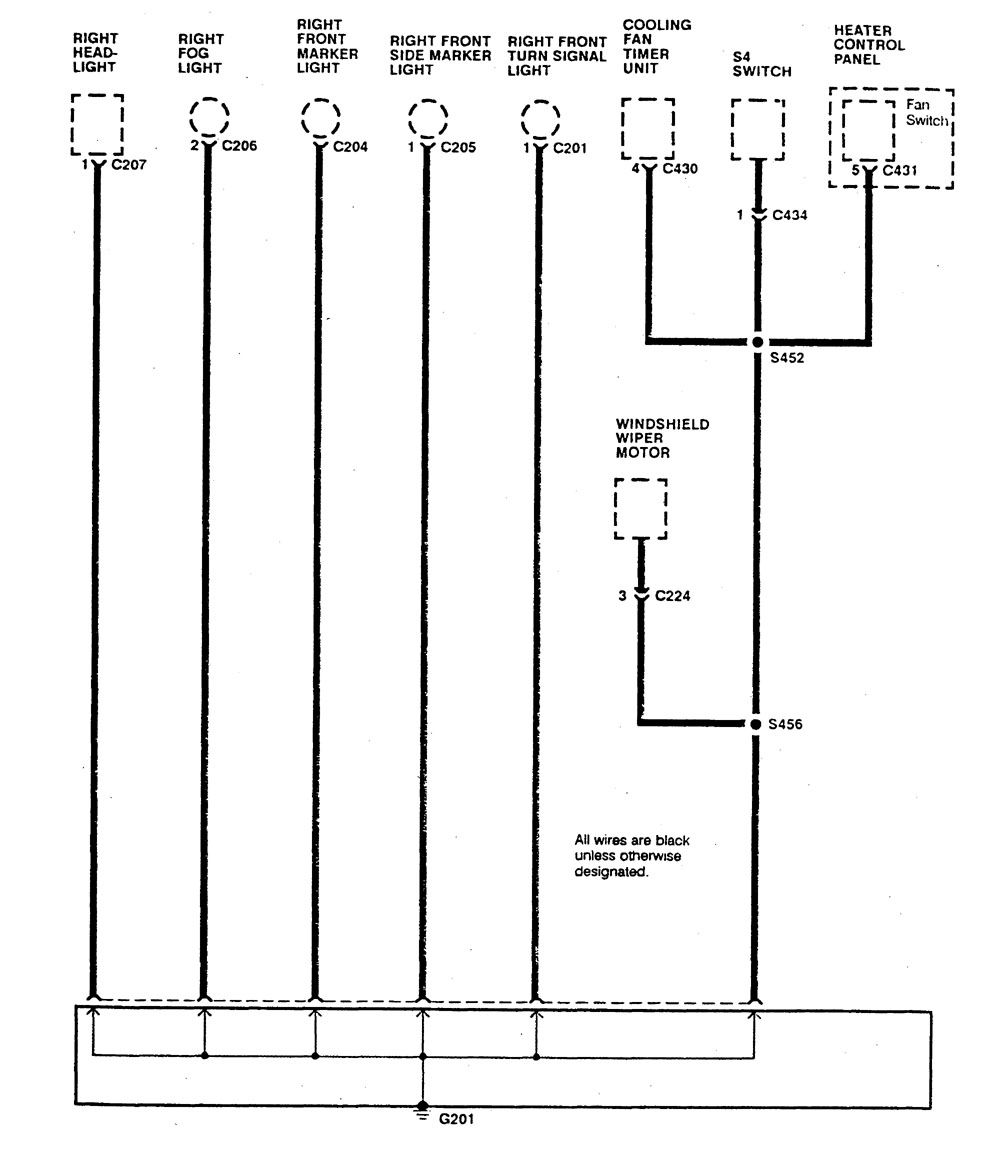

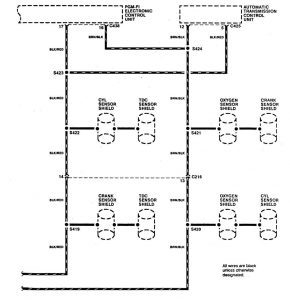

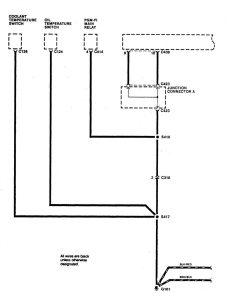

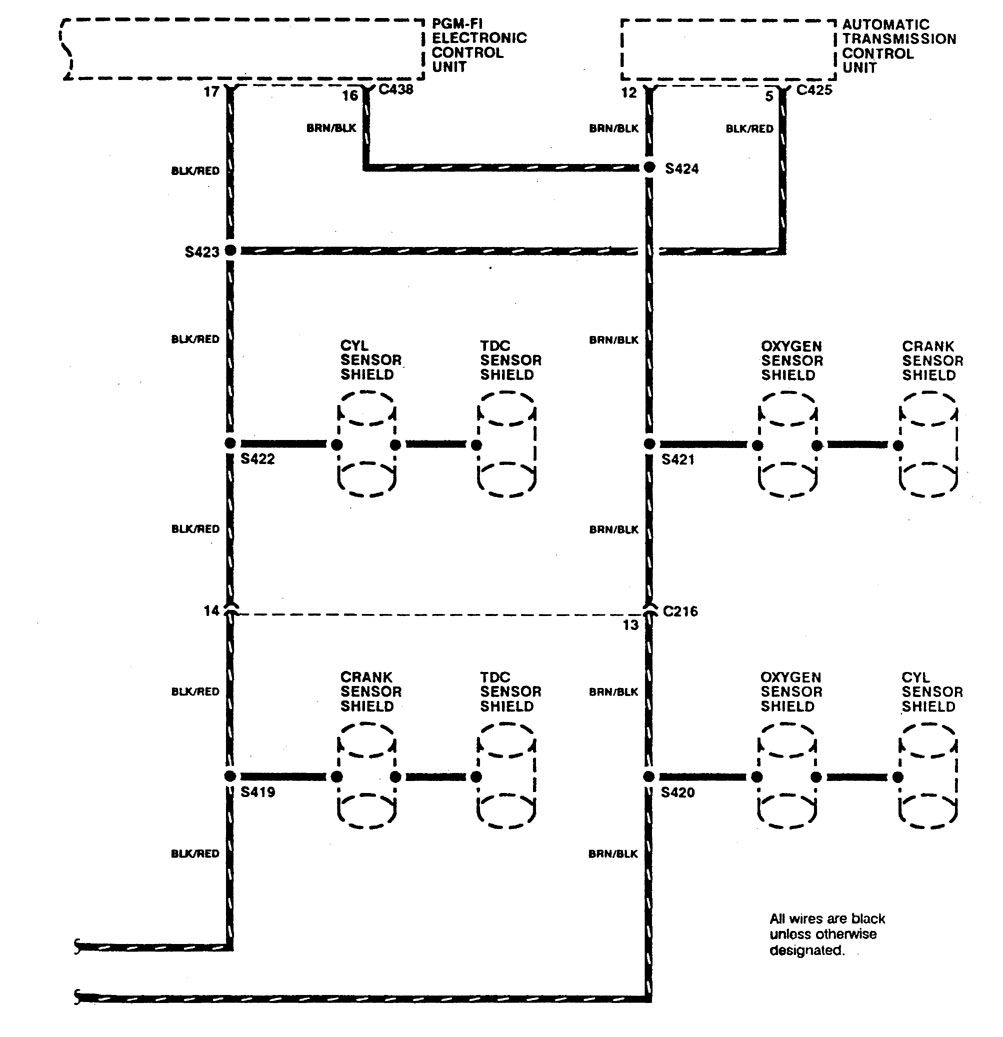

Acura Integra – wiring diagram – ground distribution

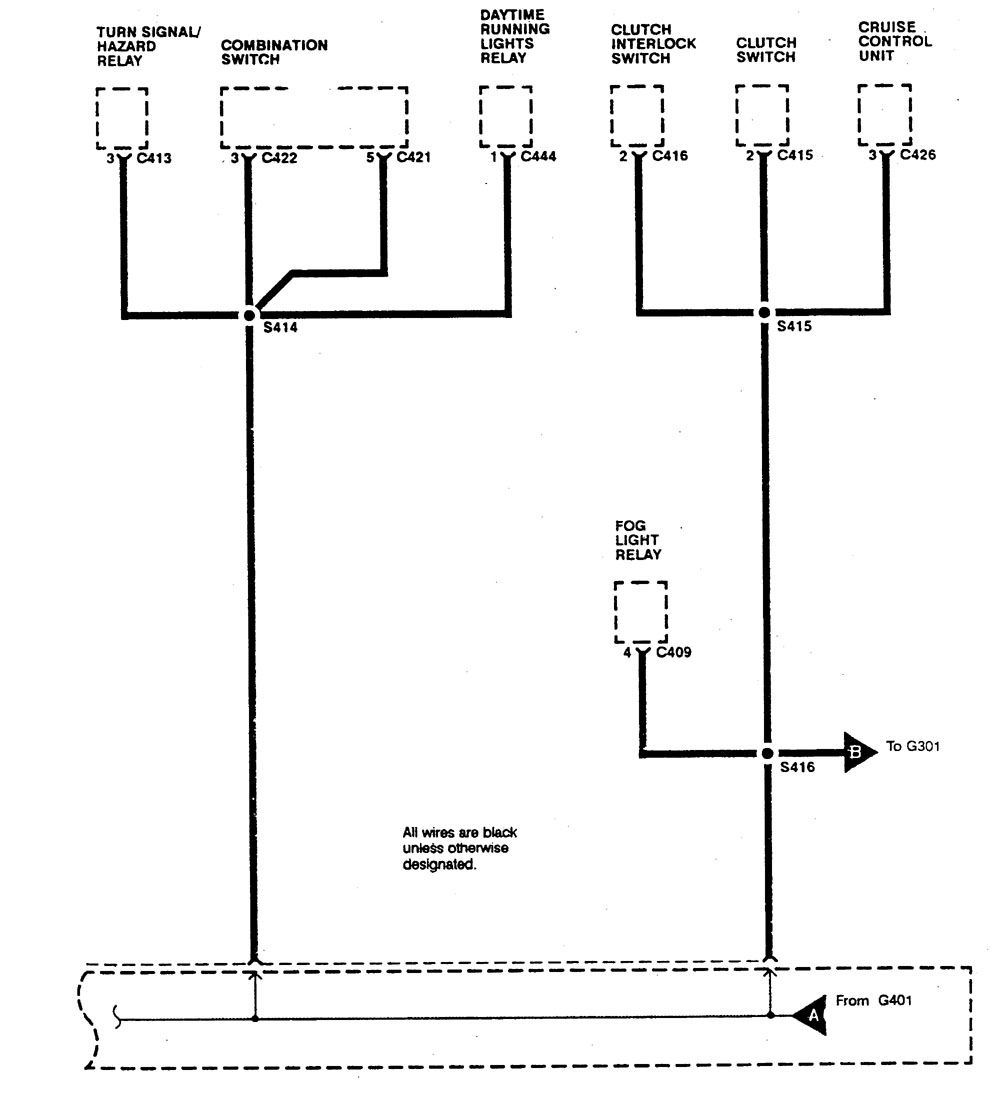

Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution
Acura Integra – wiring diagram – ground distribution

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
