Acura Integra (1990) – wiring diagrams – hazard lamp

Acura Integra (1990) – wiring diagrams – hazard lamp

Year of productions: 1990

Hazard lamp

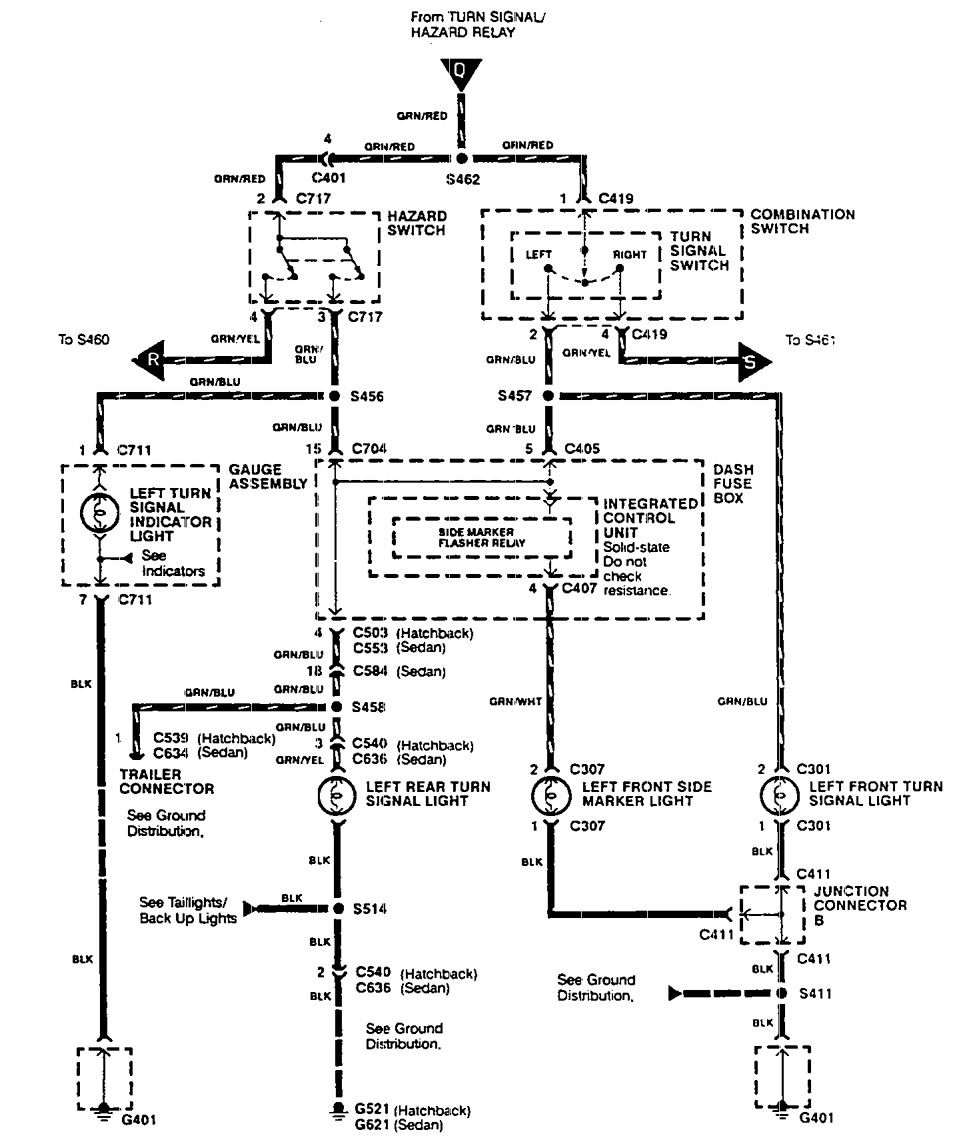

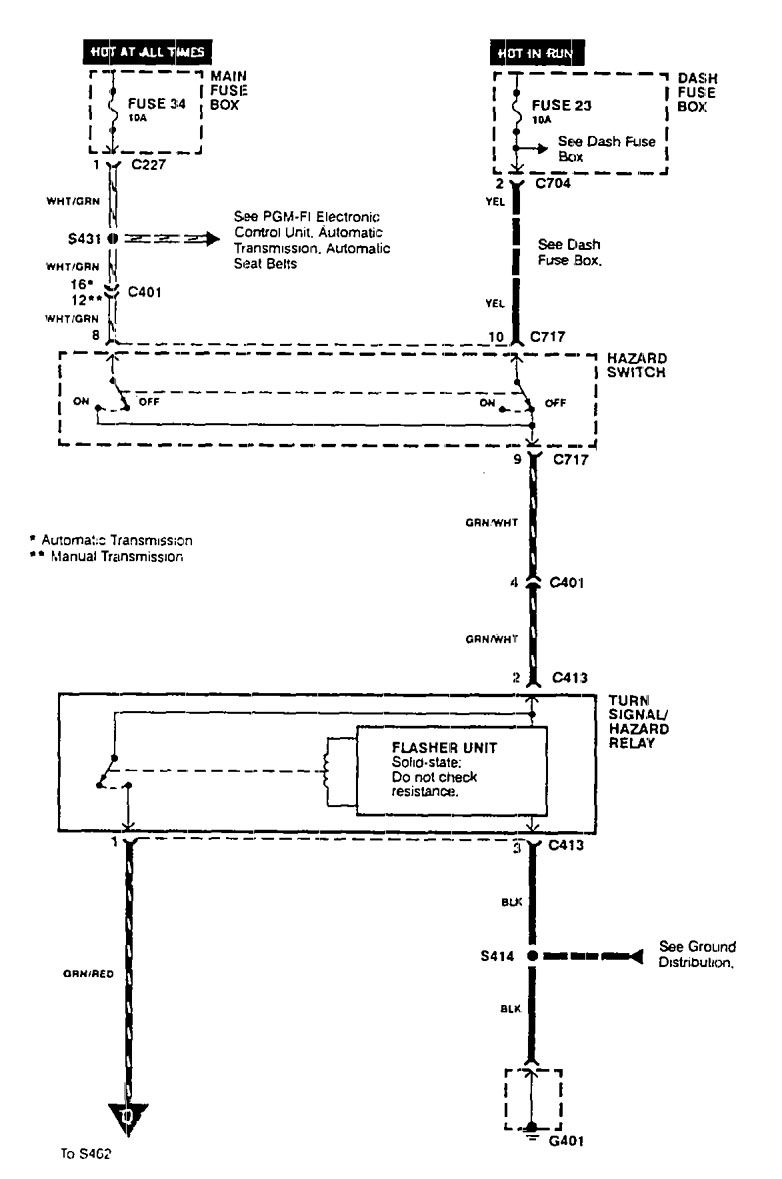

Acura Integra – wiring diagram – hazard lamp
Acura Integra – wiring diagram – hazard lamp
Acura Integra – wiring diagram – hazard lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
