Acura Integra (1990) – wiring diagrams – HVAC control

Acura Integra (1990) – wiring diagrams – HVAC control

Year of productions: 1990

HVAC control

Acura Integra – wiring diagram – HVAC control
Acura Integra – wiring diagram – HVAC control

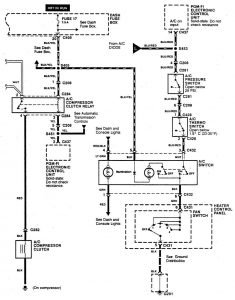

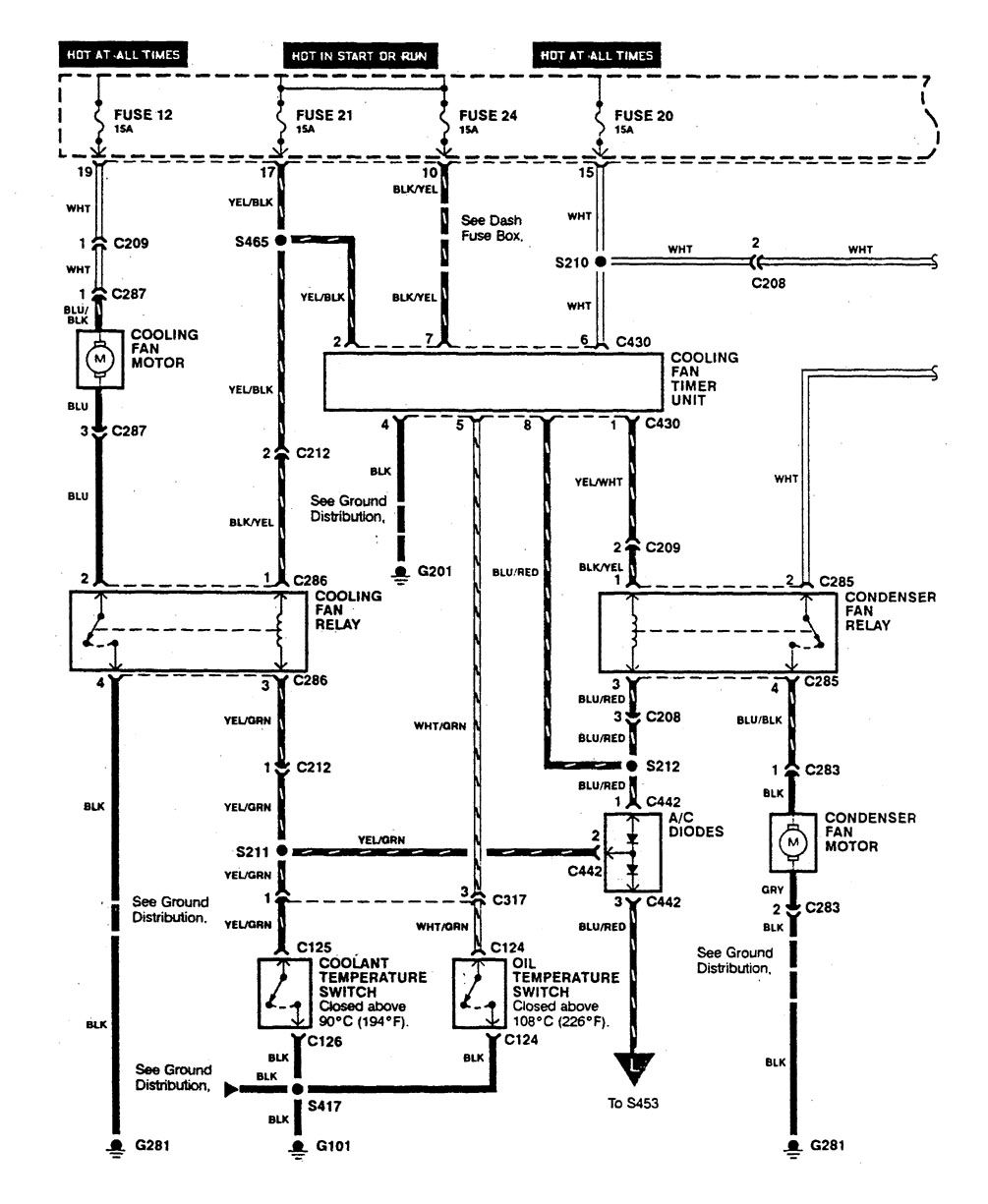

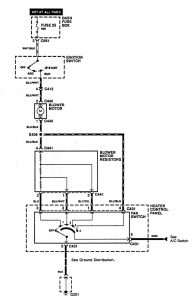

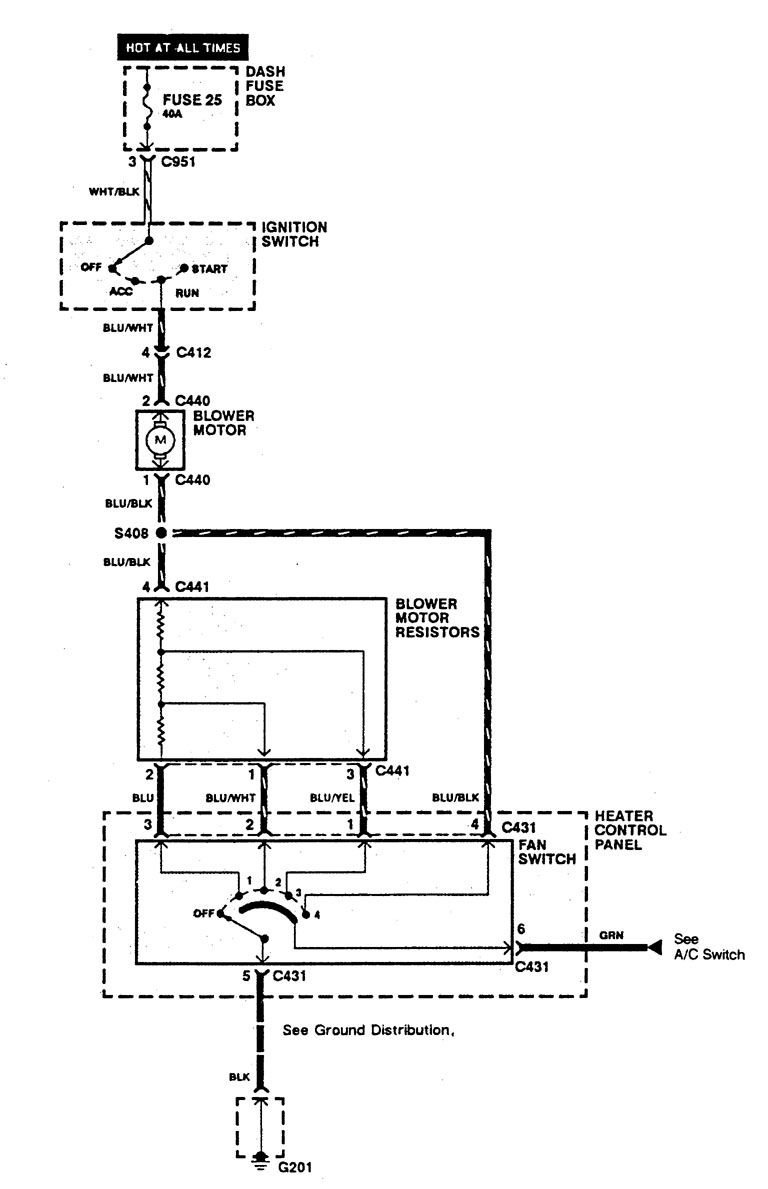

Acura Integra – wiring diagram – HVAC control (hot at all time)

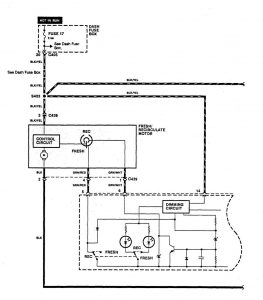

Acura Integra – wiring diagram – HVAC control (hot in run)

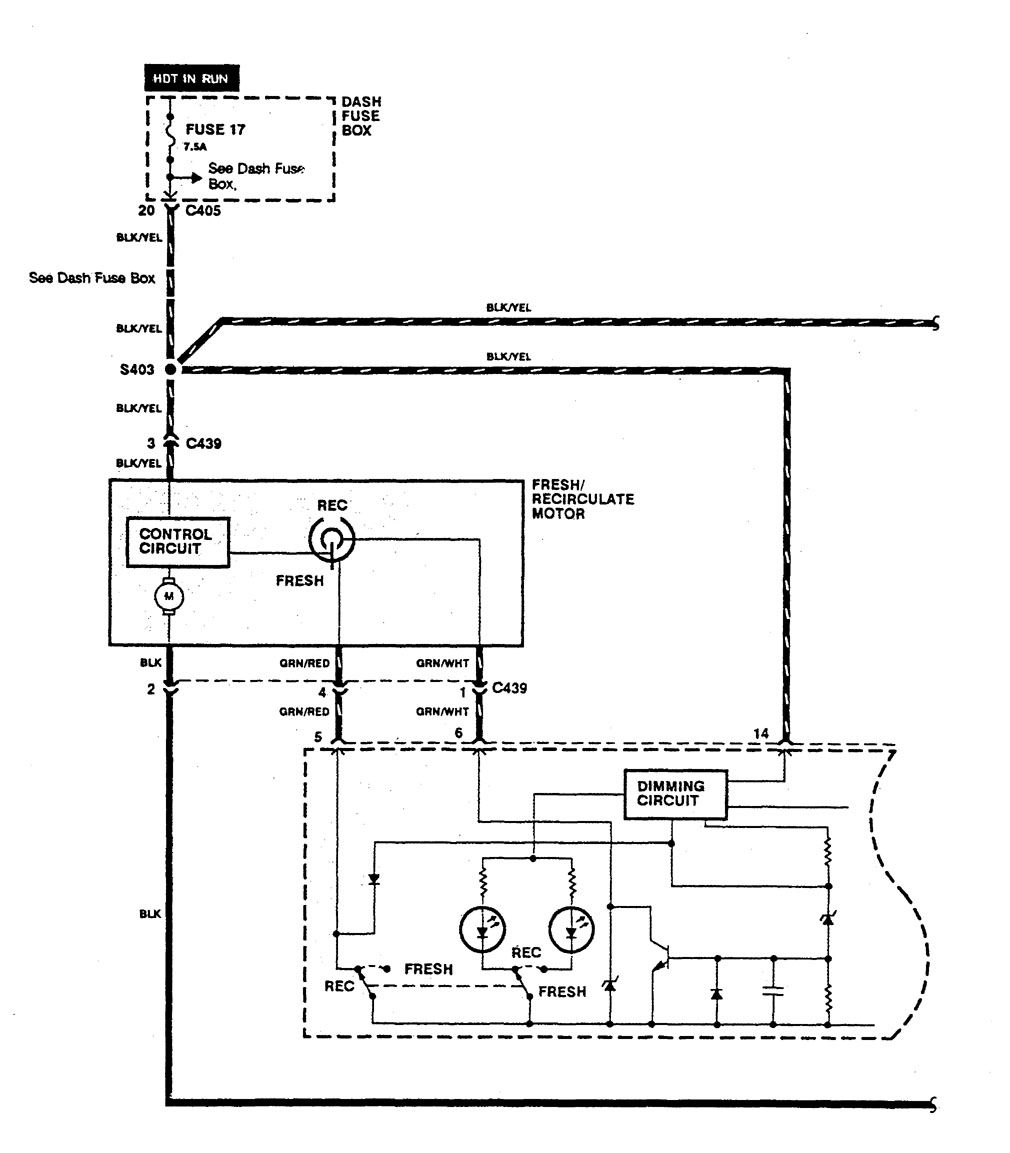

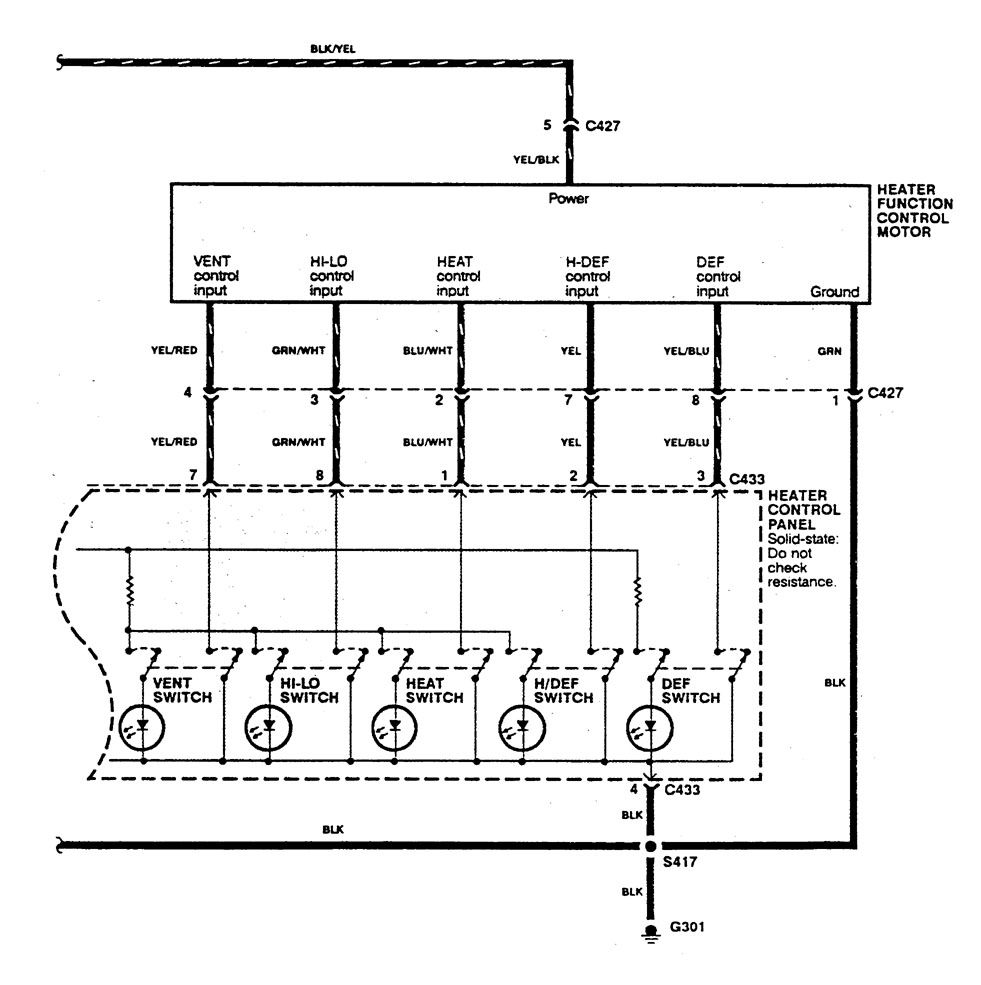

Acura Integra – wiring diagram – HVAC control (hot in run)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
