Acura Integra (1990) – wiring diagrams – ignition

Year of productions: 1990

Ignition

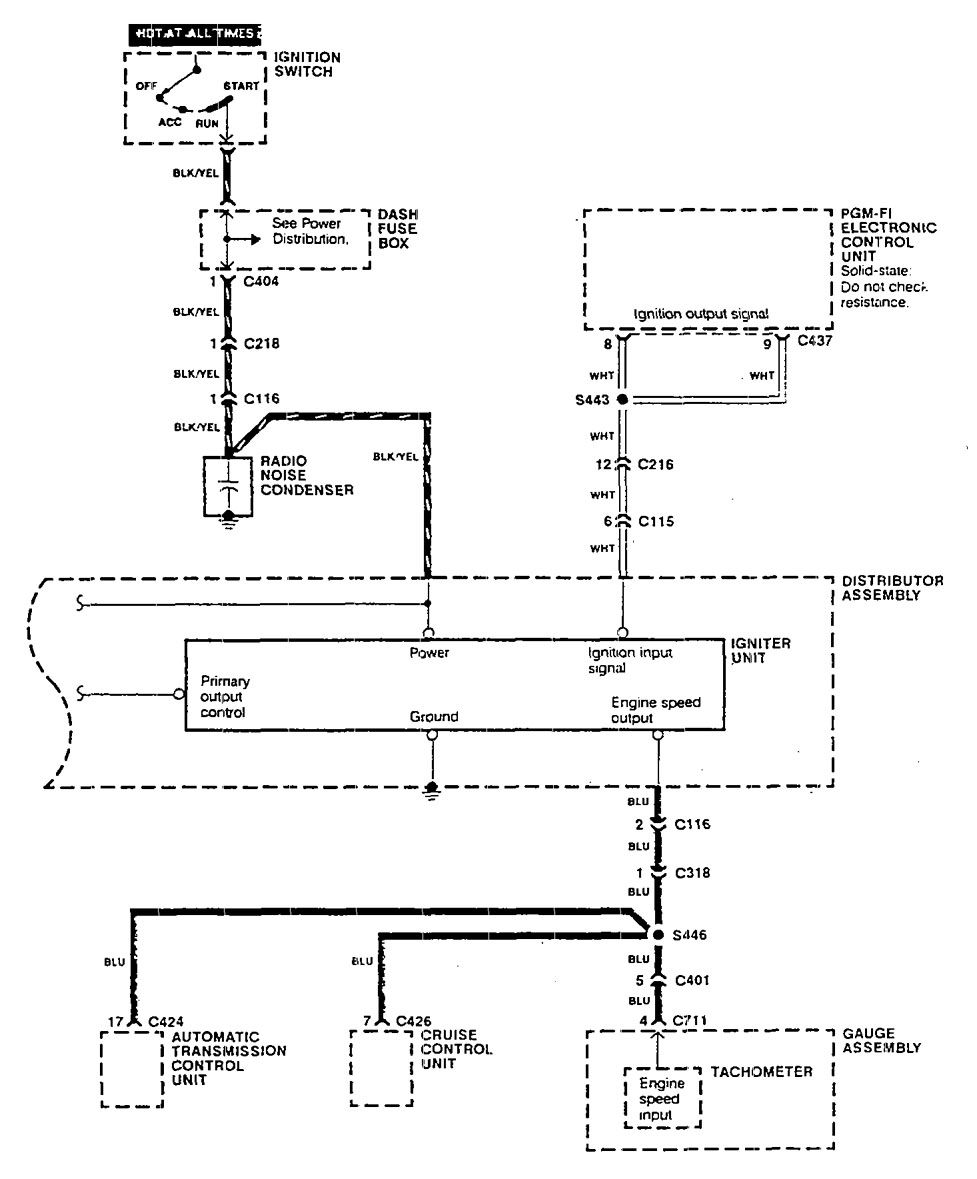

Acura Integra – wiring diagram – ignition

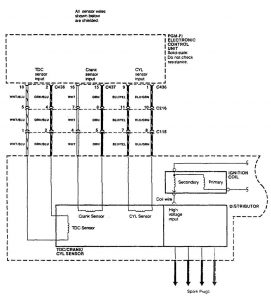

Acura Integra – wiring diagram – ignition



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
