Acura Integra (1990) – wiring diagrams – seat belt

Acura Integra (1990) – wiring diagrams – seat belt

Year of productions: 1990

Seat belt

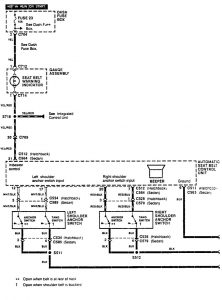

Acura Integra – wiring diagram – seat belt

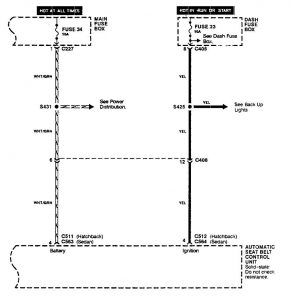

Acura Integra – wiring diagram – seat belt

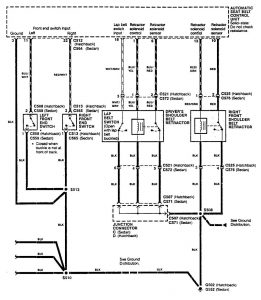

Acura Integra – wiring diagram – seat belt

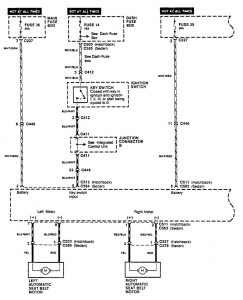

Acura Integra – wiring diagram – seat belt

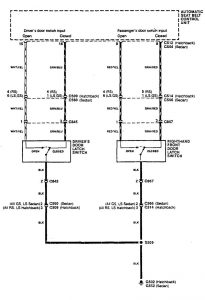

Acura Integra – wiring diagram – seat belt

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
