Acura Integra (1990) – wiring diagrams – wiper/washer

Acura Integra (1990) – wiring diagrams – wiper/washer

Year of productions: 1990

Wiper/washer

Acura Integra – wiring diagram – wiper/washer

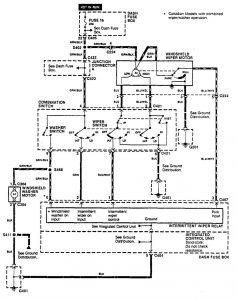

Acura Integra – wiring diagram – wiper/washer (Canadian models)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
