Acura Integra (1992 – 1993) – wiring diagrams – hazard lamp

Acura Integra (1992 – 1993) – wiring diagrams – hazard lamp

Year of productions: 1992, 1993

Hazard lamp

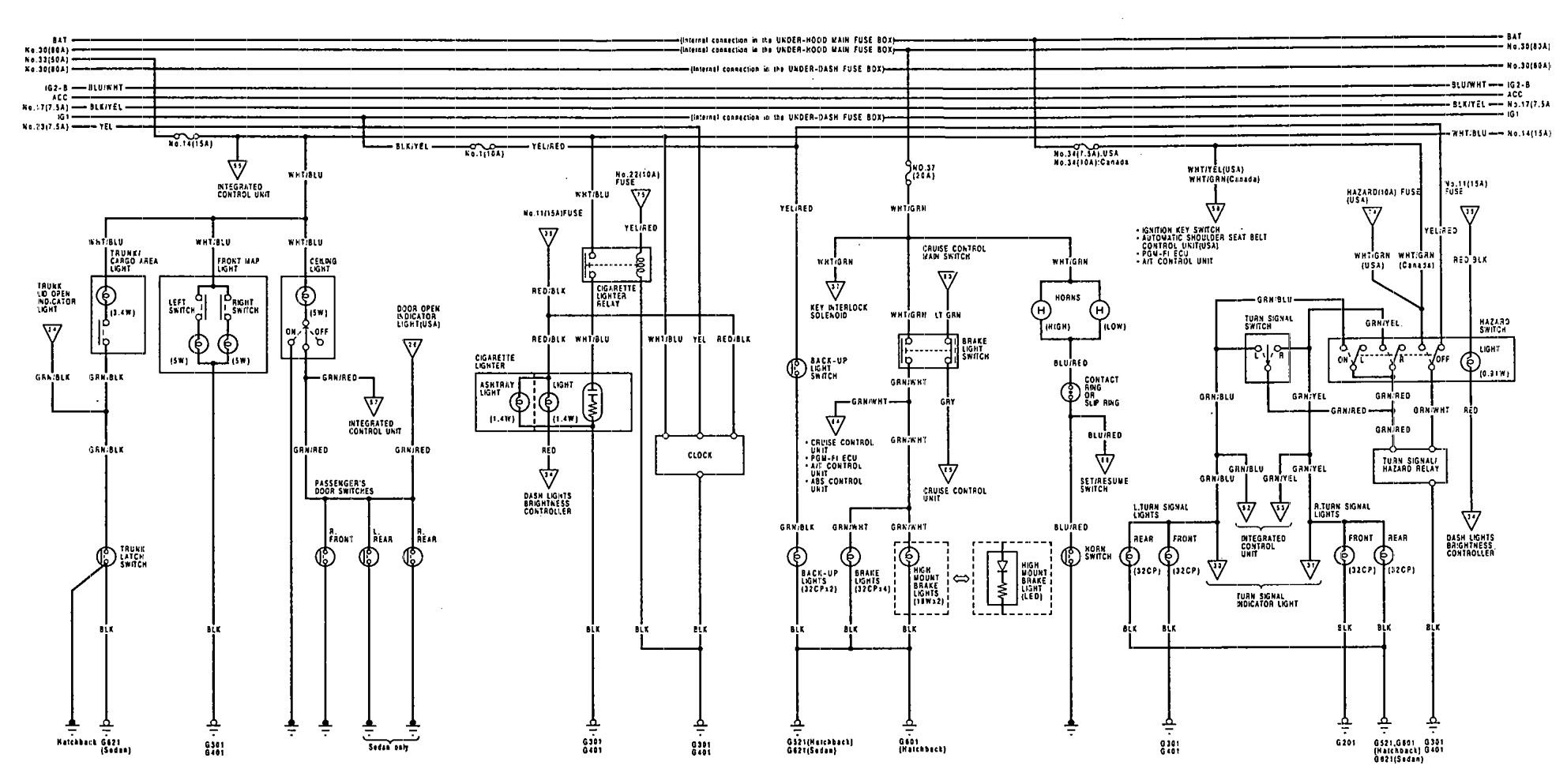

Acura Integra – wiring diagram – hazard lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
