Acura Integra (1994 – 1995) – wiring diagrams – ground distribution

Acura Integra (1994 – 1995) – wiring diagrams – ground distribution

Year of productions: 1994, 1995

Ground distribution

Version 1

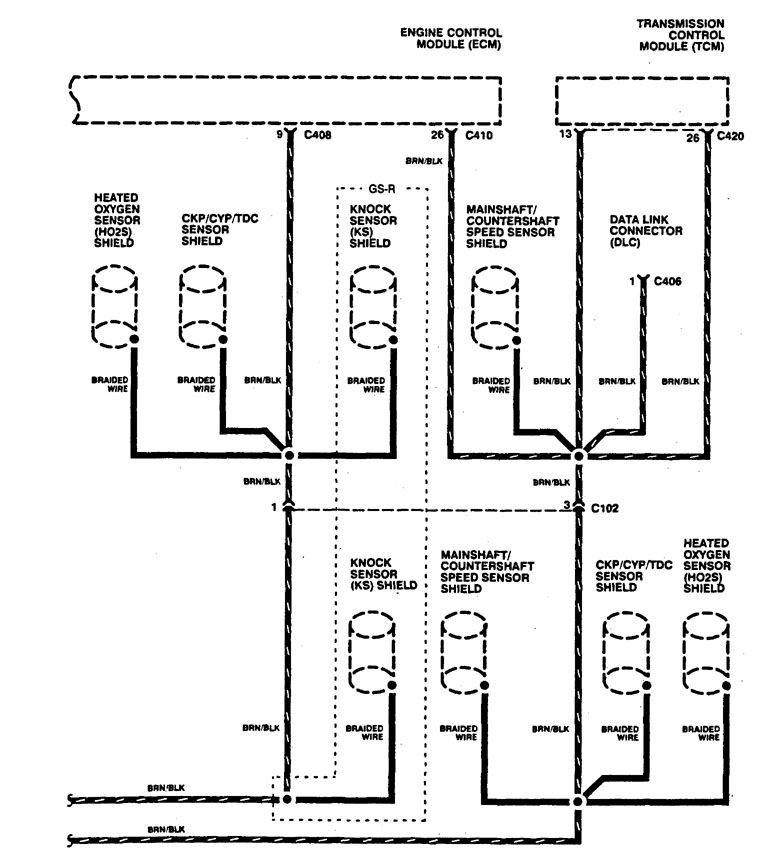

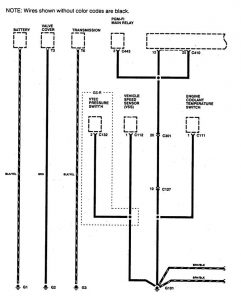

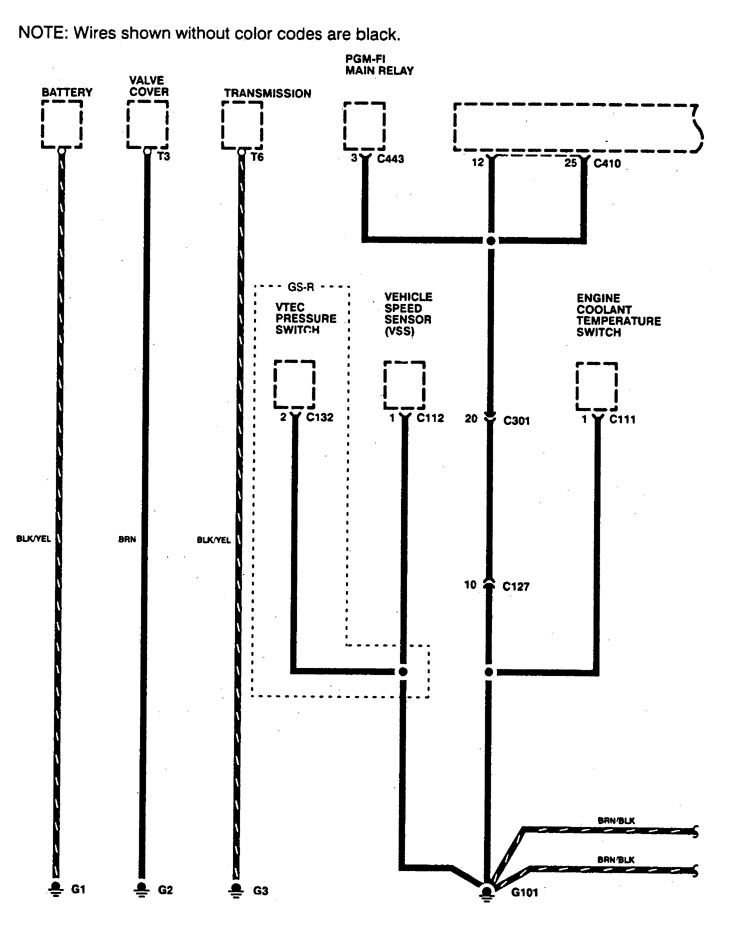

Acura Integra – wiring diagram – ground distribution (part 1)
Acura Integra – wiring diagram – ground distribution (part 2)

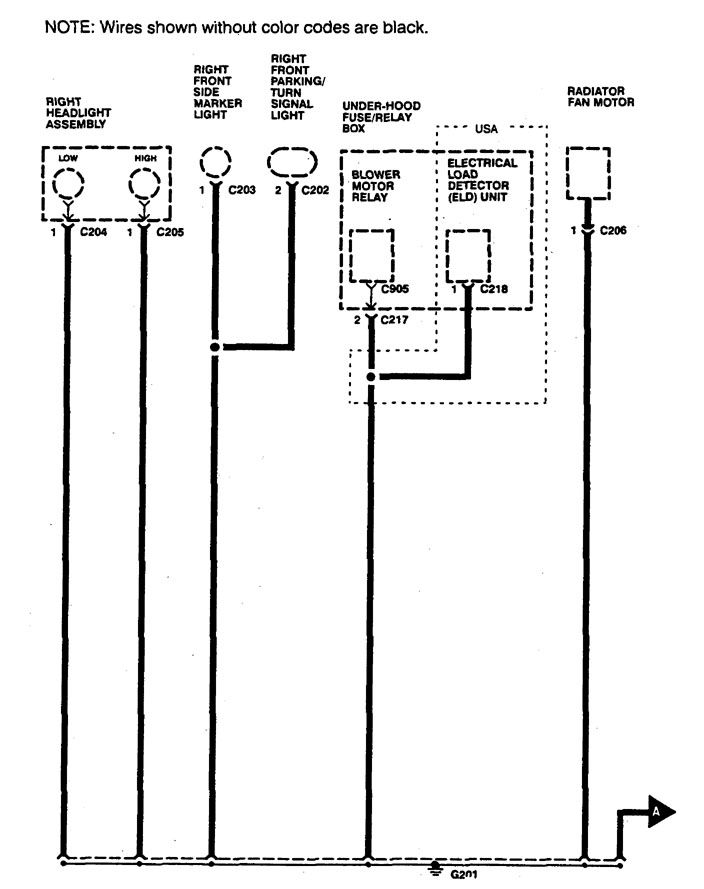

Acura Integra – wiring diagram – ground distribution (part 3)

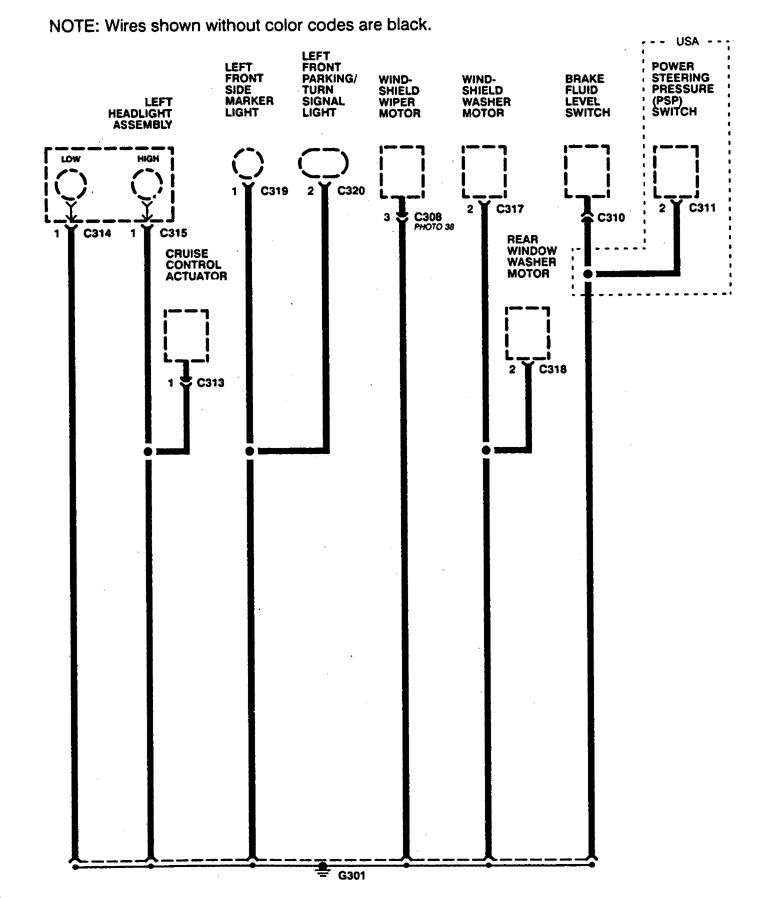

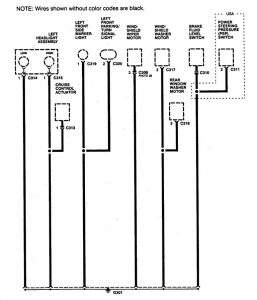

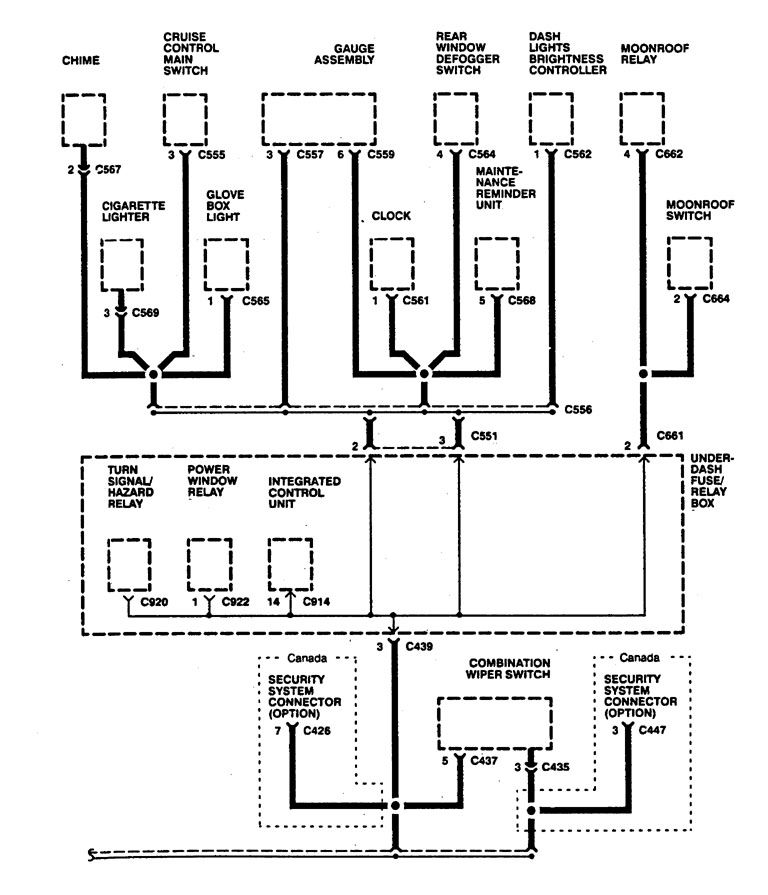

Acura Integra – wiring diagram – ground distribution (part 4)

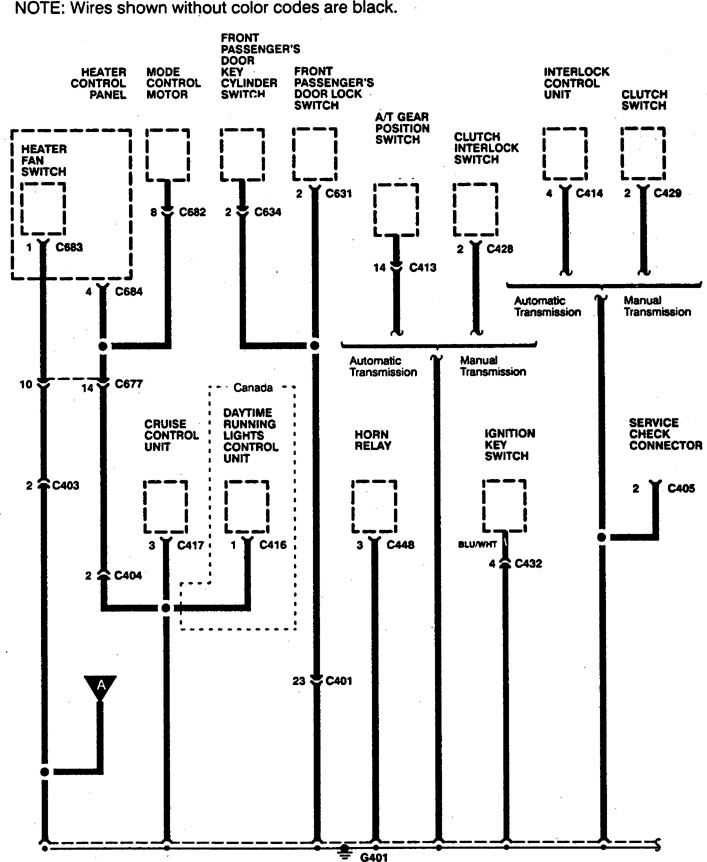

Acura Integra – wiring diagram – ground distribution (part 5)
Acura Integra – wiring diagram – ground distribution (part 6)

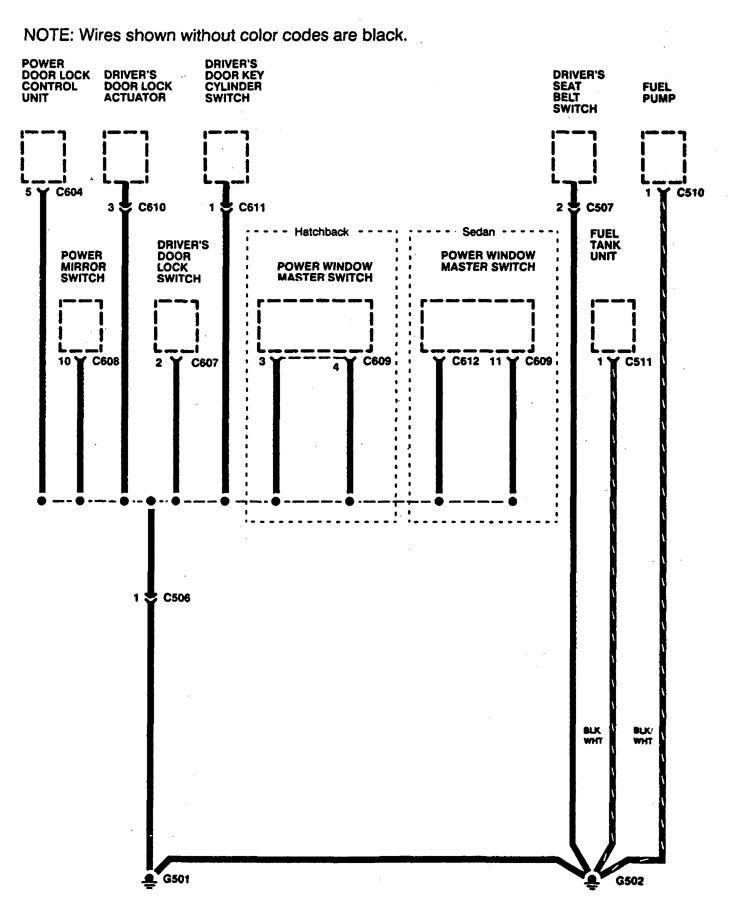

Acura Integra – wiring diagram – ground distribution (part 7)

Version 2

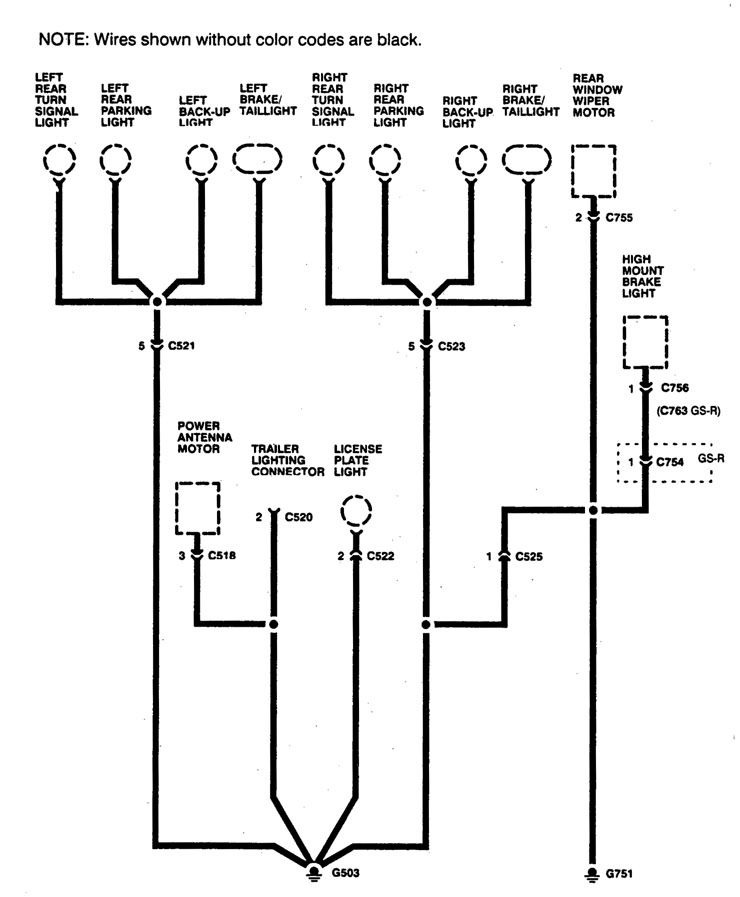

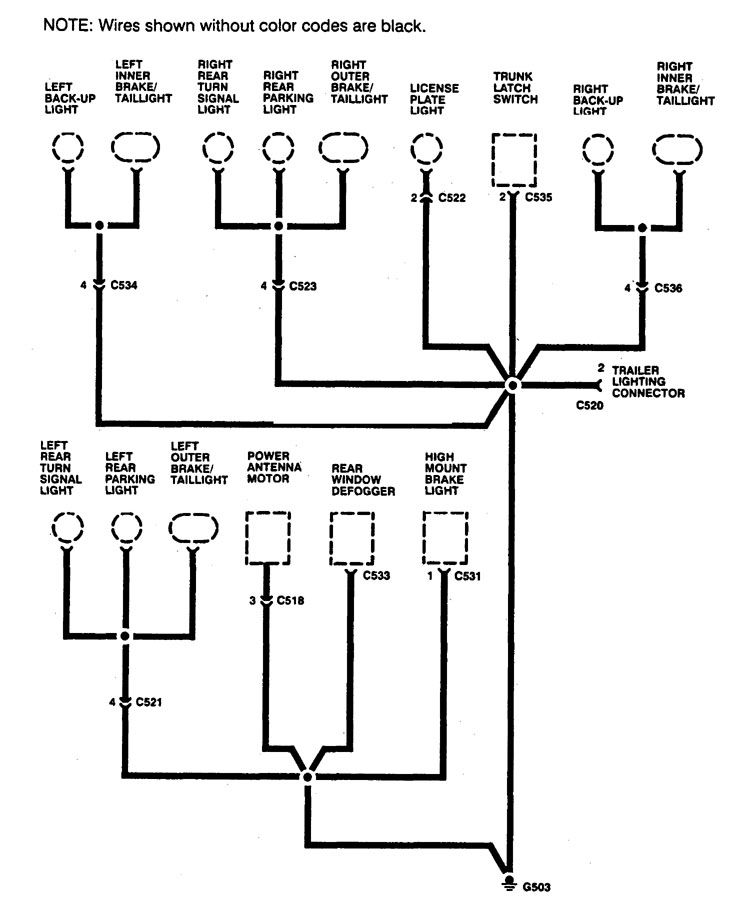

Acura Integra – wiring diagram – ground distribution

Version 3

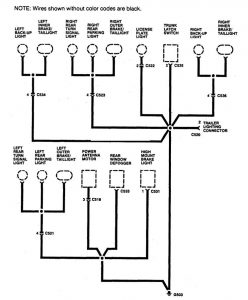

Acura Integra – wiring diagram – ground distribution

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
