Acura Integra (1994 – 1996) – wiring diagrams – dome lamp

Acura Integra (1994 – 1996) – wiring diagrams – dome lamp

Year of productions: 1994, 1995, 1996

Dome lamp

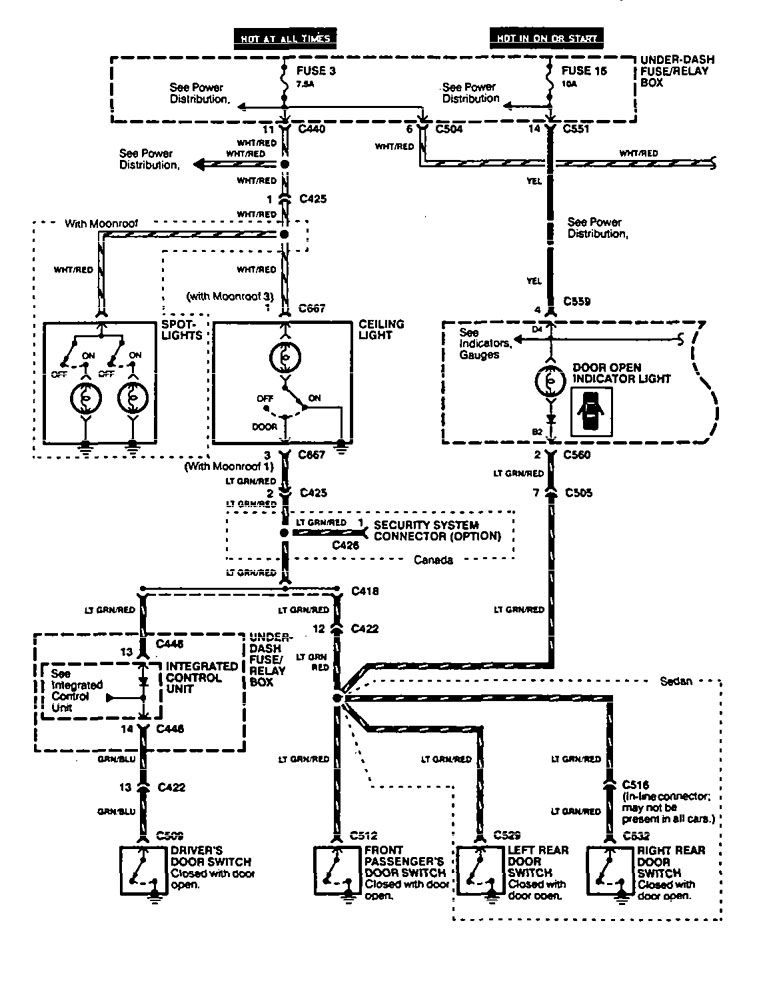

Acura Integra – wiring diagram – dome lamp (part 1)

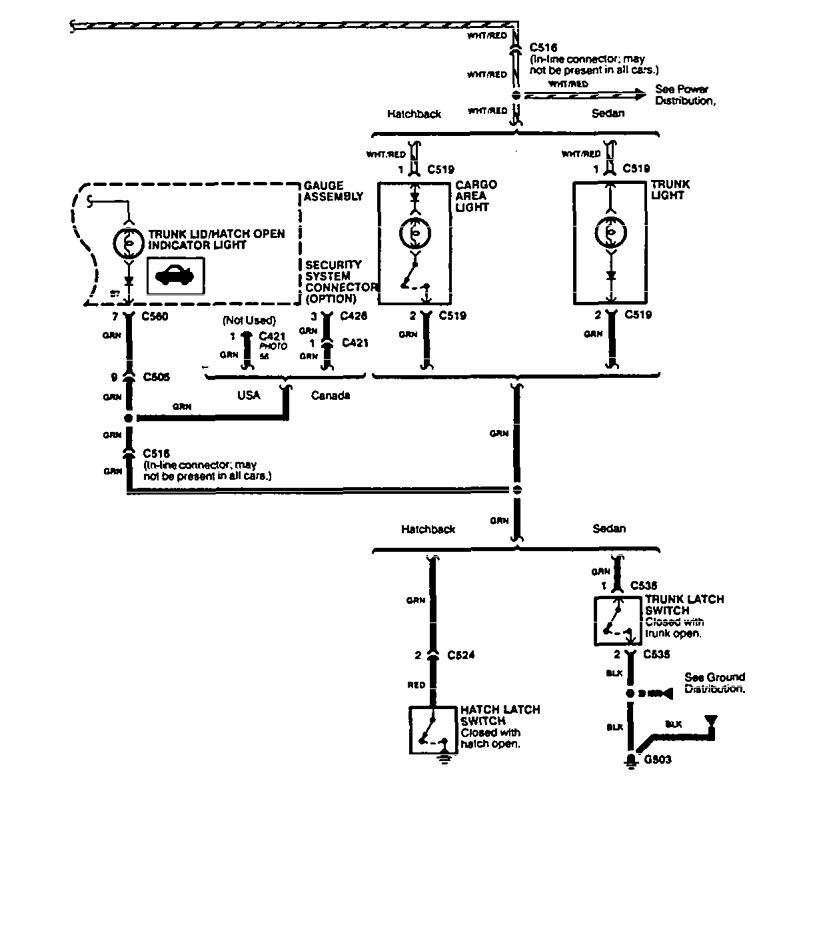

Acura Integra – wiring diagram – dome lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
