Acura Integra (1994 – 1997) – wiring diagrams – fog lamp

Acura Integra (1994 – 1997) – wiring diagrams – fog lamp

Year of productions: 1994, 1995, 1996, 1997

Fog lamp

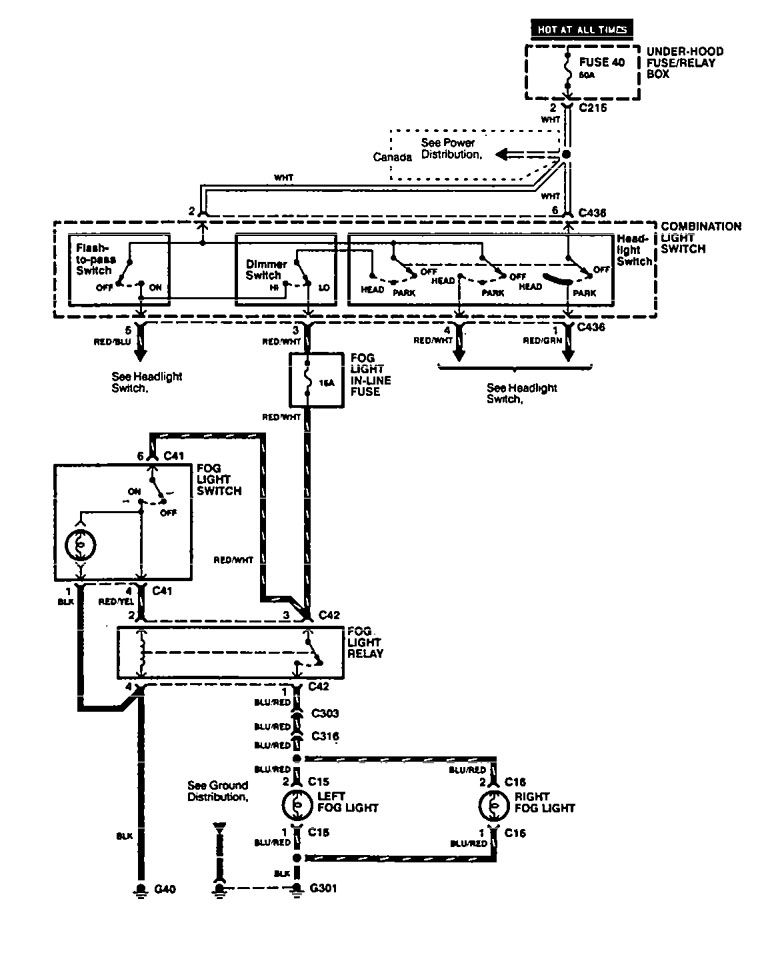

Acura Integra – wiring diagram – fog lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
