Acura Integra (1994 – 1997) – wiring diagrams – fuse block
Year of productions: 1994, 1995, 1996, 1997

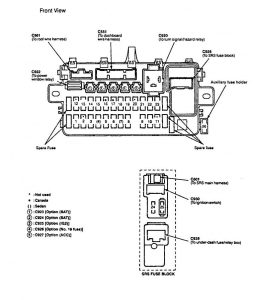

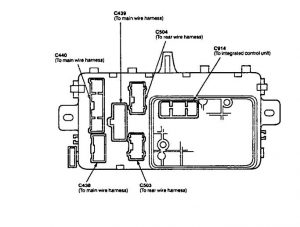

Fuse block
| Fuse number | Fuse name | Ampere rating [A] | Component or Circuit protected |
| 1 | SUN ROOF | 30 | Moonrool motor |
| 2 | POWER SEAT SLIDE | — | Not used |
| 3 | INTERIOR LIGHT | 7,5 | Integrated control unit, Ceiling light, Power antenna motor, Data link connector (DLC) |
| 4 | RR !I POWER WINDOW | 20 | Right rear power window motor (Sedan) |
| 5 | FR L POWER WINDOW | 20 | Driver’s power window motor |
| 6 | POWER DOOR LOCK | 20 | Power door lock control un11 |
| 7 | RR l POWER WINDOW | 20 | Left rear power window motor (Sedan) |
| 8 | FR R POWER WINDOW | 20 | Passenger’s power windOw motor9 |
| 9 | R HEADLIGHT HIGH BEAM | 10 | Right headlight (High beam) |
| 10 | L HEADLIGHT HIGH BEAM | 10 | Left headlight (High beam), High beam indicator light |
| 11 | HEAD LIGHT WASHER | — | Not used |
| 12 | ACG (IG) | — | Not used |
| 13 | RROEF RLY, HEATER MOTOR RLY, COOLING FAN MOTOR RLY | 7,5 | Rear window defogger, A/C, ABS control unit, Power mirrors |
| 14 | WIPER WASHER (PN/ RLY, SIR RLY) | 20 | Wiper/washer, Moonroof relay, Integrated control unit |
| 15 | BACK·UP LIGHT | 10 | Gauges. Clock, Back-up lights, Maintenance reminder unit |
| 16 | — | 7,5 | Daytime running lights control unit (Canada) |
| 17 | — | 10 | Daytime running lights control unit (Canada) |
| 18 | STARTER SIGNAL | 7,5 | ECM, PGM-FI main relay |
| 19 | TAIL LIGHT, INSTRUMENT LIGHT, LICENSE LIGHT | 10 | Dash and console lights, Parking lights, Taillights. License plate lights |
| 20 | — | — | Not used |
| 21 | R HEADLIGHT LOW BEAM | Right headlight (low beam) | |
| 22 | L HEADLIGHT LOW BEAM | Lett headlight (Low beam) | |
| 23 | RADIO CIGARETTE LIGHTER | 15 | Stereo radio/cassette player, Cigarene lighter |
| 24 | ACG lG | 15 | SRS unit, PGM·FI main relay, TCM, Cruise control unit, VSS. ELD un11 (USA) |
| (20 GS.R) | |||
| 25 | S.R.S. | 10 | SRS unit |
| 26 | FR TURN LIGHT | 10 | Tum signaJ/Iuwud relay |

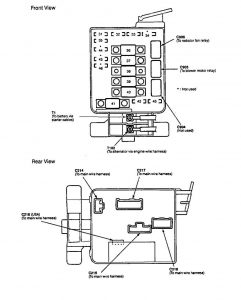

Fuse box
| Fuse number | Fuse name | Ampere rating [A] | Component or Circuit protected |
| 31 | ECU | 15 | PGM·FI main relay |
| 32 | BACK·UP | 7,5 | ECM, TCM, Clock, Stereo radio/cassette player, Maintenance reminder unit |
| 33 | COOIJNG FAN | 20 | Radiator fan relay |
| 34 | — | — | Not used |
| 35 | CONDENSER FAN | 20 | Condenser fan relay, A/C compressor clutch relay |
| 36 | OPTION | 50 | Power distribution |
| 37 | HEATER MOTOR | 40 | Blower controls |
| 38 | RR DEFROSTER | 30 | Rear window defogger |
| 39 | IG | 50 | Ignition switch |
| 40 | LIGHT | 50 | Combination light switch, Daytime running lights control unit (Canada) |
| 41 | BATTERY | 100 | Power distribution |
| 42 | STOP, HORN | 20 | Horns, Brake switch, Key interlock solenoid (Automatic transmission) |
| 43 | HAZARD | 10 | Hazard warning switch |
| 44 | — | — | Not used |
| 45 | — | — | Not used |
| 46 | — | — | Not used |

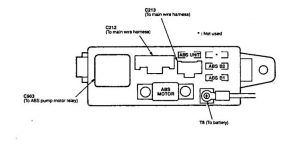

Fuse box (engine compartment)
| Fuse name | Ampere rating [A] | Component or circuit protected |
| ABS B1 | 20 | ABS front fail-safe relay |
| ABS B2 | 15 | ABS rear fail-safe relay, ABS control unit |
| ABS Motor | 40 | ABS pump motor relay |
| ABS Unit | 10 | ABS control unit |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
