Acura Integra (1994 – 1997) – wiring diagrams – hazard lamp

Acura Integra (1994 – 1997) – wiring diagrams – hazard lamp

Year of productions: 1994, 1995, 1996, 1997

Hazard lamp

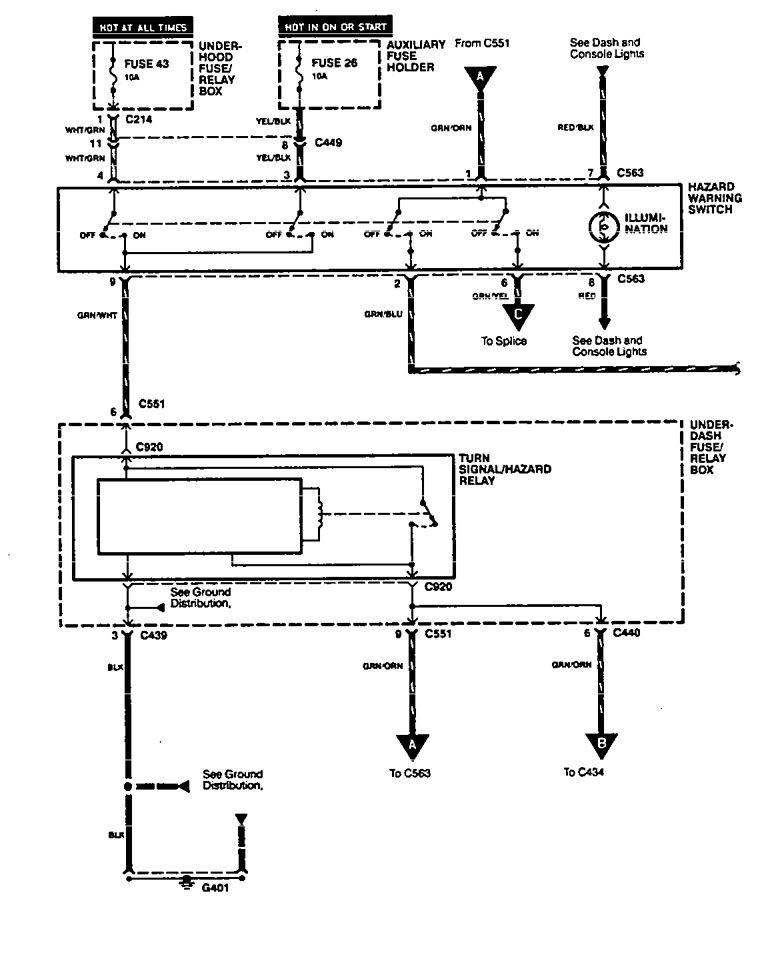

Acura Integra – wiring diagram – hazard lamp (part 1)

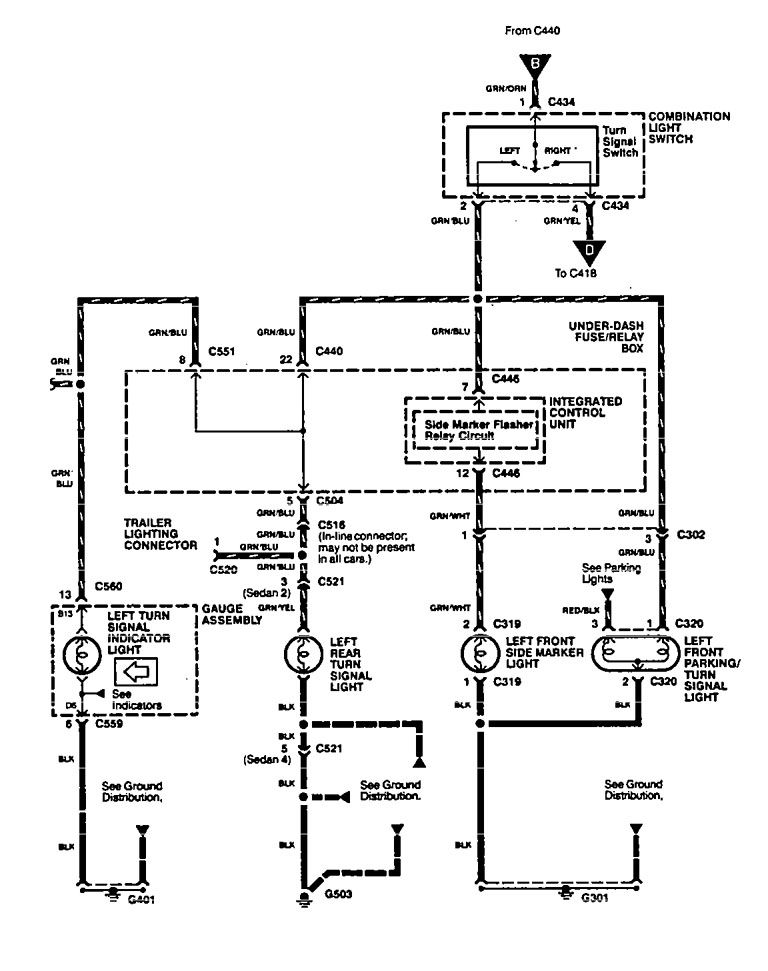

Acura Integra – wiring diagram – hazard lamp (part 2)

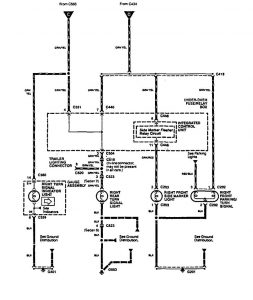

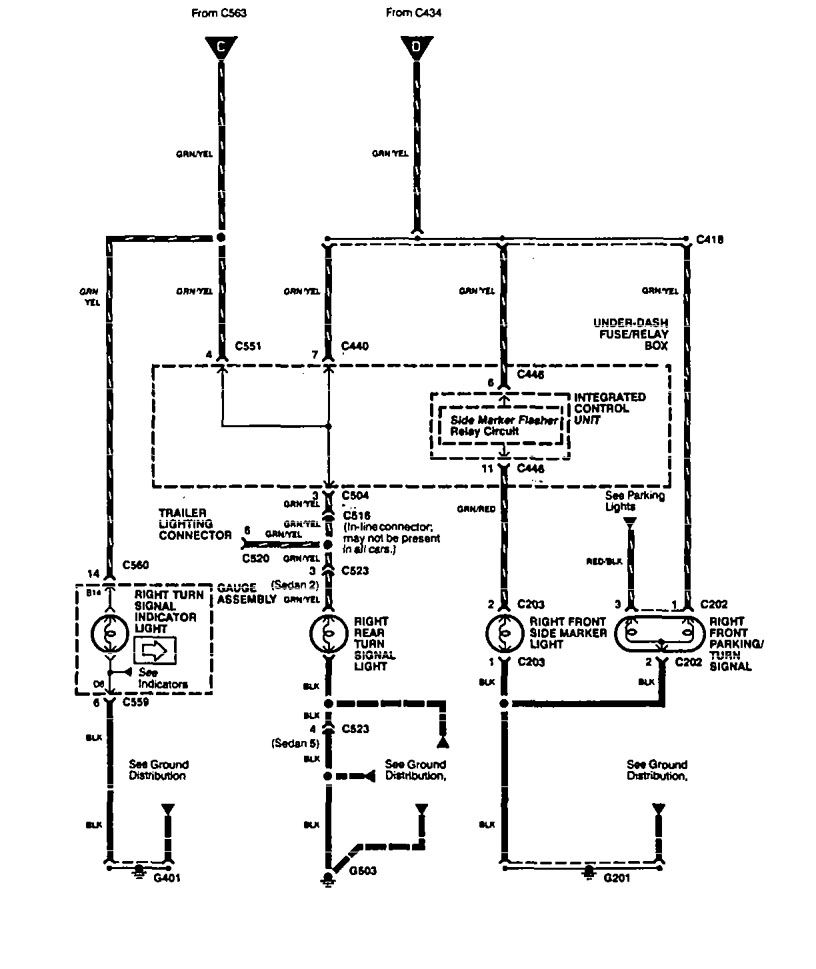

Acura Integra – wiring diagram – hazard lamp (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
