Acura Integra (1994) – wiring diagrams – HVAC control

Acura Integra (1994) – wiring diagrams – HVAC control

Year of productions: 1994

HVAC control

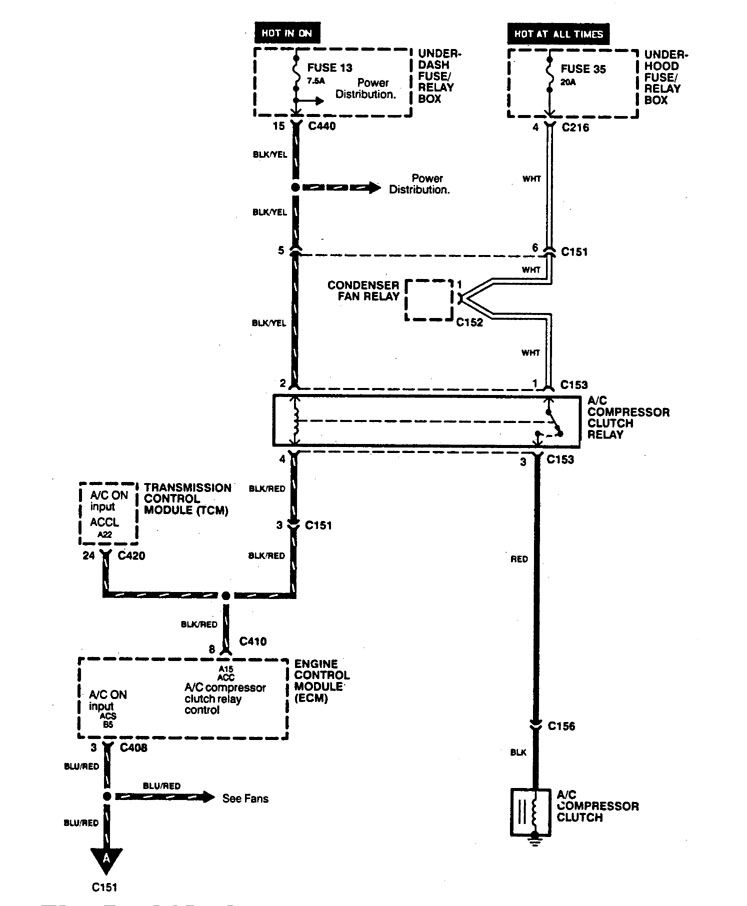

Acura Integra – wiring diagram – HVAC controls (part 1)

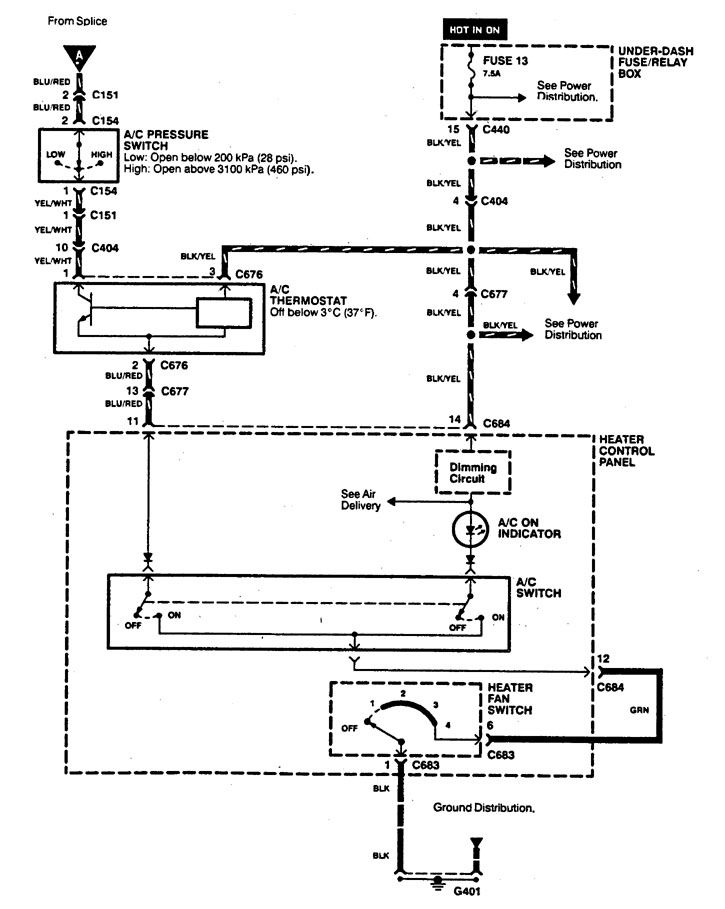

Acura Integra – wiring diagram – HVAC controls (part 2)

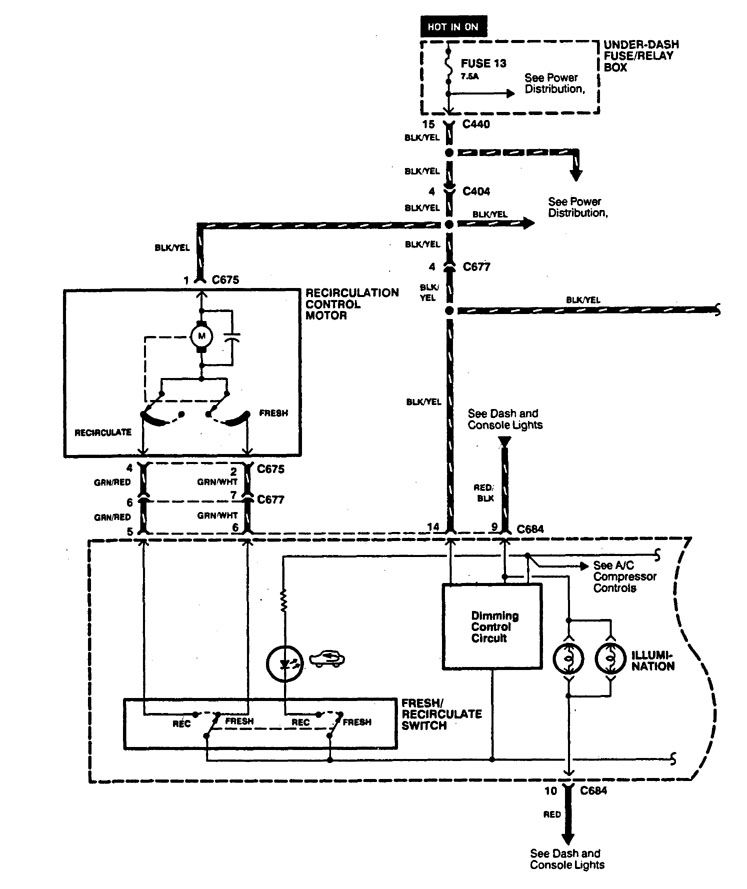

Acura Integra – wiring diagram – HVAC controls (part 3)

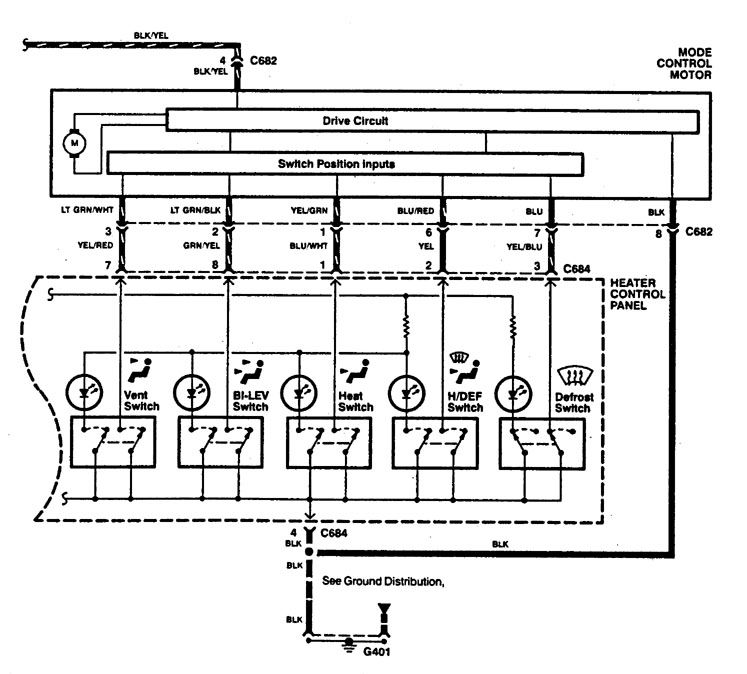

Acura Integra – wiring diagram – HVAC controls (part 4)

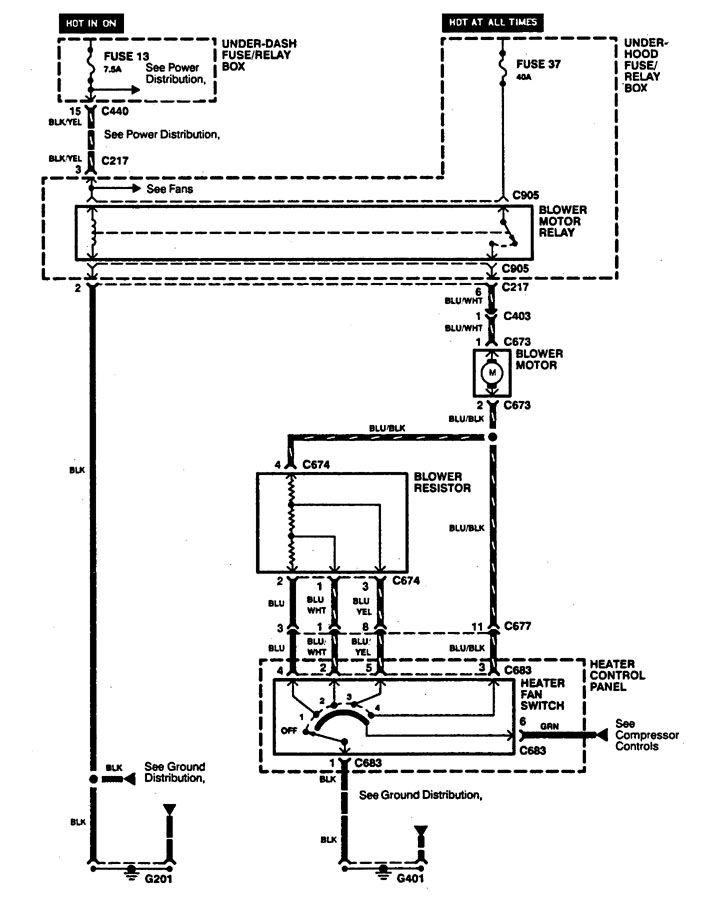

Acura Integra – wiring diagram – HVAC controls (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
