Acura Integra (1994) – wiring diagrams – turn signal lamp

Acura Integra (1994) – wiring diagrams – turn signal lamp

Year of productions: 1994

Turn signal lamp

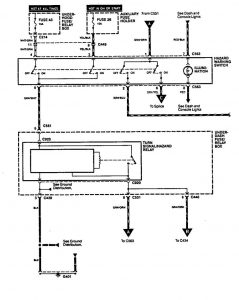

Acura Integra – wiring diagram – turn signal lamp (part 1)

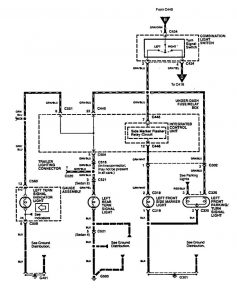

Acura Integra – wiring diagram – turn signal lamp (part 2)

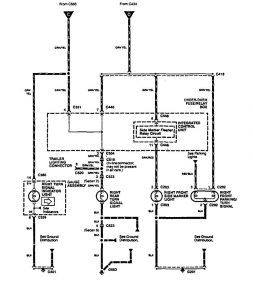

Acura Integra – wiring diagram – turn signal lamp (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
