Acura Integra (1995 – 1997) – wiring diagrams – air bags

Acura Integra (1995 – 1997) – wiring diagrams – air bags

Year of productions: 1995, 1996, 1997

Air bags

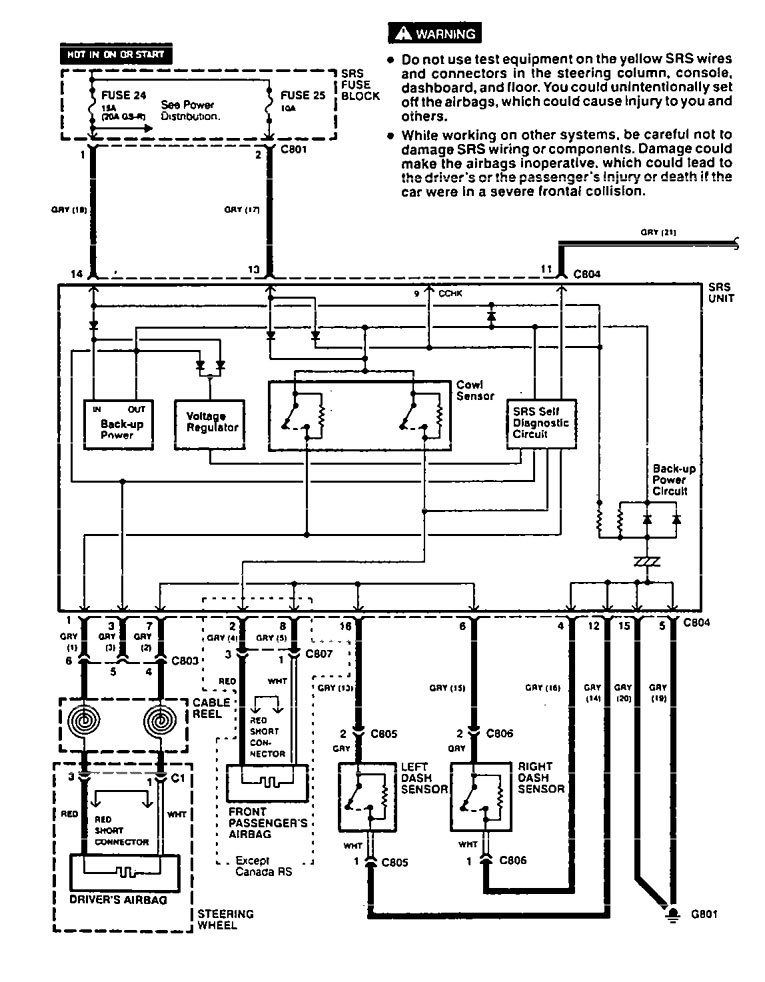

Acura Integra – wiring diagram – air bags (part 1)

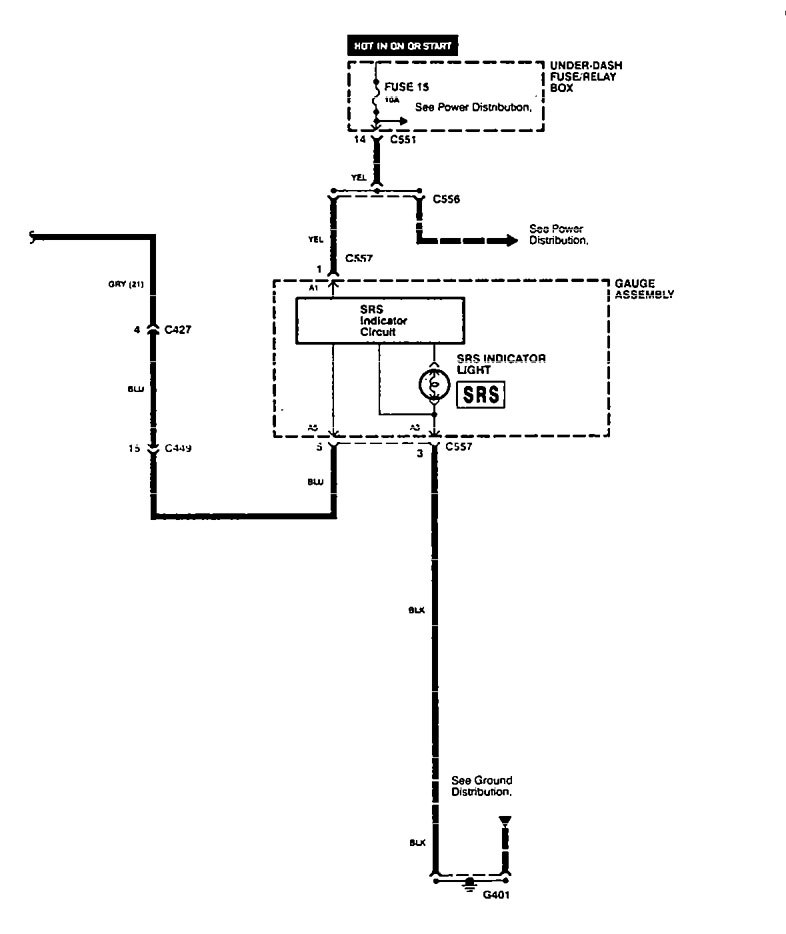

Acura -Integra- wiring diagram- air bags (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
