Acura Integra (1995 – 1997) – wiring diagrams – cargo lamp

Acura Integra (1995 – 1997) – wiring diagrams – cargo lamp

Year of productions: 1995, 1996, 1997

Cargo lamp

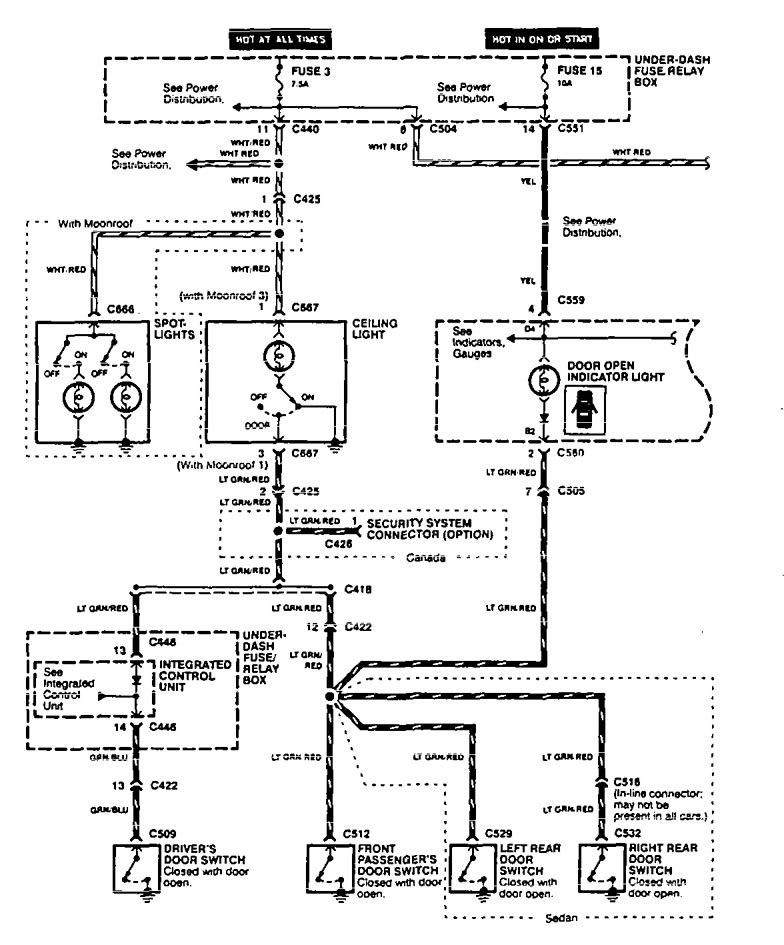

Acura Integra – wiring diagram – cargo lamp (part 1)

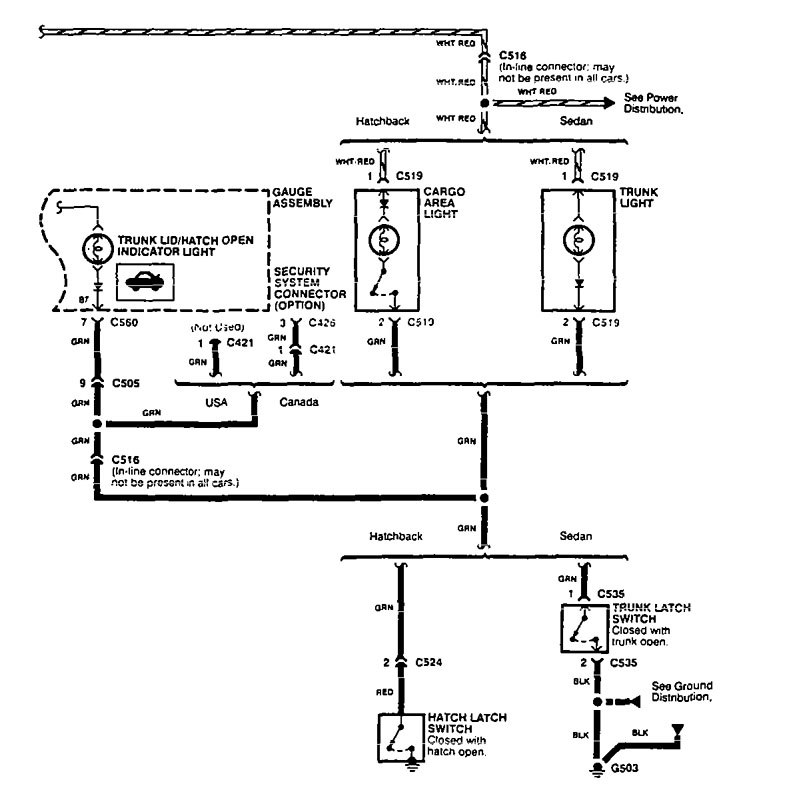

Acura Integra – wiring diagram – cargo lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
