Acura Integra (1995 – 1997) – wiring diagrams – license plate lamp

Acura Integra (1995 – 1997) – wiring diagrams – license plate lamp

Year of productions: 1995, 1996, 1997

License plate lamp

Version 1

Acura Integra – wiring diagram – license plate lamp

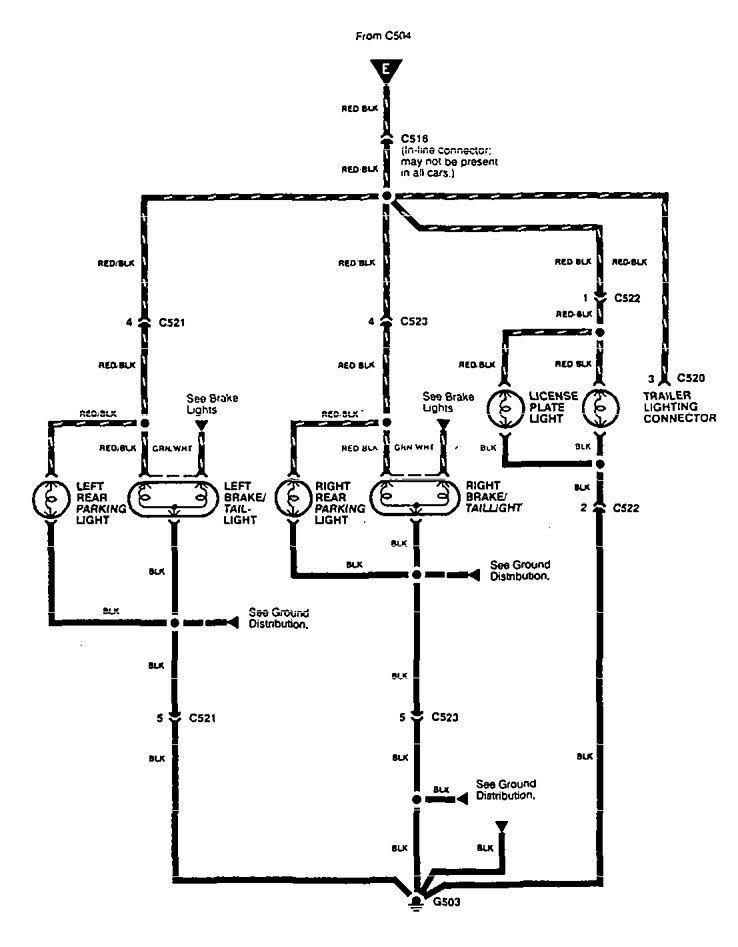

Version 2

Acura Integra – wiring diagram – license plate lamp

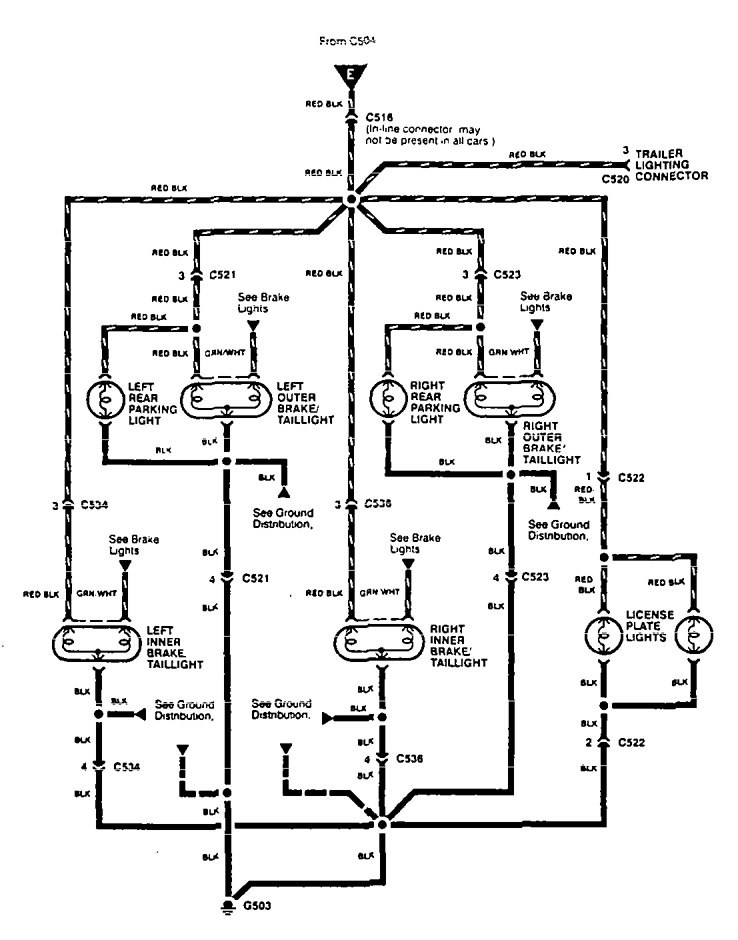

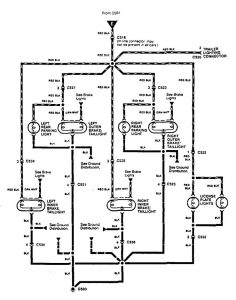

Version 3

Acura Integra – wiring diagram – license plate lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
