Acura Integra (1995) – wiring diagrams – instrumentation

Acura Integra (1995) – wiring diagrams – instrumentation

Year of productions: 1995

Instrumentation

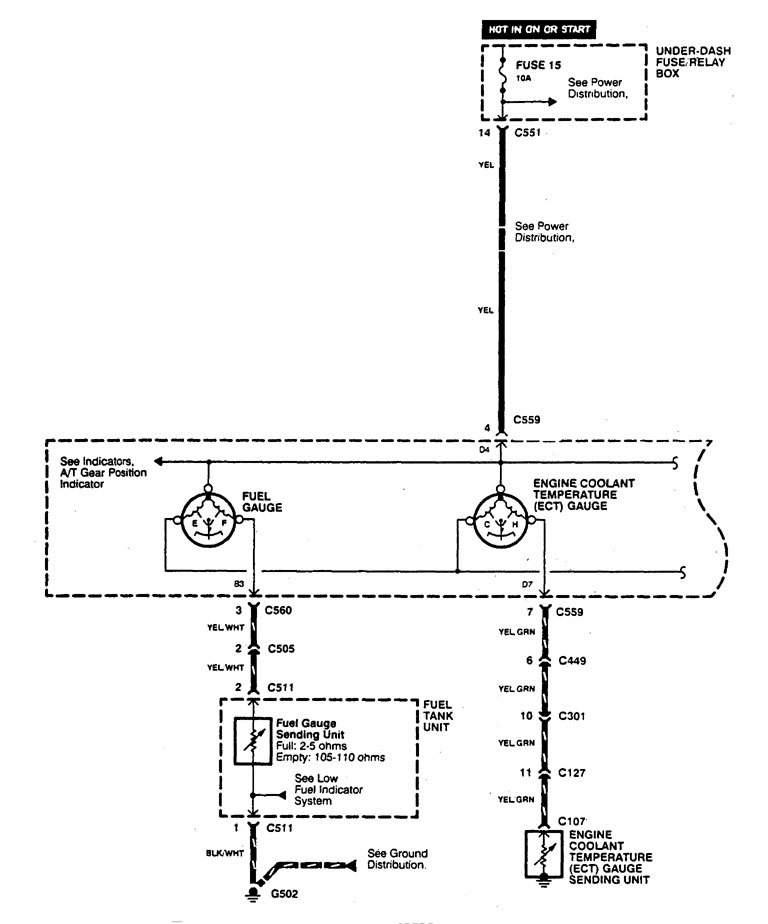

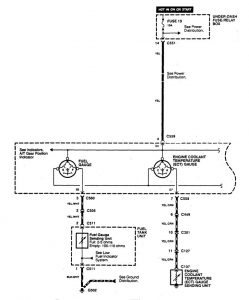

Acura Integra – wiring diagram – instrumentation (part 1)

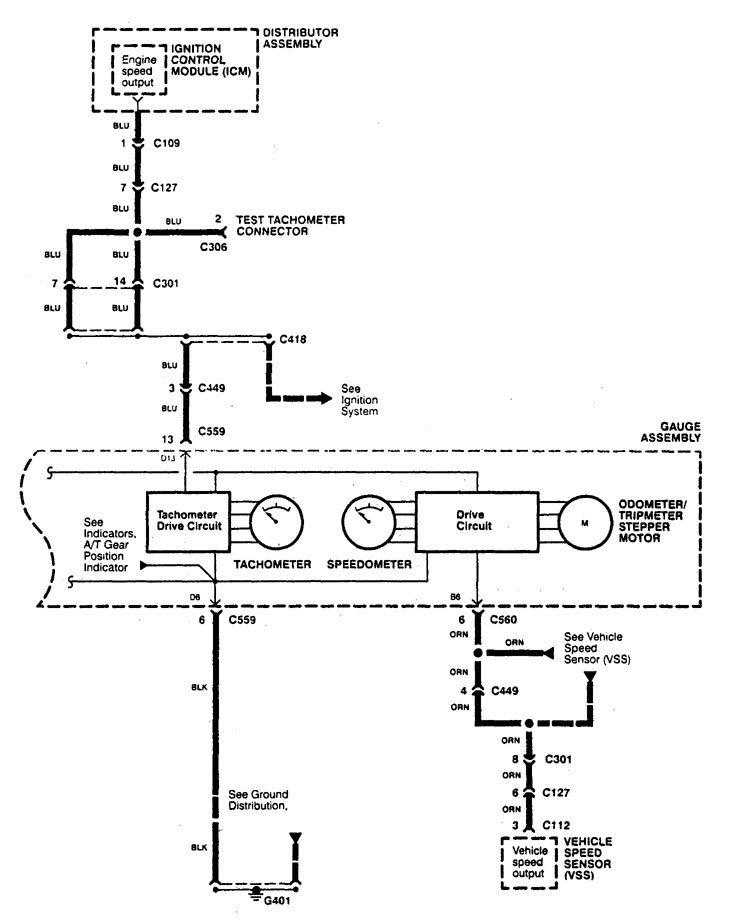

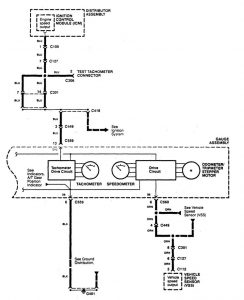

Acura Integra – wiring diagram – instrumentation (part 2)

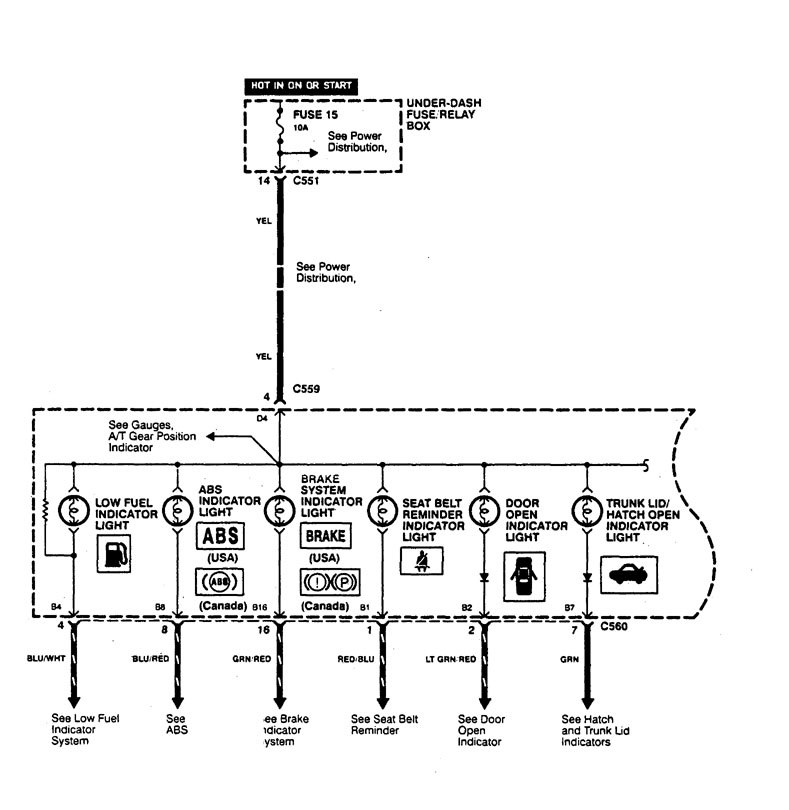

Acura Integra – wiring diagram – instrumentation (part 3)

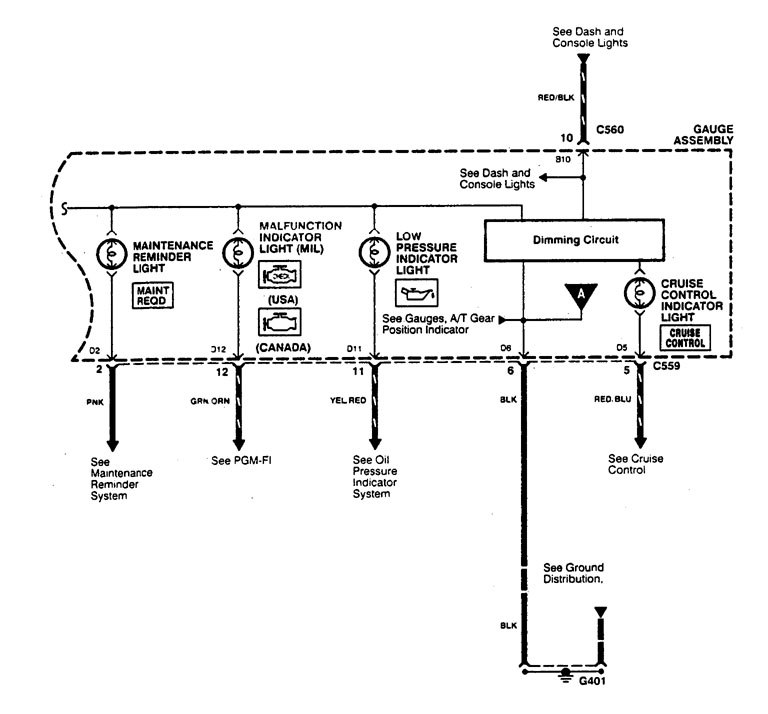

Acura Integra – wiring diagram – instrumentation (part 4)

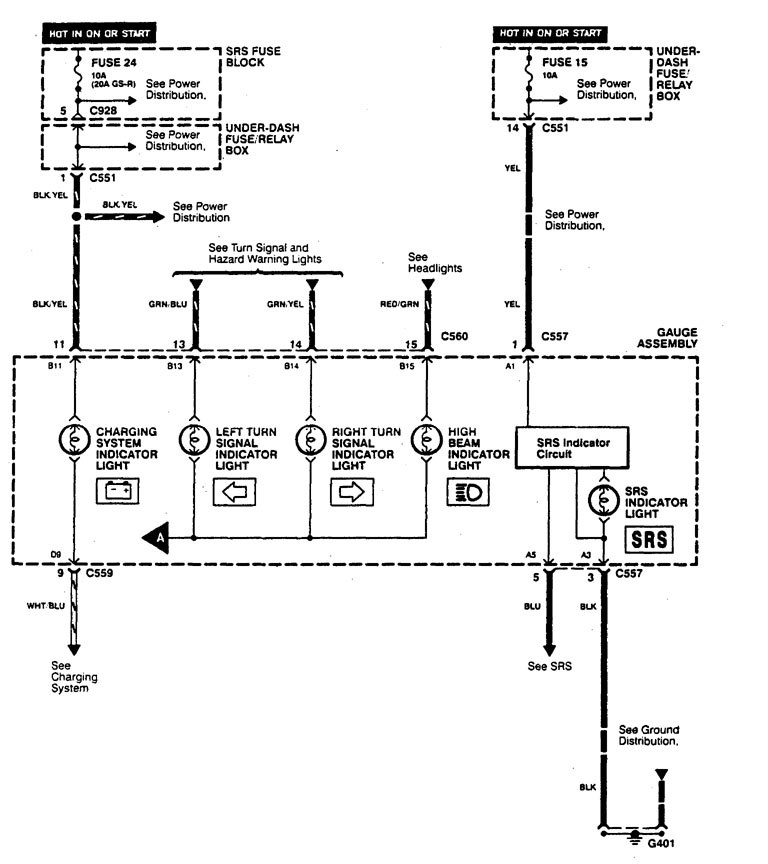

Acura Integra – wiring diagram – instrumentation (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
