Acura Integra (1996 – 1997) – wiring diagrams – fuel control

Acura Integra (1996 – 1997) – wiring diagrams – fuel control

Year of productions: 1996, 1997

Fuel control

Version 1

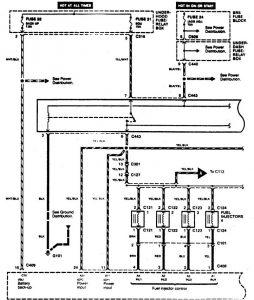

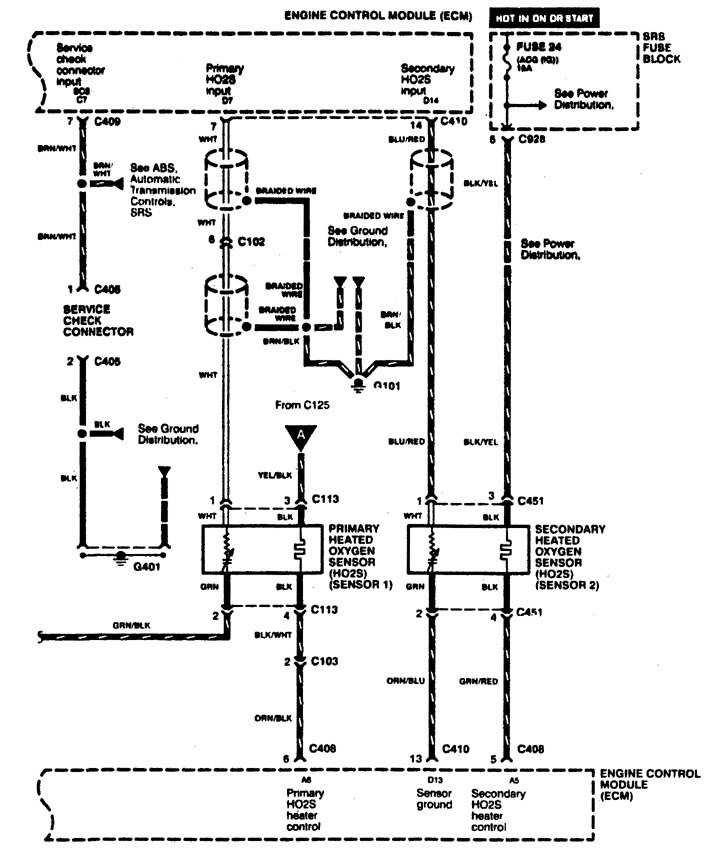

Acura Integra – wiring diagram – fuel controls (part 1)

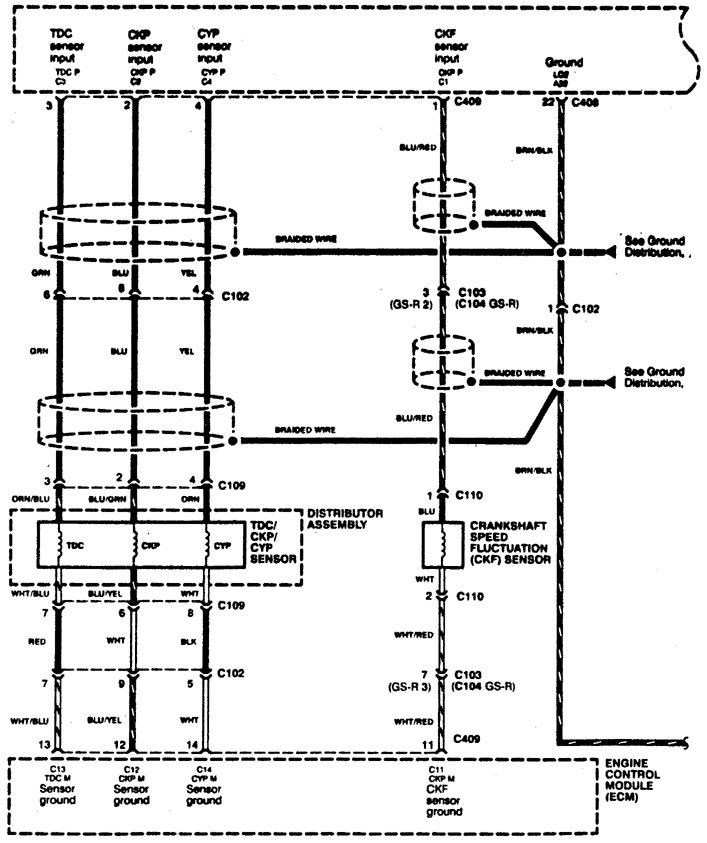

Acura Integra – wiring diagram – fuel controls (part 2)

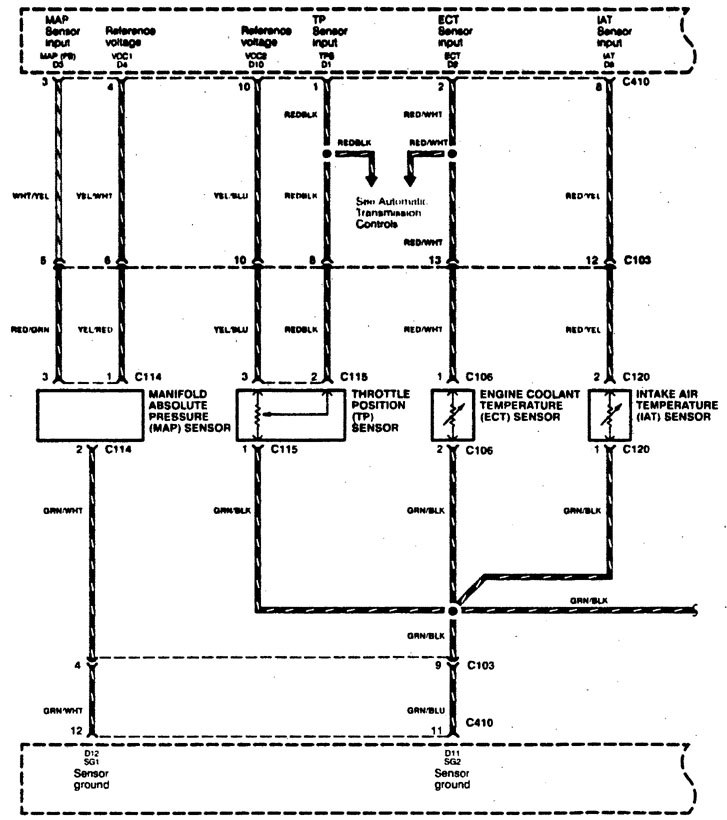

Acura Integra – wiring diagram – fuel controls (part 3)

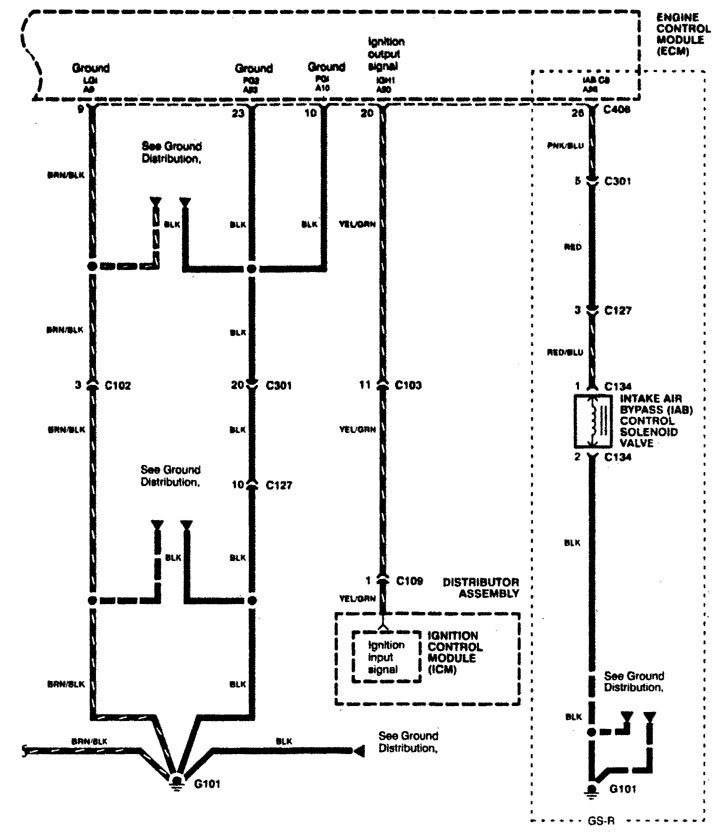

Acura Integra – wiring diagram – fuel controls (part 4)

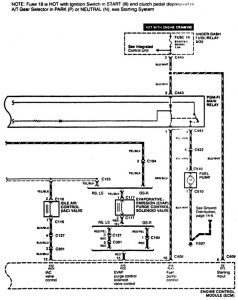

Acura Integra – wiring diagram – fuel controls (part 5)

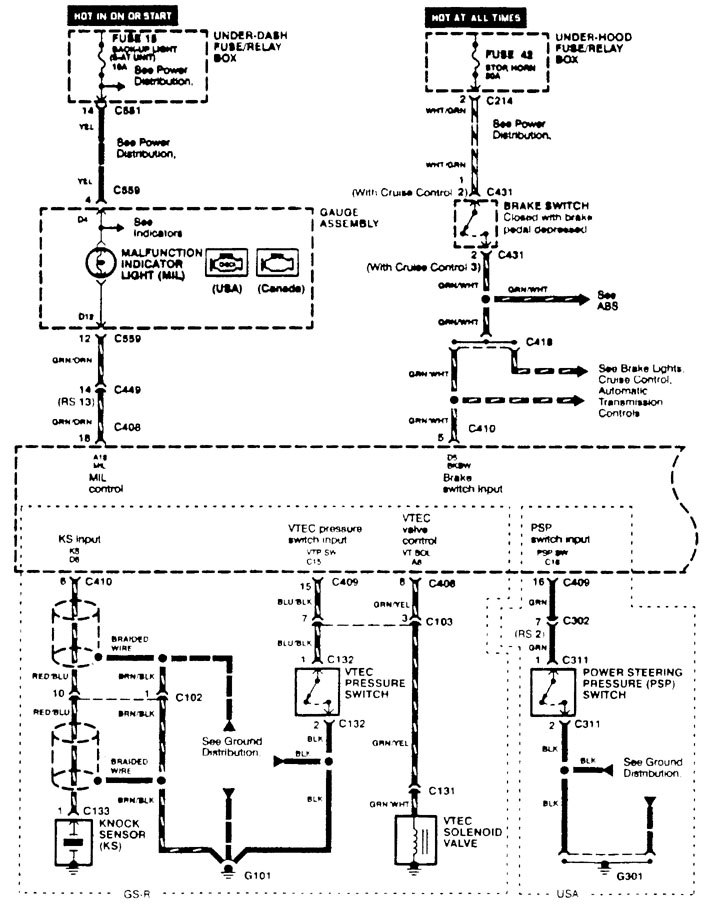

Acura Integra – wiring diagram – fuel controls (part 6)

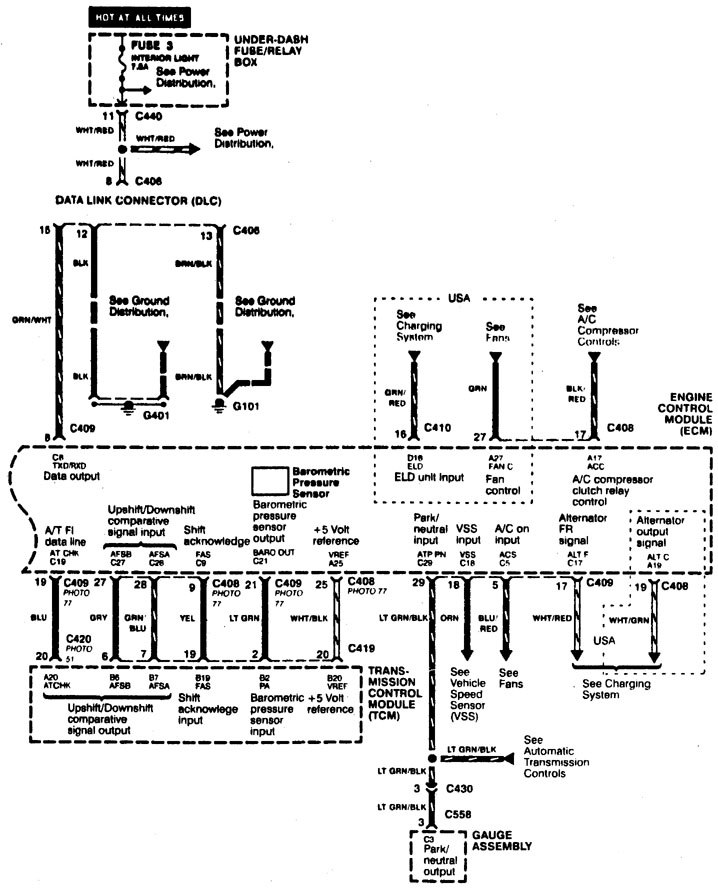

Acura Integra – wiring diagram – fuel controls (part 7)
Acura Integra – wiring diagram – fuel controls (part 8)

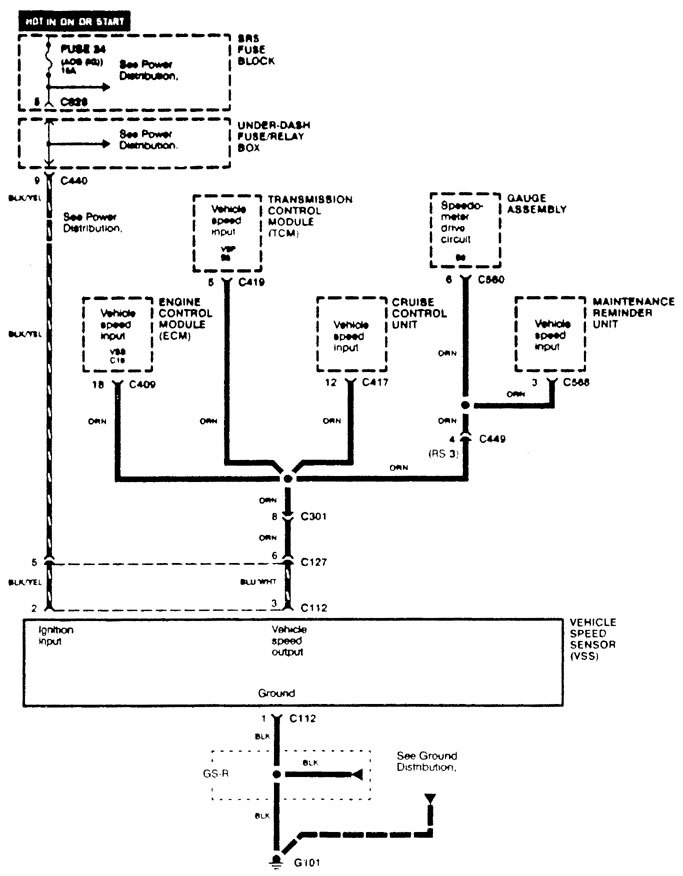

Version 2

Acura Integra – wiring diagram – fuel controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
