Acura Integra (1997) – wiring diagrams – HVAC control

Acura Integra (1997) – wiring diagrams – HVAC control

Year of productions: 1997

HVAC control

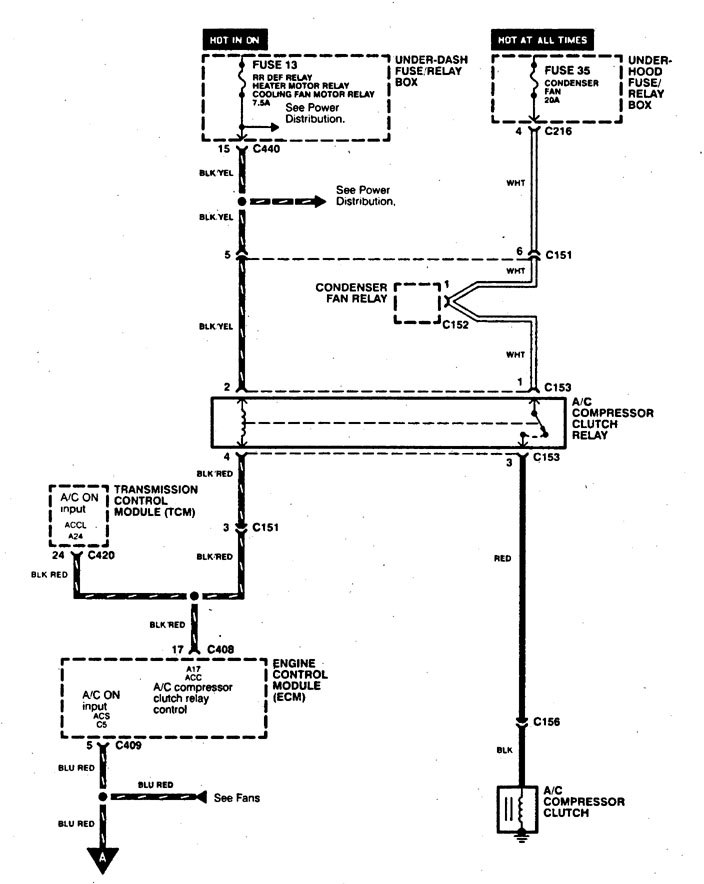

Acura Integra – wiring diagram – HVAC control (part 1)

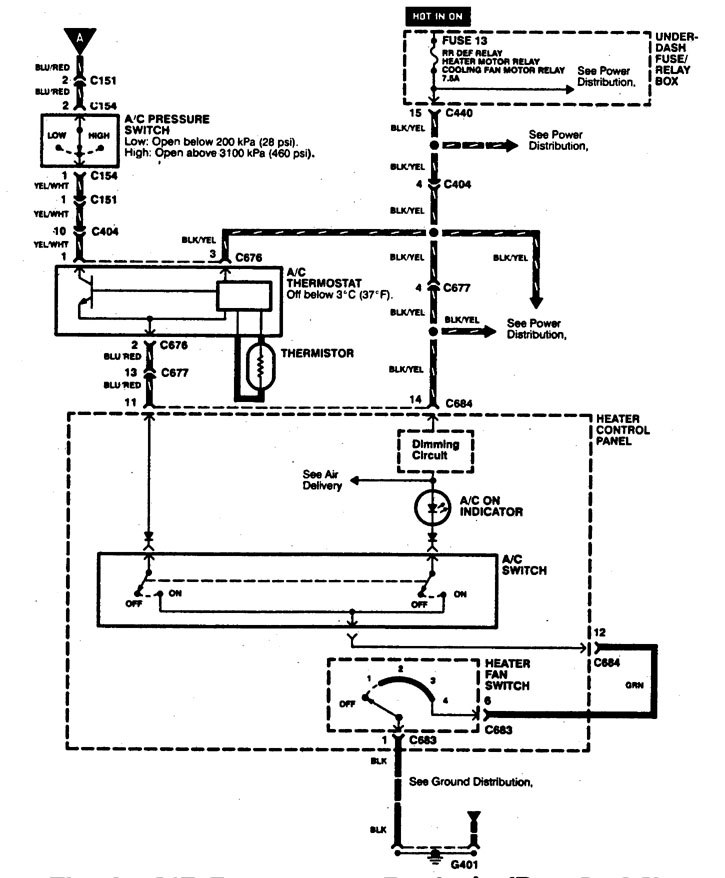

Acura Integra – wiring diagram – HVAC control (part 2)

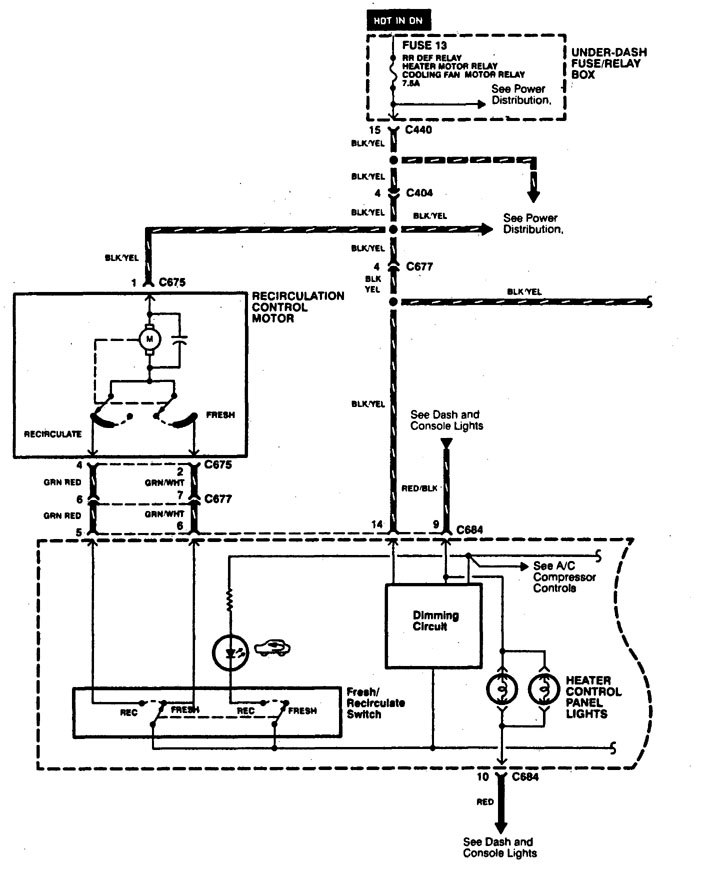

Acura Integra – wiring diagram – HVAC control (part 3)
Acura Integra – wiring diagram – HVAC control (part 4)

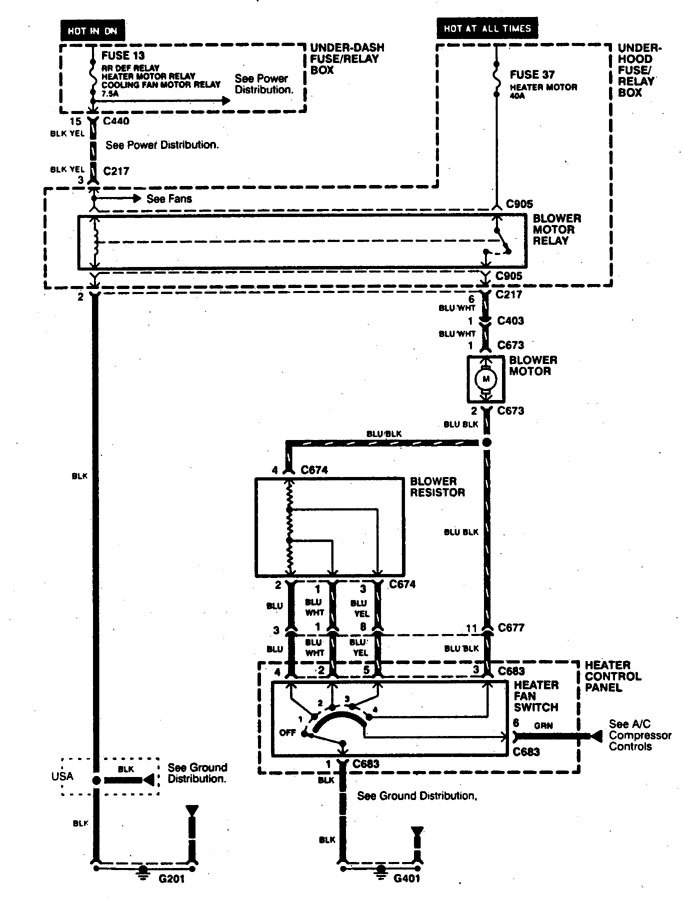

Acura Integra – wiring diagram – HVAC control (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
