Acura Integra (1997) – wiring diagrams – indicator lamp

Acura Integra (1997) – wiring diagrams – indicator lamp

Year of productions: 1997

Indicator lamp

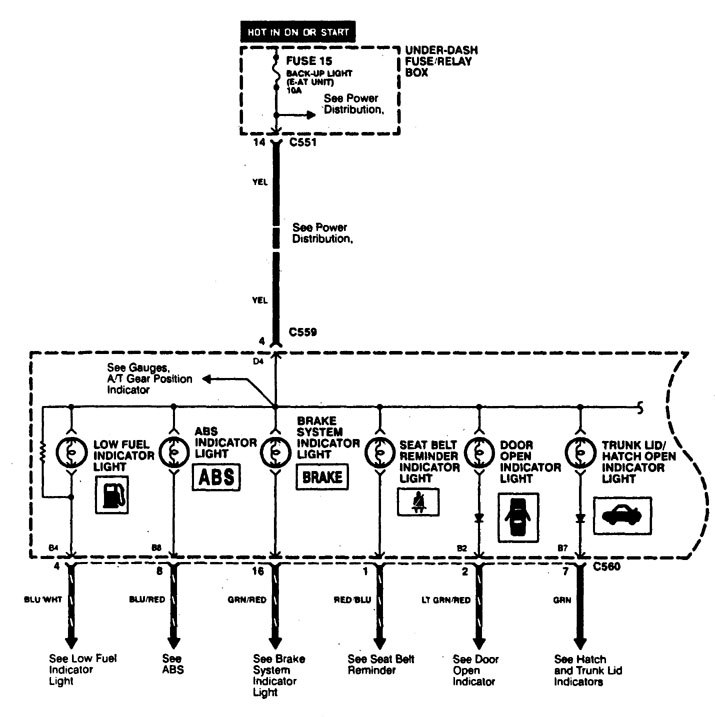

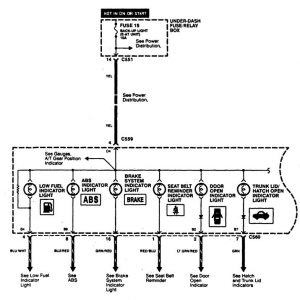

Acura Integra – wiring diagram – indicator lamp (part 1)

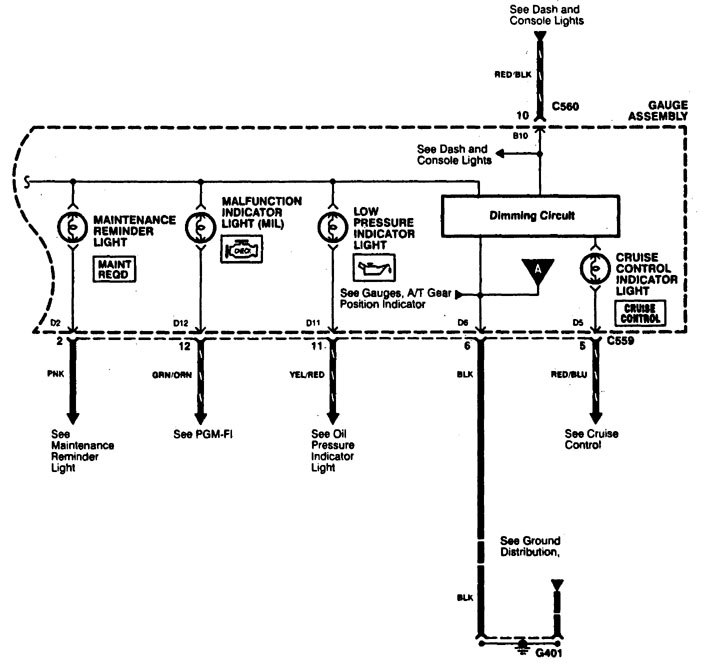

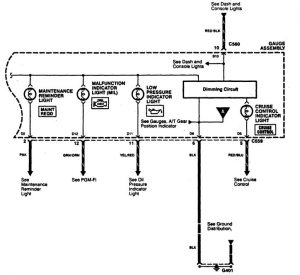

Acura Integra – wiring diagram – indicator lamp (part 2)

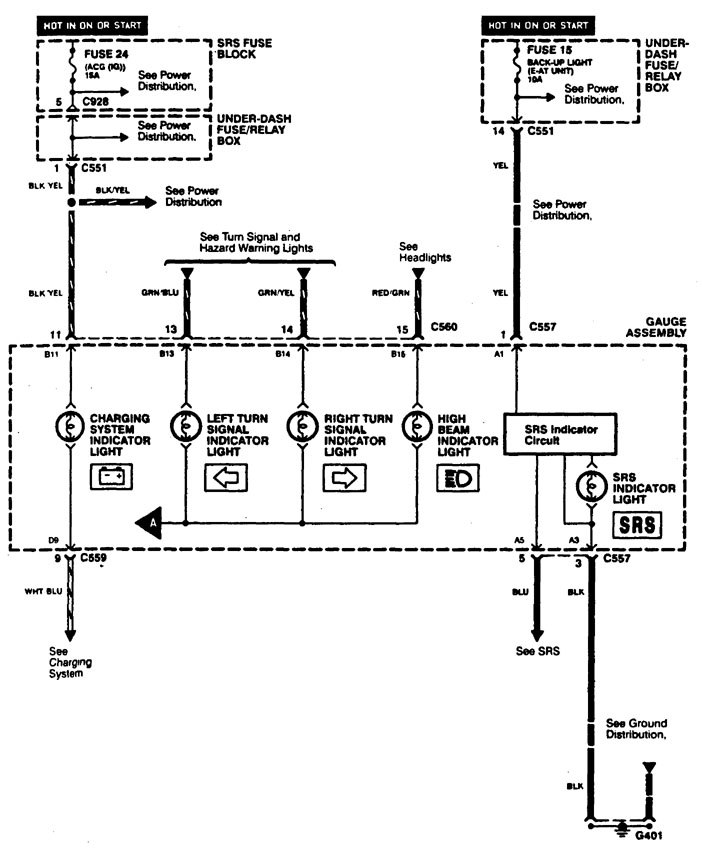

Acura Integra – wiring diagram – indicator lamp (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
