Acura Integra (1997) – wiring diagrams – power distribution

Acura Integra (1997) – wiring diagrams – power distribution

Year of productions: 1997

Power distribution

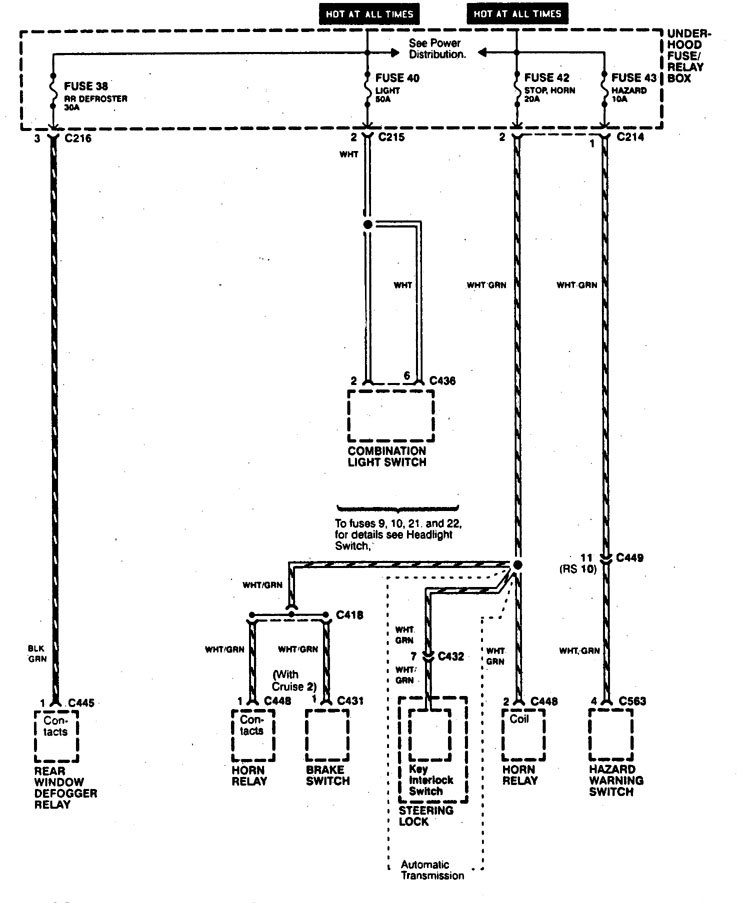

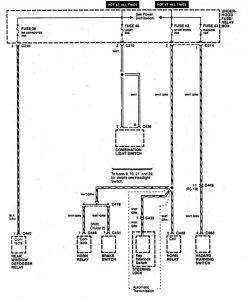

Acura Integra – wiring diagram – power distribution (part 1)

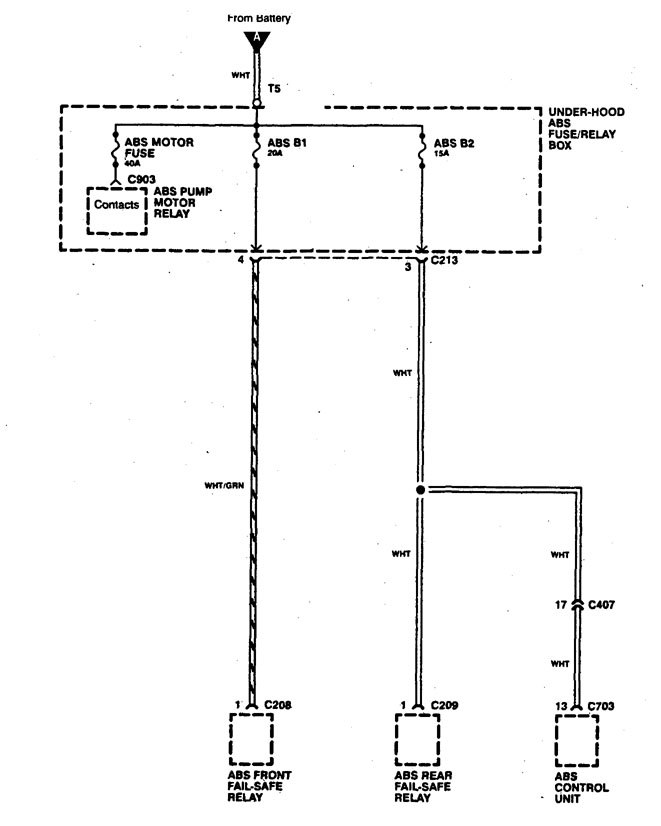

Acura Integra – wiring diagram – power distribution (part 2)

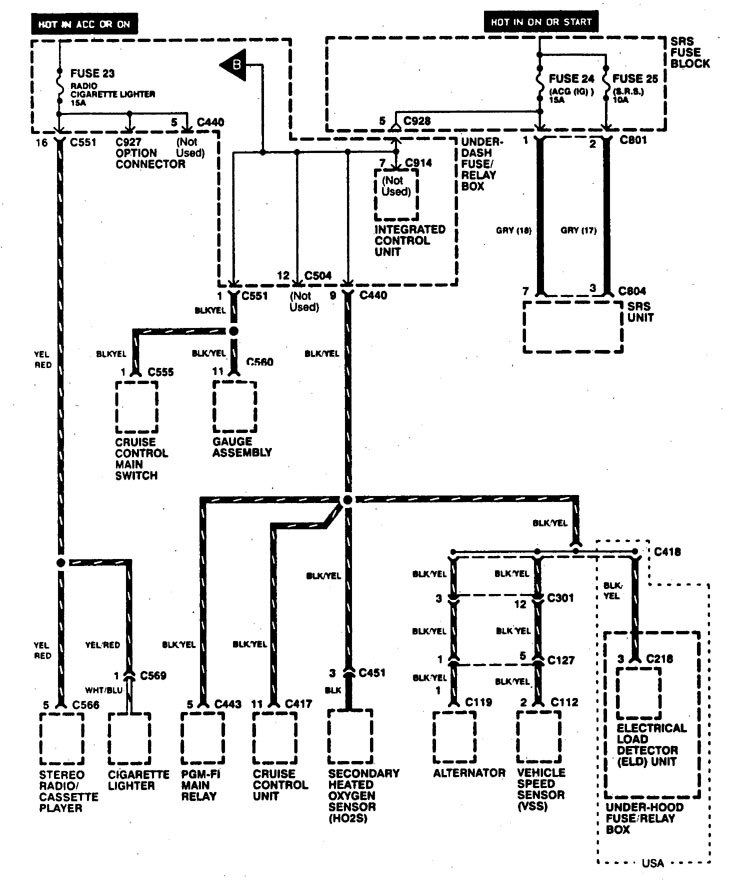

Acura Integra – wiring diagram – power distribution (part 3)

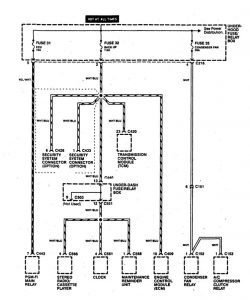

Acura Integra – wiring diagram – power distribution (part 4)

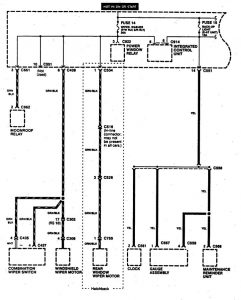

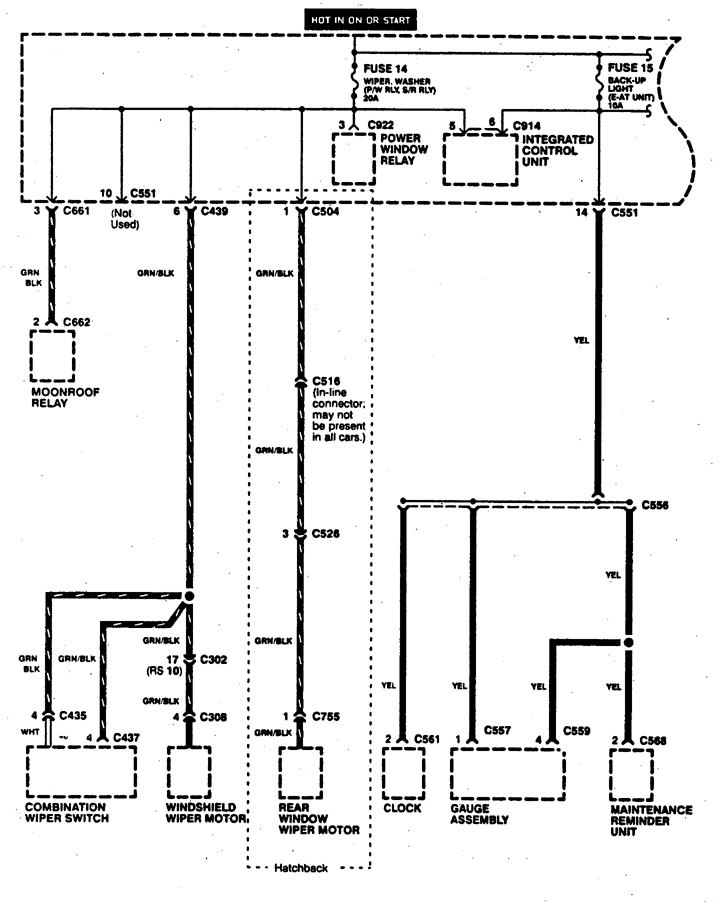

Acura Integra – wiring diagram – power distribution (part 5)

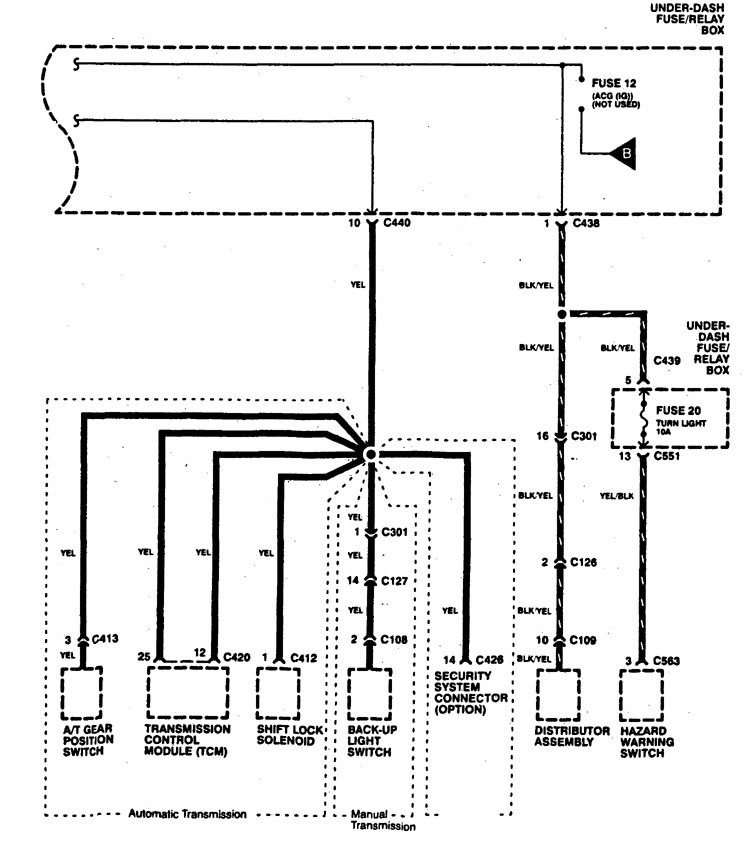

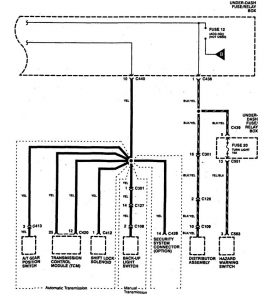

Acura Integra – wiring diagram – power distribution (part 6)

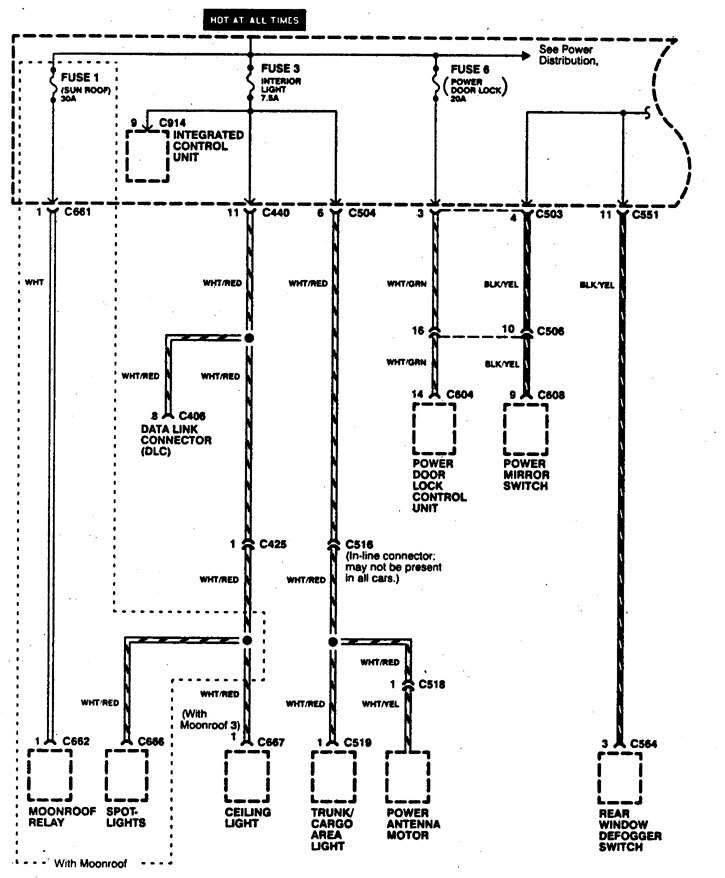

Acura Integra – wiring diagram – power distribution (part 7)

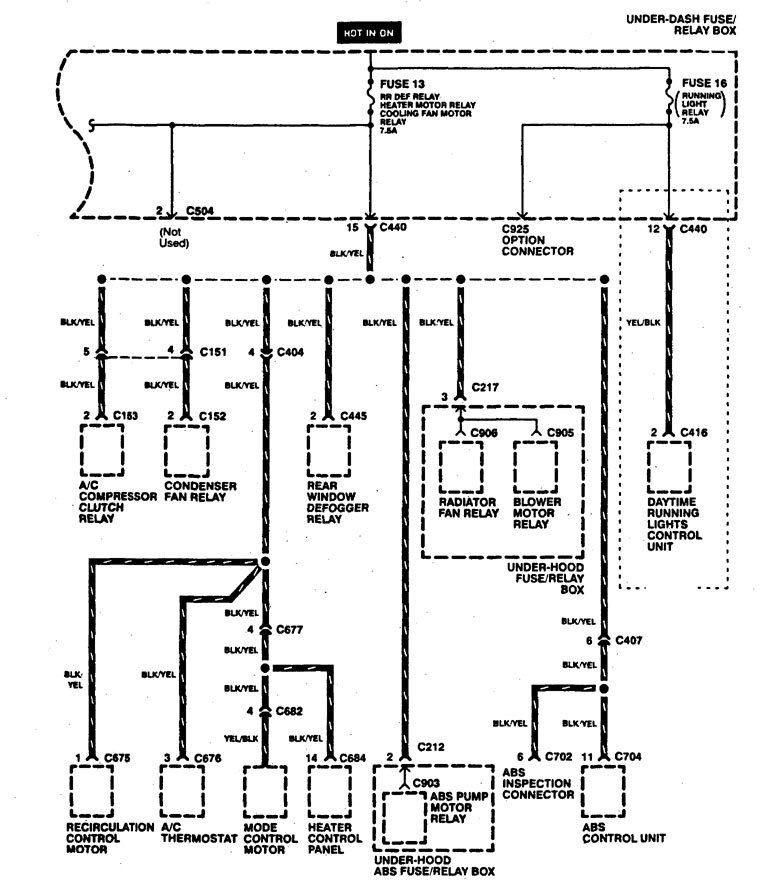

Acura Integra – wiring diagram – power distribution (part 8)

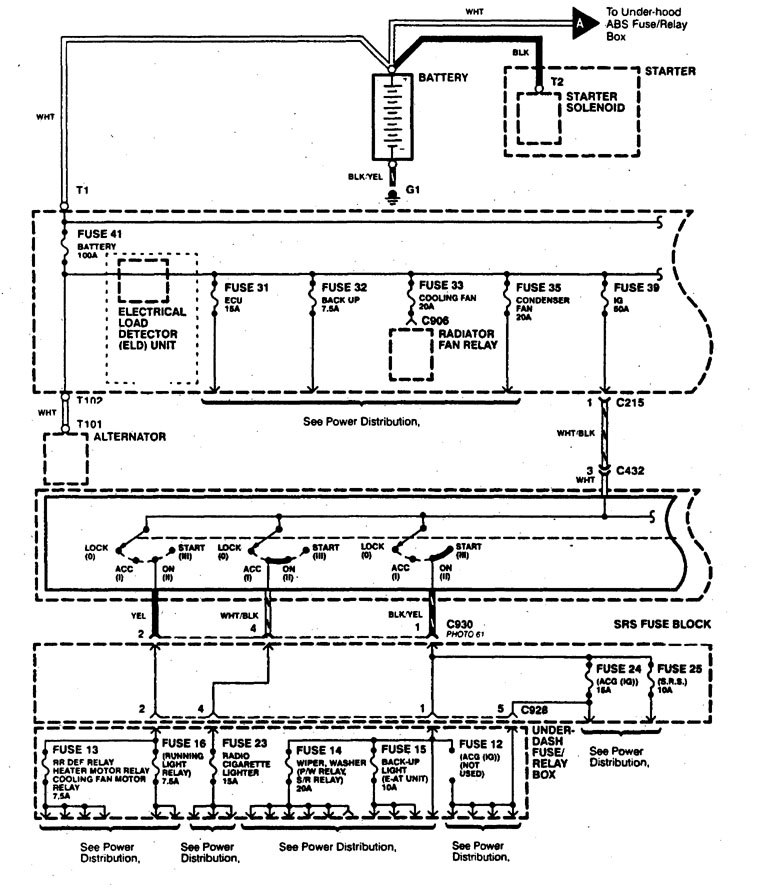

Acura Integra – wiring diagram – power distribution (part 9)

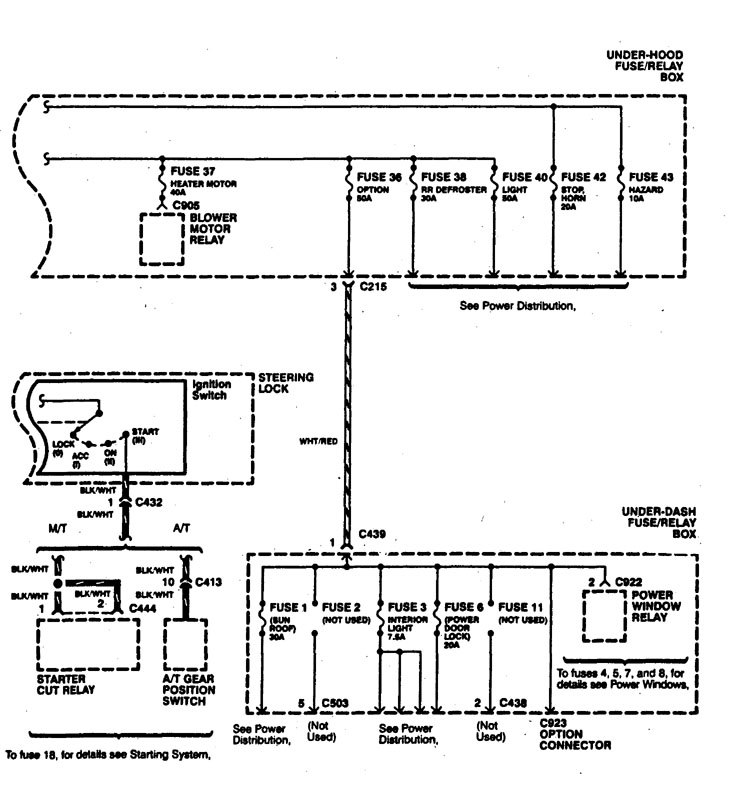

Acura Integra – wiring diagram – power distribution (part 10)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
