Acura Integra (1997) – wiring diagrams – seat belt warning

Acura Integra (1997) – wiring diagrams – seat belt warning

Year of productions:  1997

Seat belt warning

Acura Integra – wiring diagram – seat belt warning (part 1)

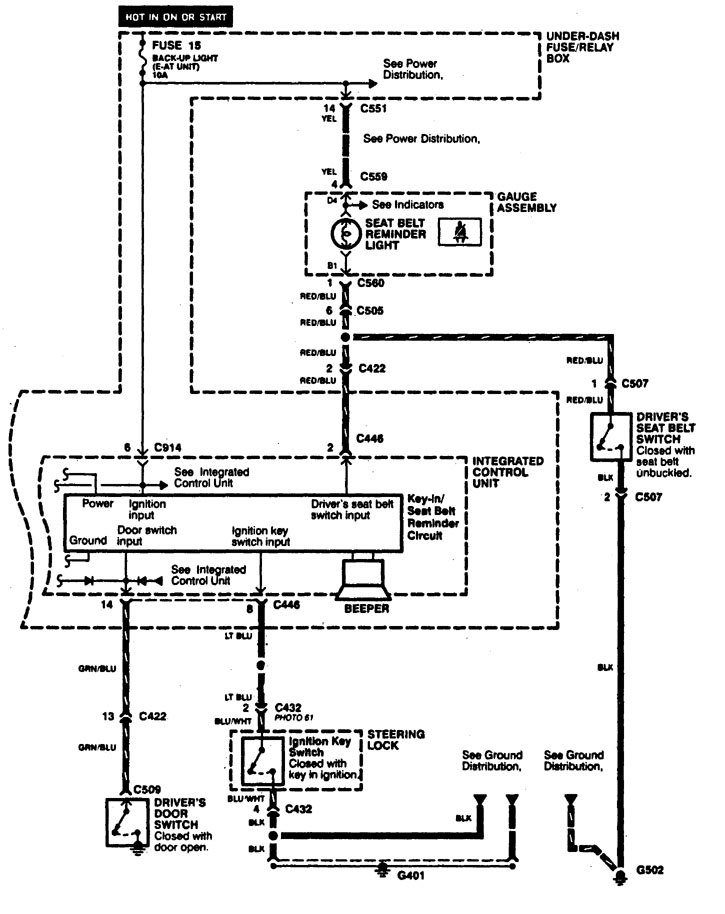

Acura Integra – wiring diagram – seat belt warning (part 2)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
