Acura Integra (1997) – wiring diagrams – security/anti-theft

Acura Integra (1997) – wiring diagrams – security/anti-theft

Year of productions: 1997

Security/anti-theft

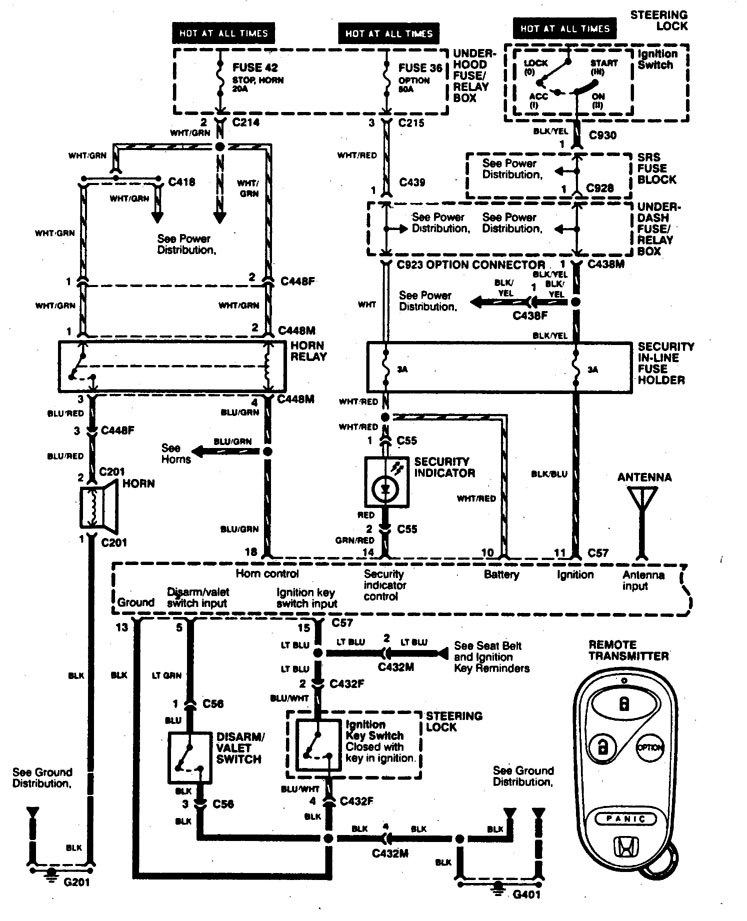

Acura Integra – wiring diagram – security/Anti Theft (part 1)

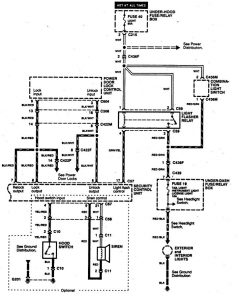

Acura Integra – wiring diagram – security/Anti Theft (part 2)

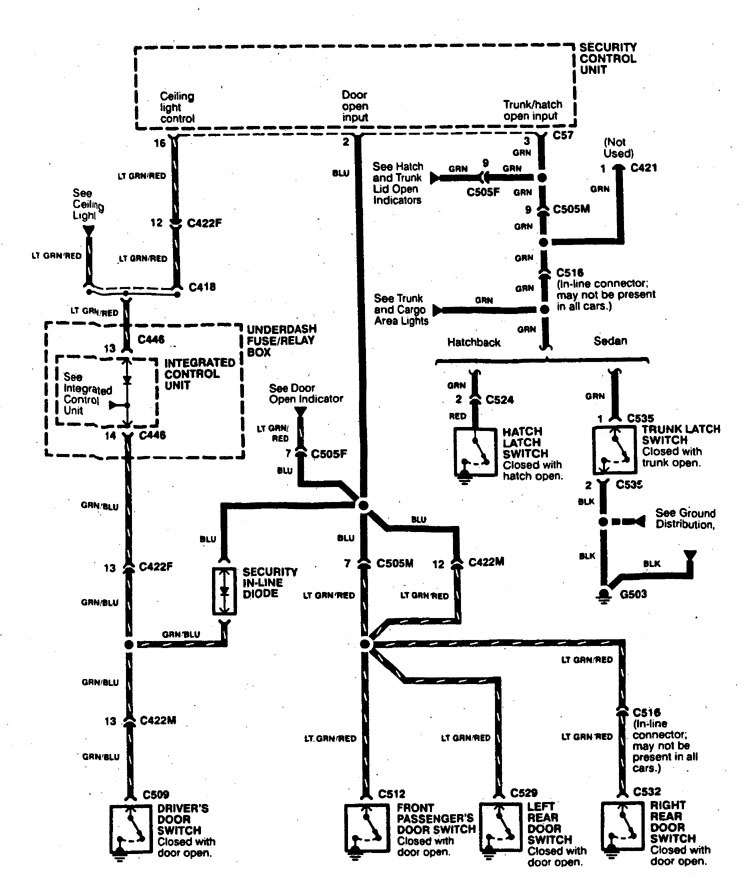

Acura Integra – wiring diagram – security/Anti Theft (part 3)

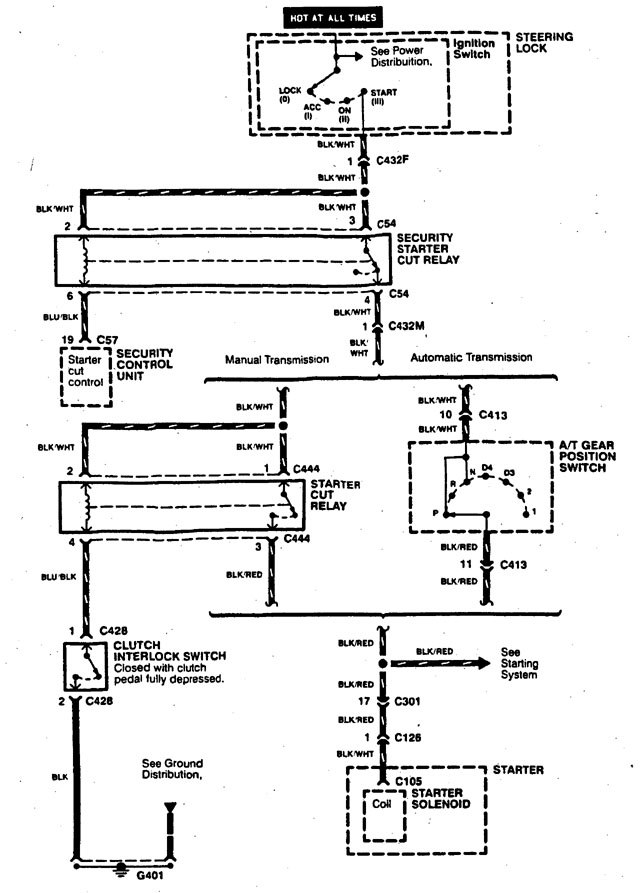

Acura Integra – wiring diagram – security/Anti Theft (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
