Acura Integra (1998 – 1999) – wiring diagrams – console lamp

Acura Integra (1998 – 1999) – wiring diagrams – console lamp

Year of productions: 1998, 1999

Console lamp

Acura Integra - wiring diagram - console lamp (part 1)
Acura Integra – wiring diagram – console lamp (part 1)

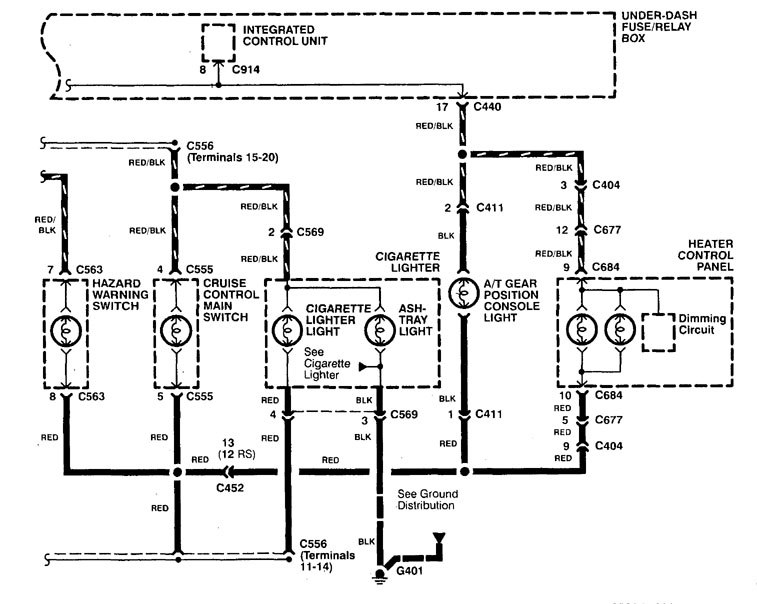

Acura Integra - wiring diagram - console lamp (part 2)
Acura Integra – wiring diagram – console lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
