Acura Integra (1998 – 1999) – wiring diagrams – dome lamp

Acura Integra (1998 – 1999) – wiring diagrams – dome lamp

Year of productions: 1998, 1999

Dome lamp

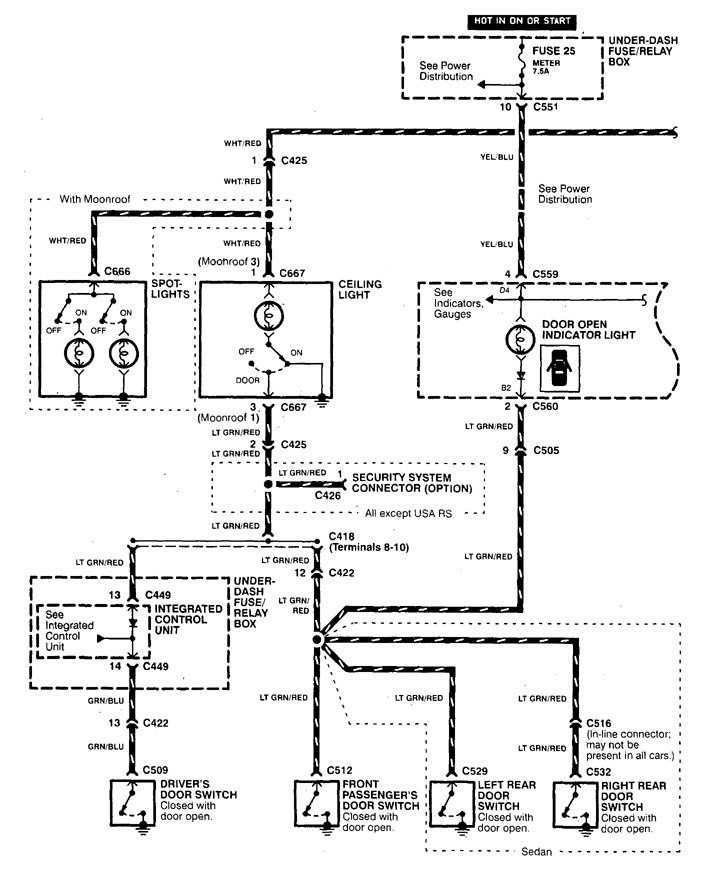

Acura Integra - wiring diagram - dome lamp (part 1)
Acura Integra – wiring diagram – dome lamp (part 1)

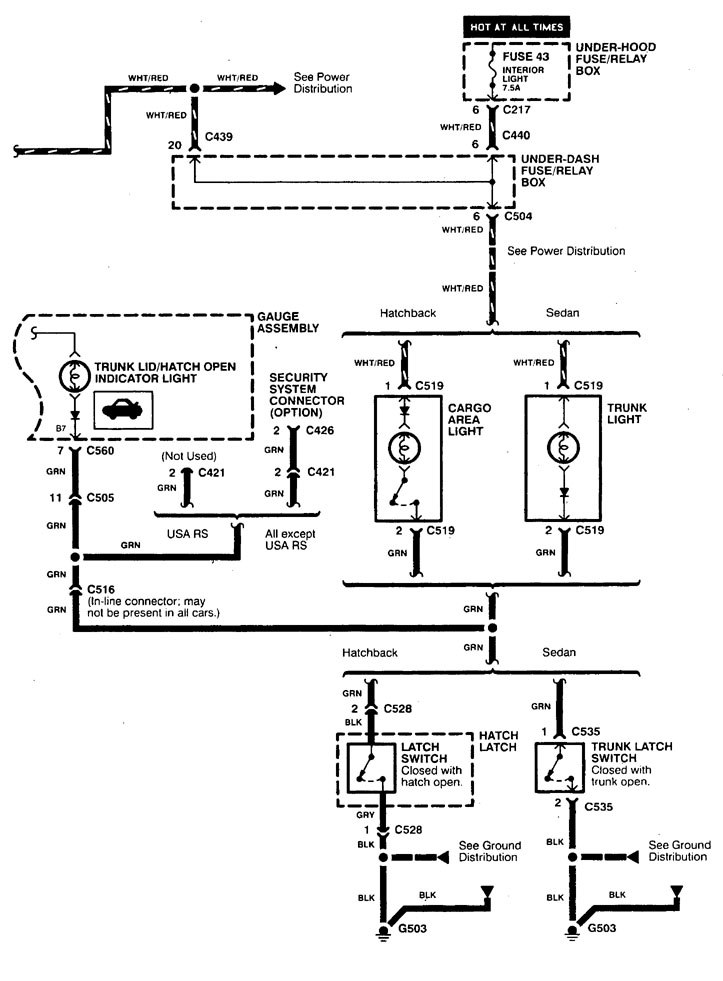

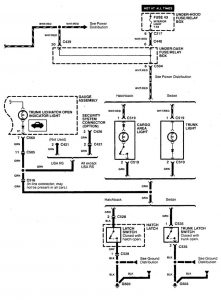

Acura Integra - wiring diagram - dome lamp (part 2)
Acura Integra – wiring diagram – dome lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
