Acura Integra (1998 – 1999) – wiring diagrams – driver information center/messenger center

Acura Integra (1998 – 1999) – wiring diagrams – driver information center/messenger center

Year of productions: 1998

Driver information center/messenger center

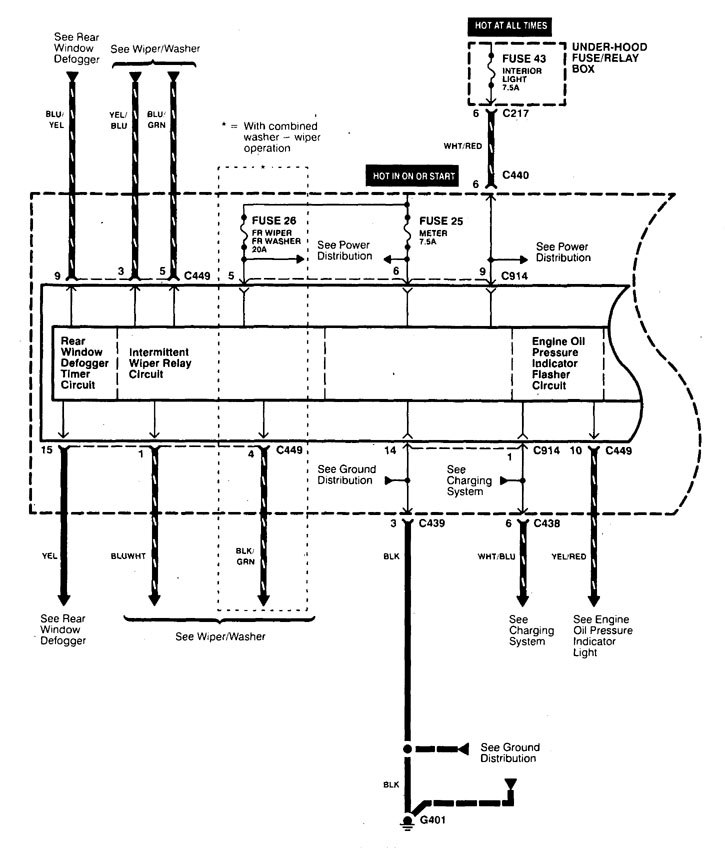

Acura Integra - wiring diagram - driver information center/messenger center (part 1)
Acura Integra – wiring diagram – driver information center/messenger center (part 1)

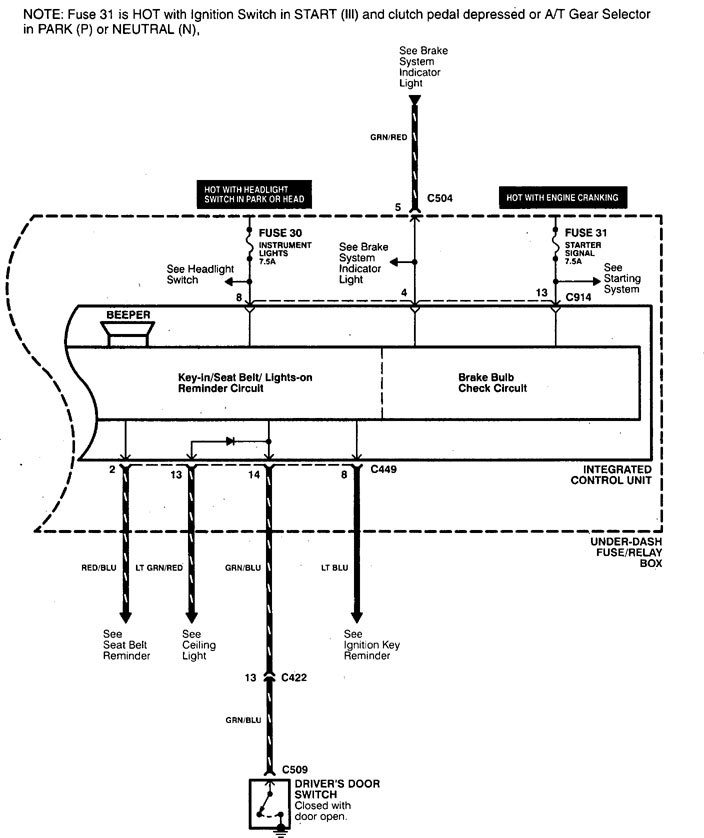

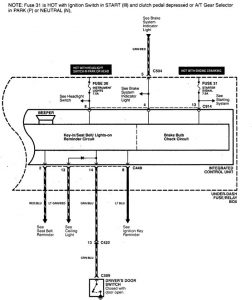

Acura Integra - wiring diagram - driver information center/messenger center (part 2)
Acura Integra – wiring diagram – driver information center/messenger center (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
