Acura Integra (1998 – 1999) – wiring diagrams – license plate lamp

Acura Integra (1998 – 1999) – wiring diagrams – license plate lamp

Year of productions: 1998, 1999

License plate lamp

Version 1

Acura Integra -wiring diagram - license plate lamp
Acura Integra -wiring diagram – license plate lamp

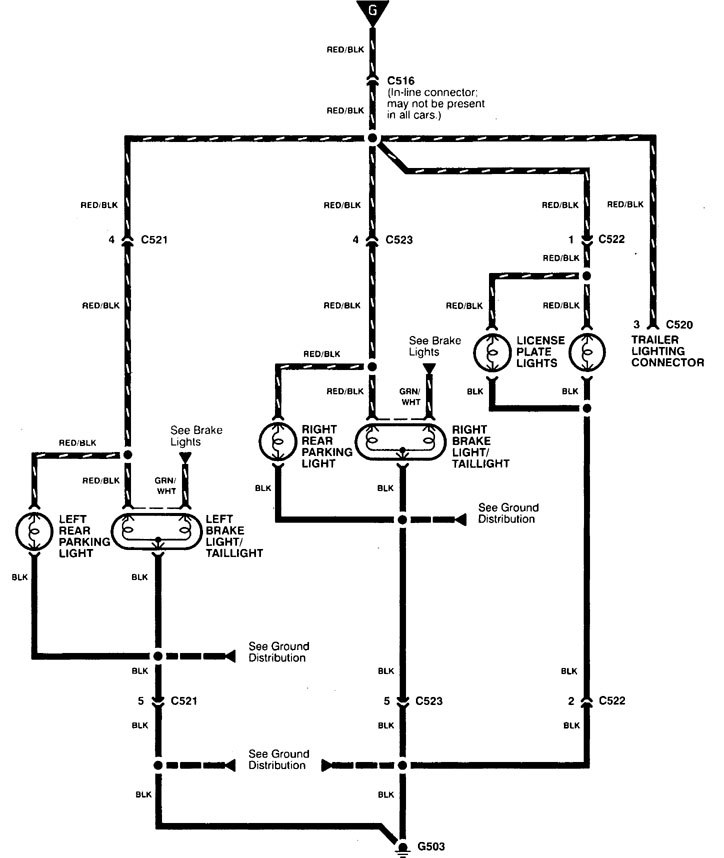

Version 2

Acura Integra -wiring diagram - license plate lamp
Acura Integra – wiring diagram – license plate lamp

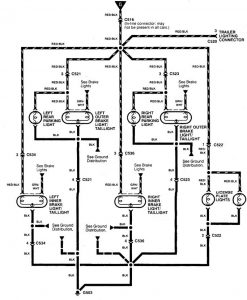

Version 3

Acura Integra -wiring diagram - license plate lamp
Acura Integra – wiring diagram – license plate lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
