Acura Integra (1998 – 1999) – wiring diagrams – parking lamp

Acura Integra (1998 – 1999) – wiring diagrams – parking lamp

Year of productions: 1998, 1999

Parking lamp

Version 1

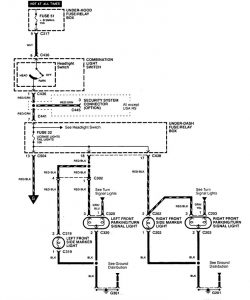

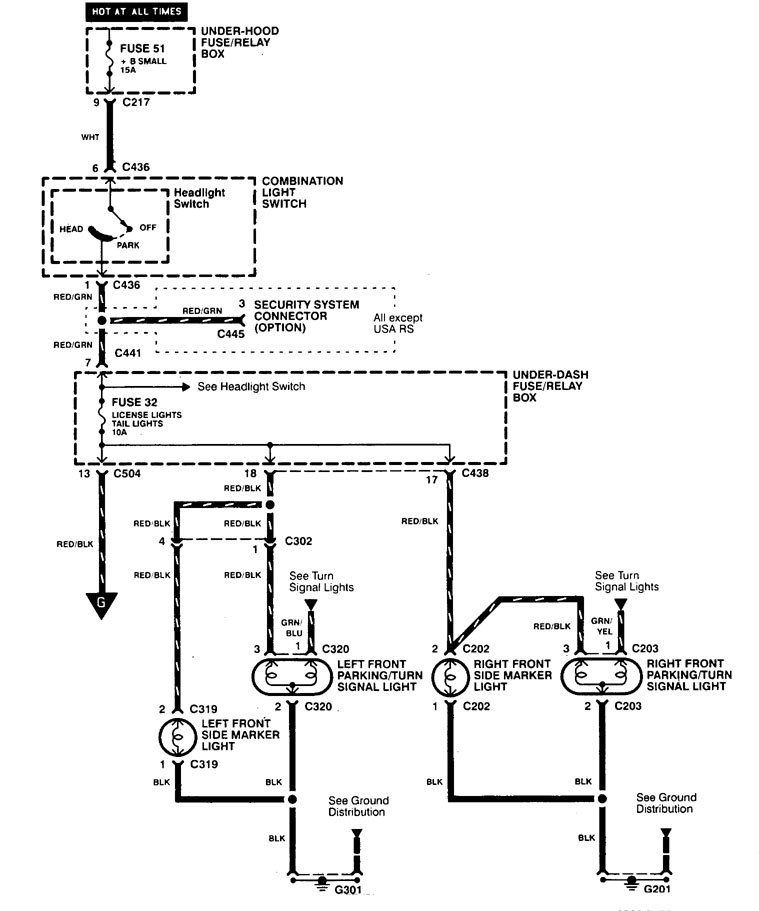

Acura Integra - wiring diagram - parking lamp
Acura Integra – wiring diagram – parking lamp

Version 2

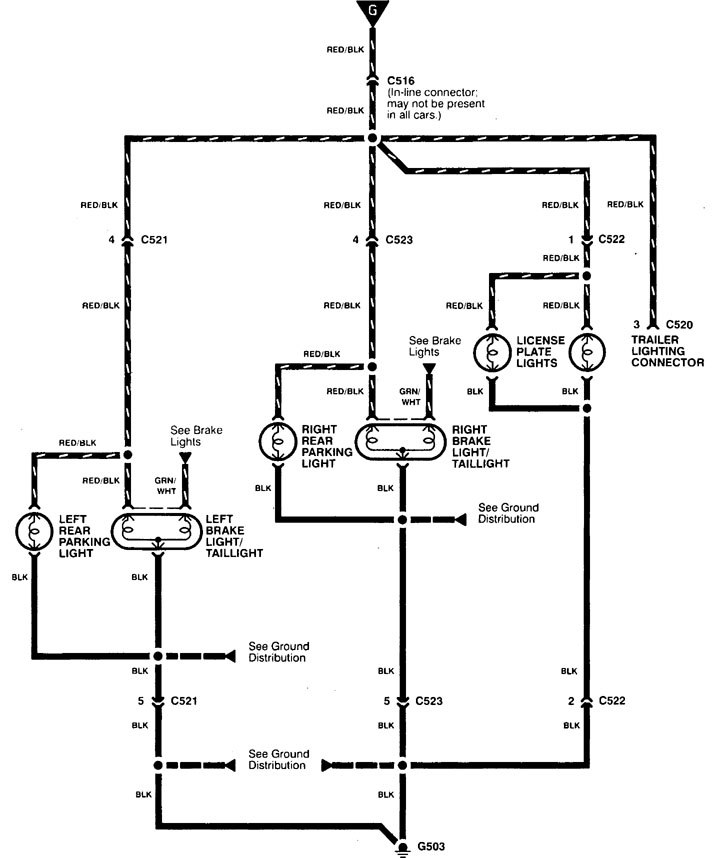

Acura Integra - wiring diagram - parking lamp
Acura Integra – wiring diagram – parking lamp

Version 3

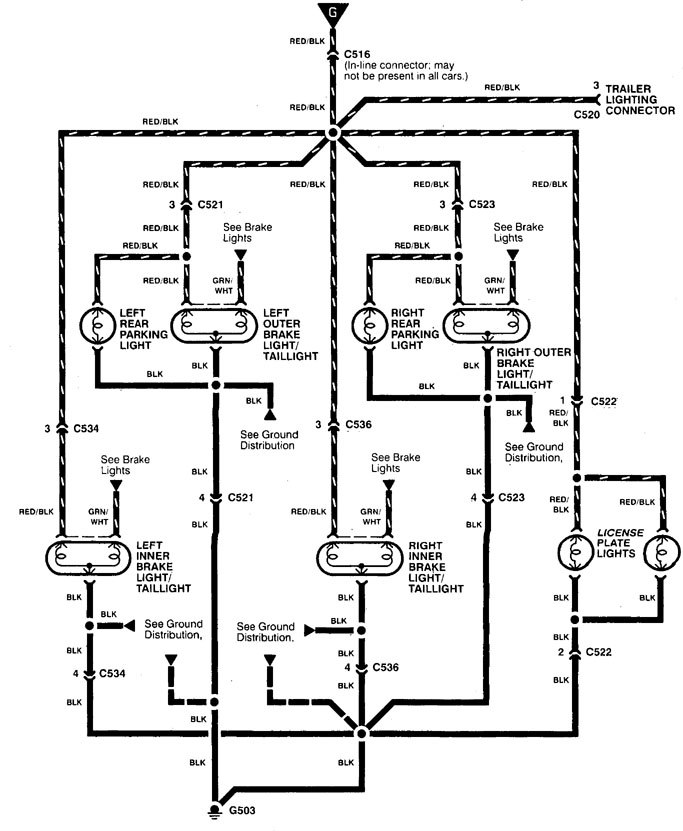

Acura Integra - wiring diagram - parking lamp
Acura Integra – wiring diagram – parking lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
