Acura Integra (1998 – 1999) – wiring diagrams – security/anti-theft

Acura Integra (1998 – 1999) – wiring diagrams – security/anti-theft

Year of productions: 1998, 1999

Security/anti-theft

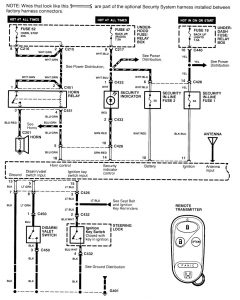

Acura Integra – wiring diagram – security/anti theft (part 1)

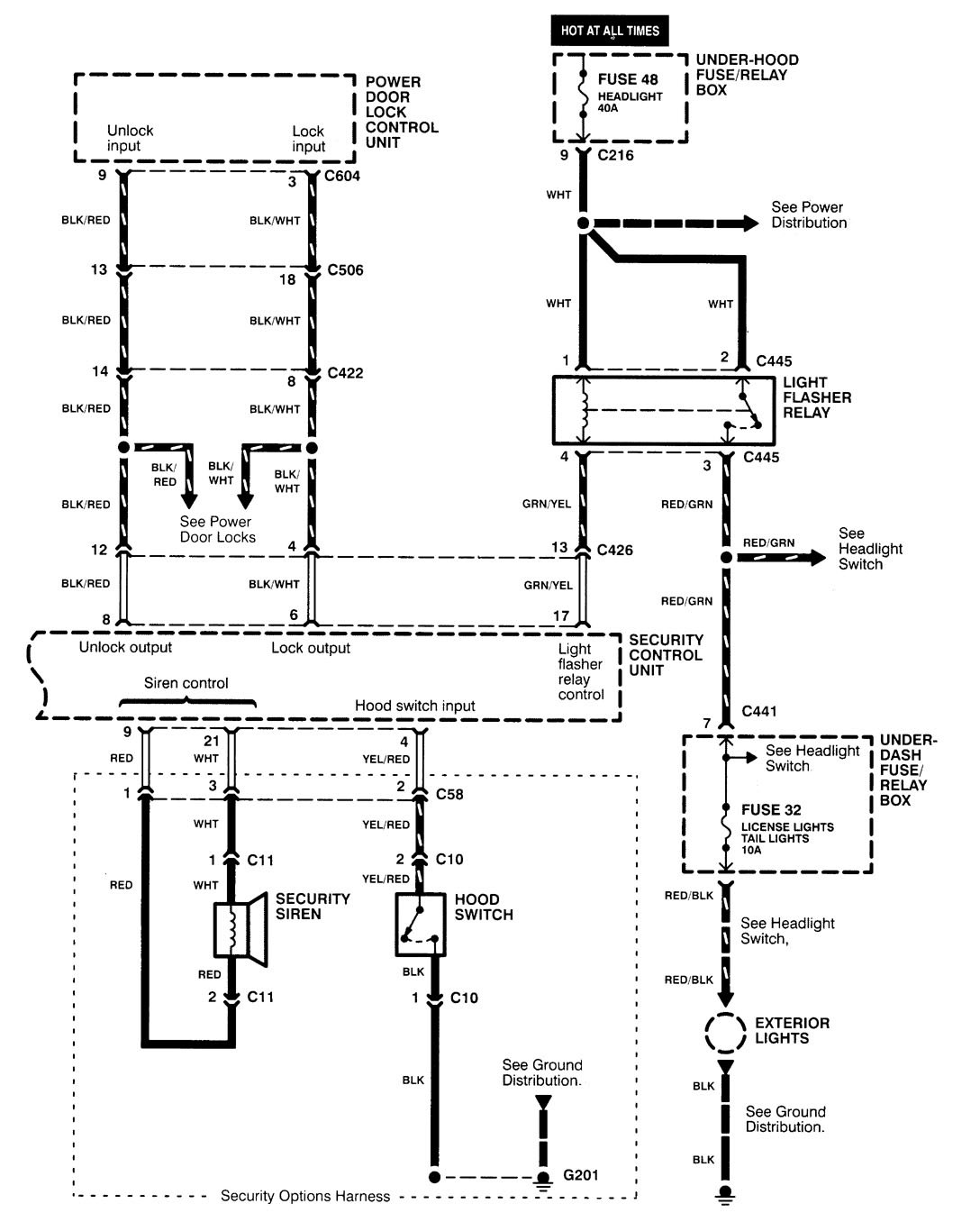

Acura Integra – wiring diagram – security/anti theft (part 2)

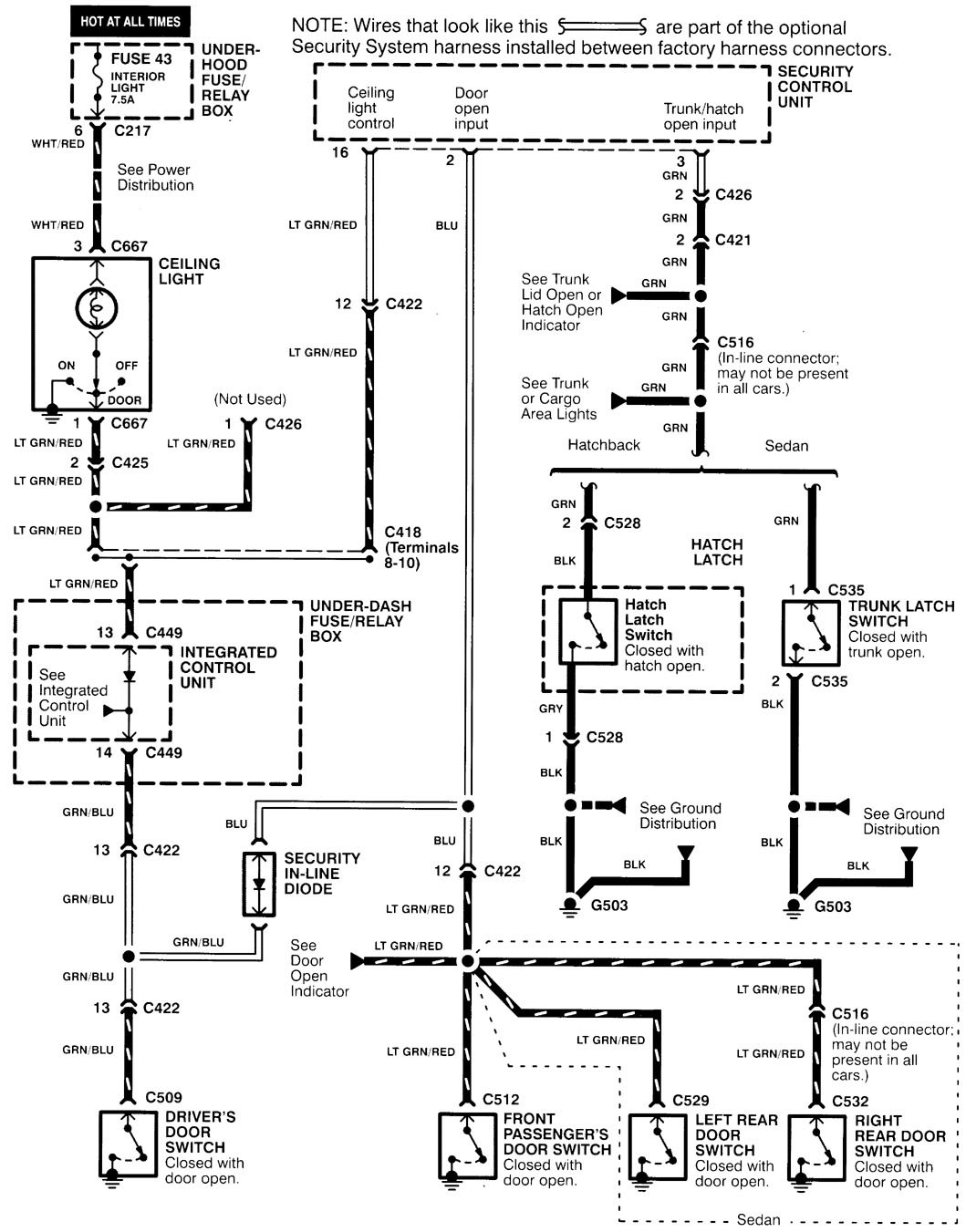

Acura Integra – wiring diagram – security/anti theft (part 3)
Acura Integra – wiring diagram – security/anti theft (part 4)

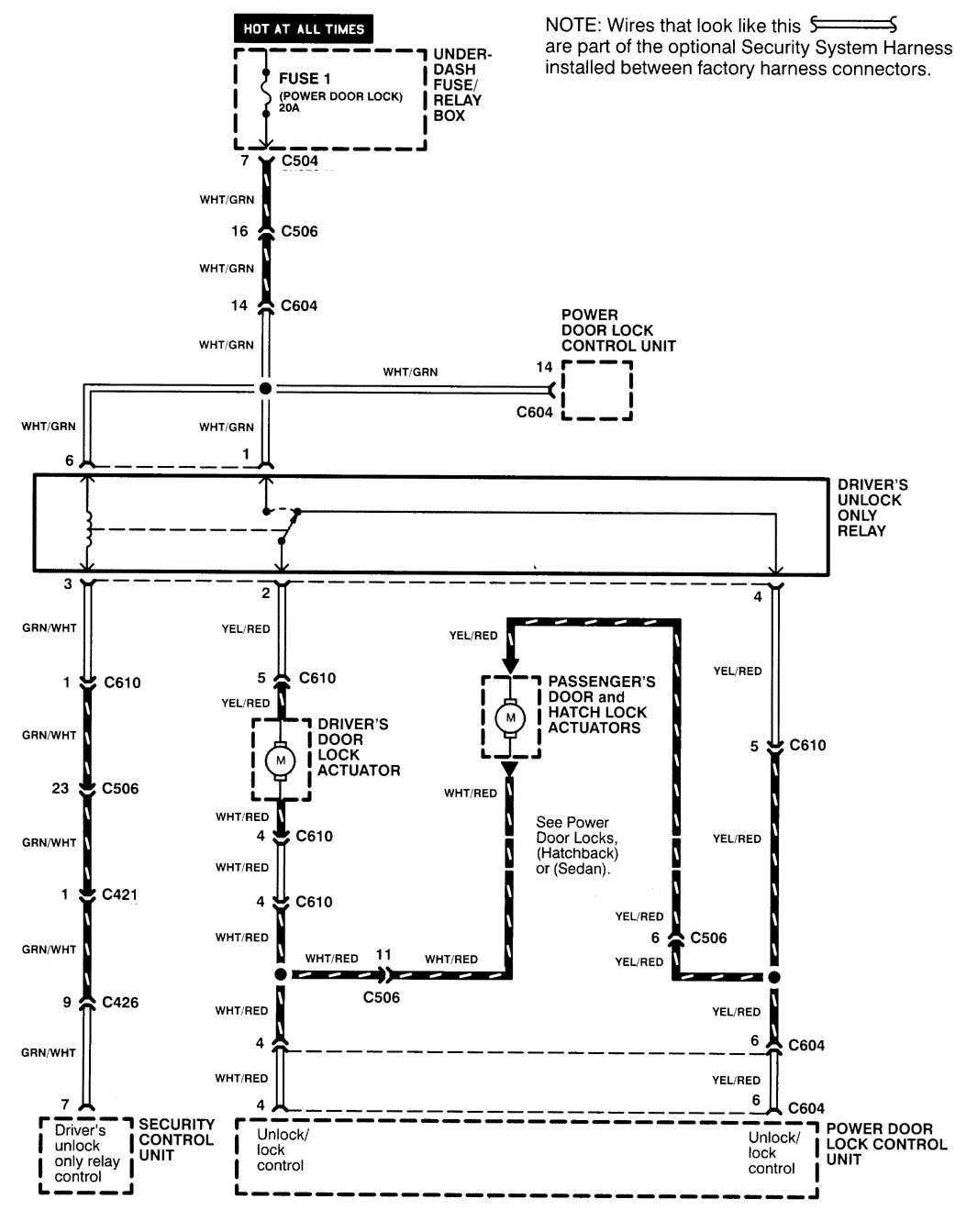

Acura Integra – wiring diagram – security/anti theft (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
