Acura Integra (1998 – 1999) – wiring diagrams – stop lamp

Acura Integra (1998 – 1999) – wiring diagrams – stop lamp

Year of productions: 1998, 1999

Stop lamp

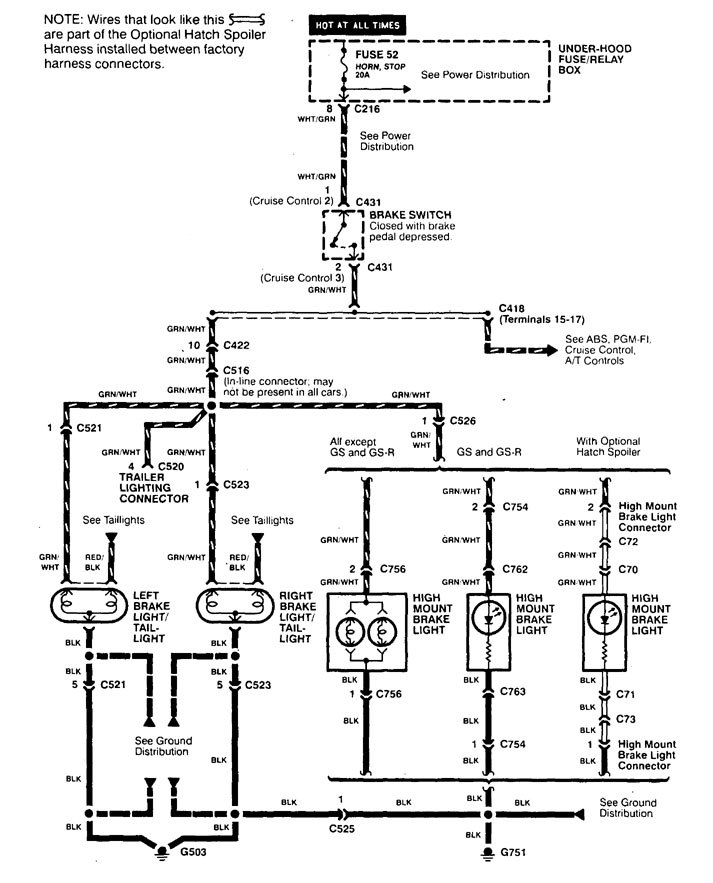

Version 1

Acura Integra - wiring diagram - stop lamp
Acura Integra – wiring diagram – stop lamp

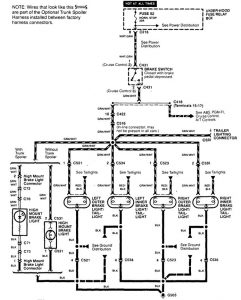

Version 2

Acura Integra - wiring diagram - stop lamp
Acura Integra – wiring diagram – stop lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
