Acura Integra (1998 – 2001) – wiring diagrams – air bags

Acura Integra (1998 – 2001) – wiring diagrams – air bags

Year of productions: 1998, 1999, 2000, 2001

Air bags

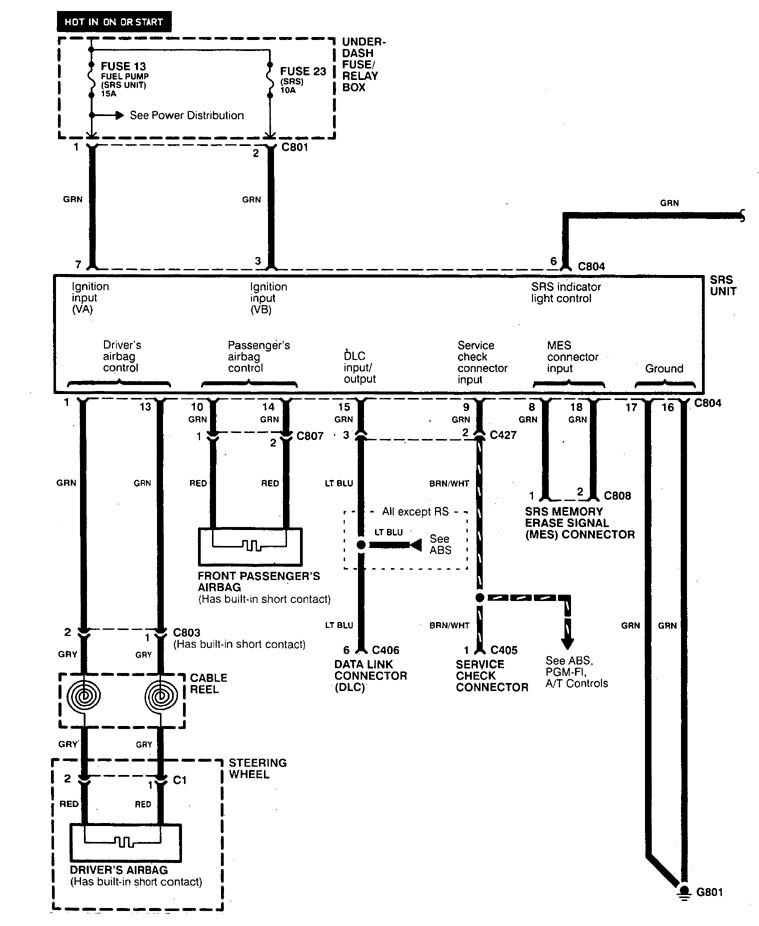

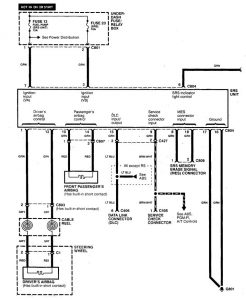

Acura Integra - wiring diagram - air bags (part 1)
Acura Integra – wiring diagram – air bags (part 1)

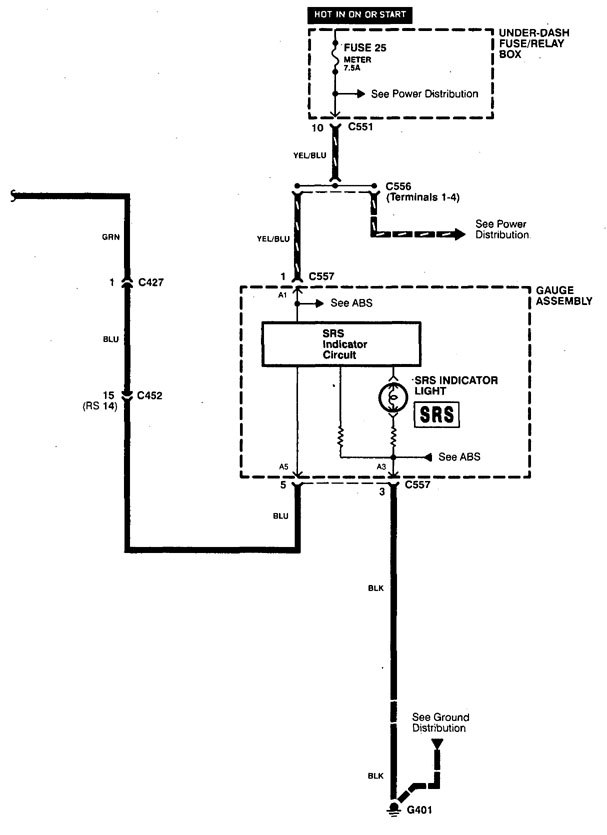

Acura Integra - wiring diagram - air bags (part 2)
Acura Integra – wiring diagram – air bags (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
