Acura Integra (1998 – 2001) – wiring diagrams – ground distribution

Acura Integra (1998 – 2001) – wiring diagrams – ground distribution

Year of productions: 1998, 1999, 2000, 2001

Ground distribution

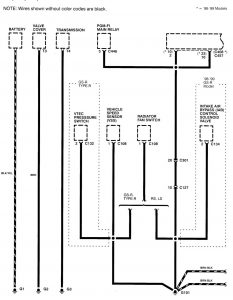

Acura Integra – wiring diagram – ground distribution (part 1)

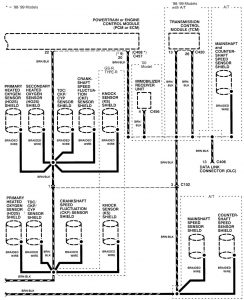

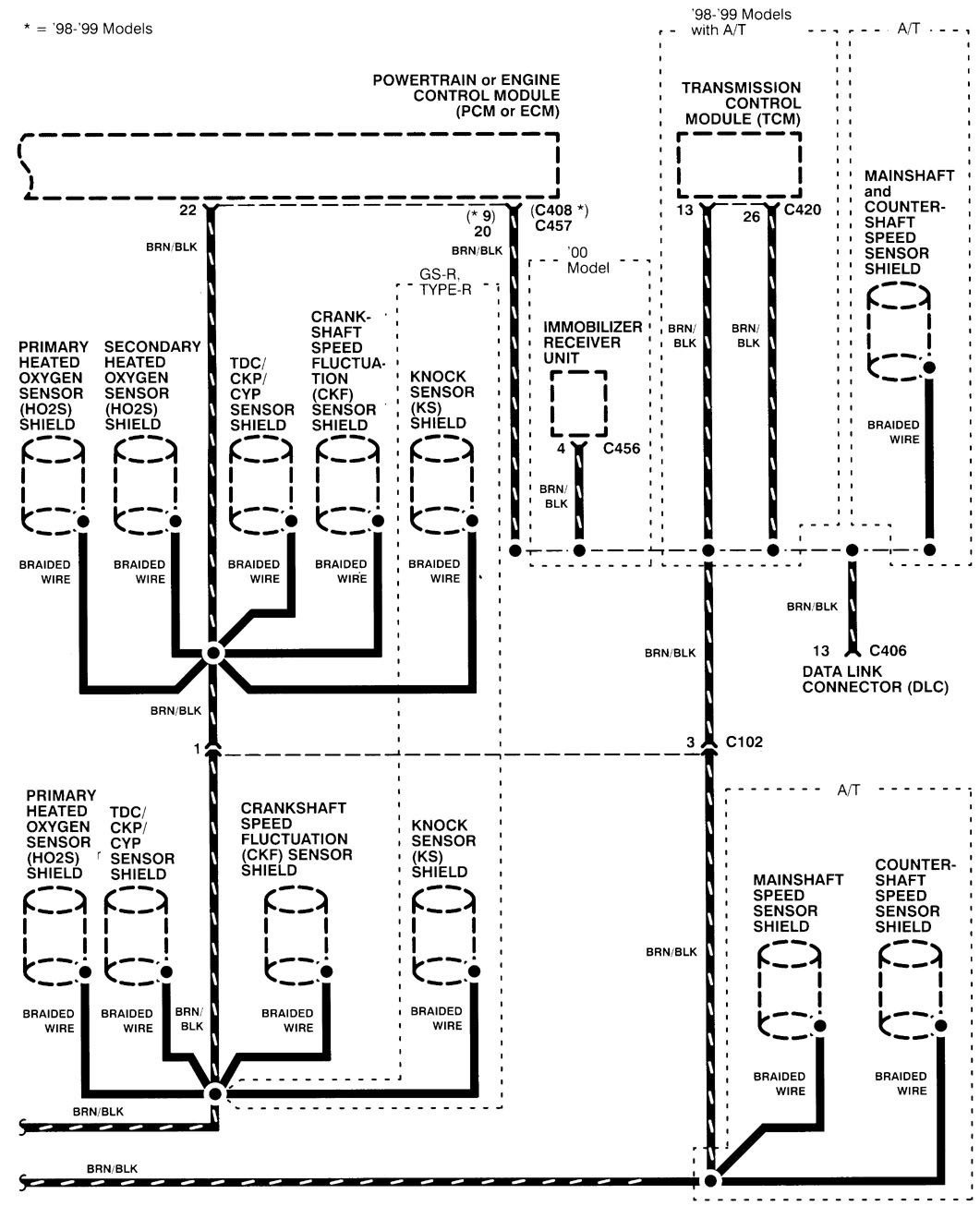

Acura Integra – wiring diagram – ground distribution (part 2)

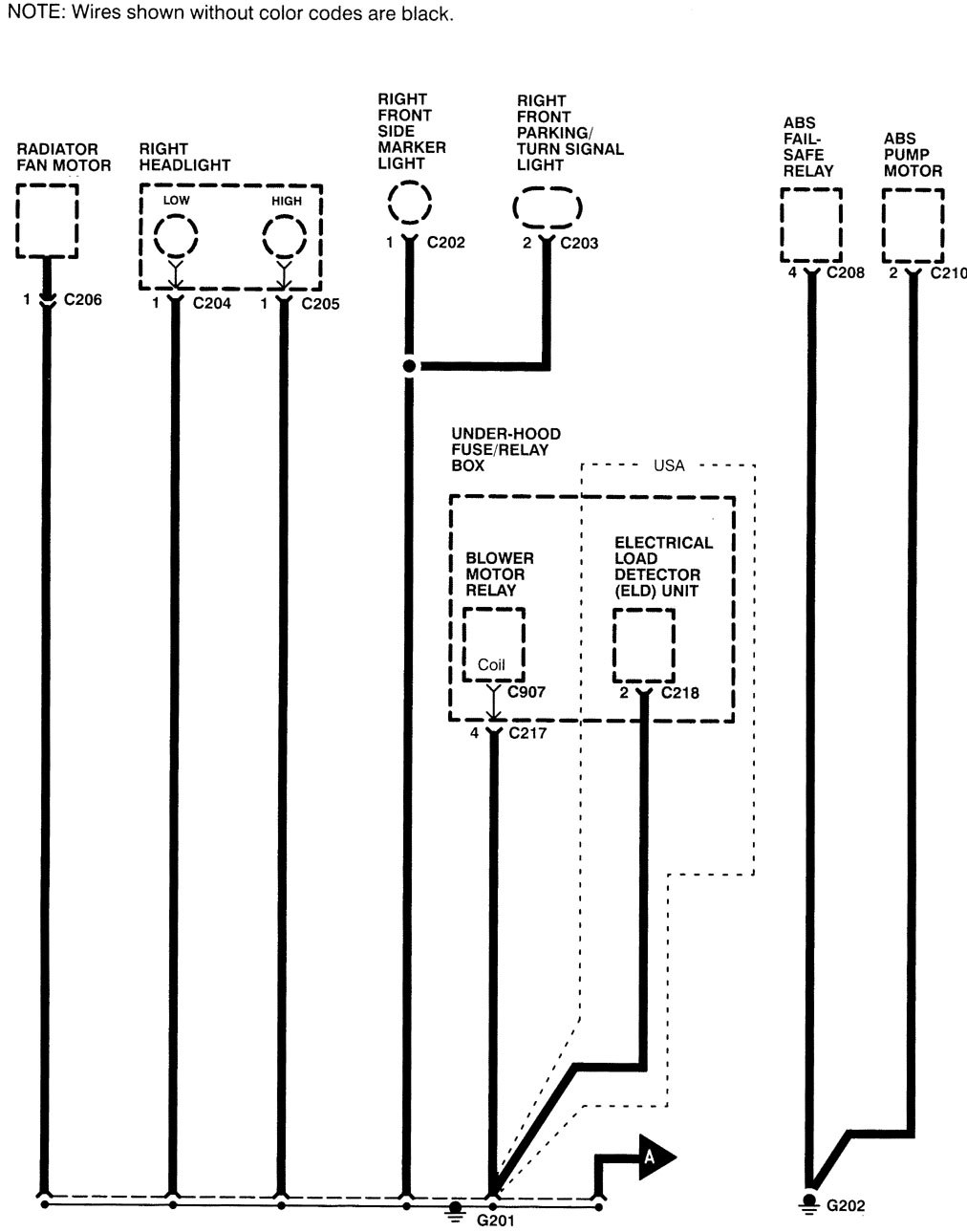

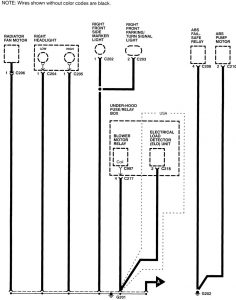

Acura Integra – wiring diagram – ground distribution (part 3)

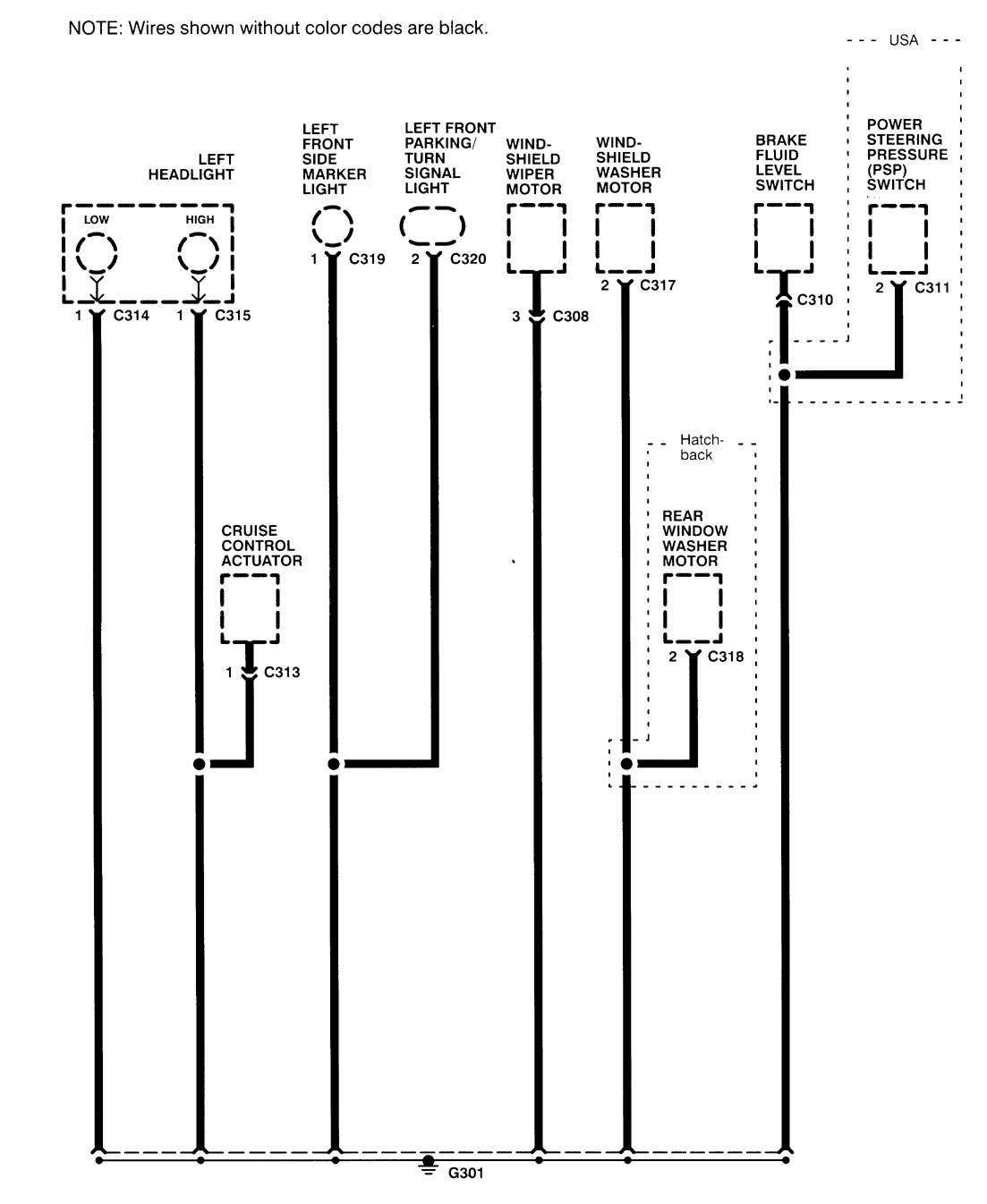

Acura Integra – wiring diagram – ground distribution (part 4)

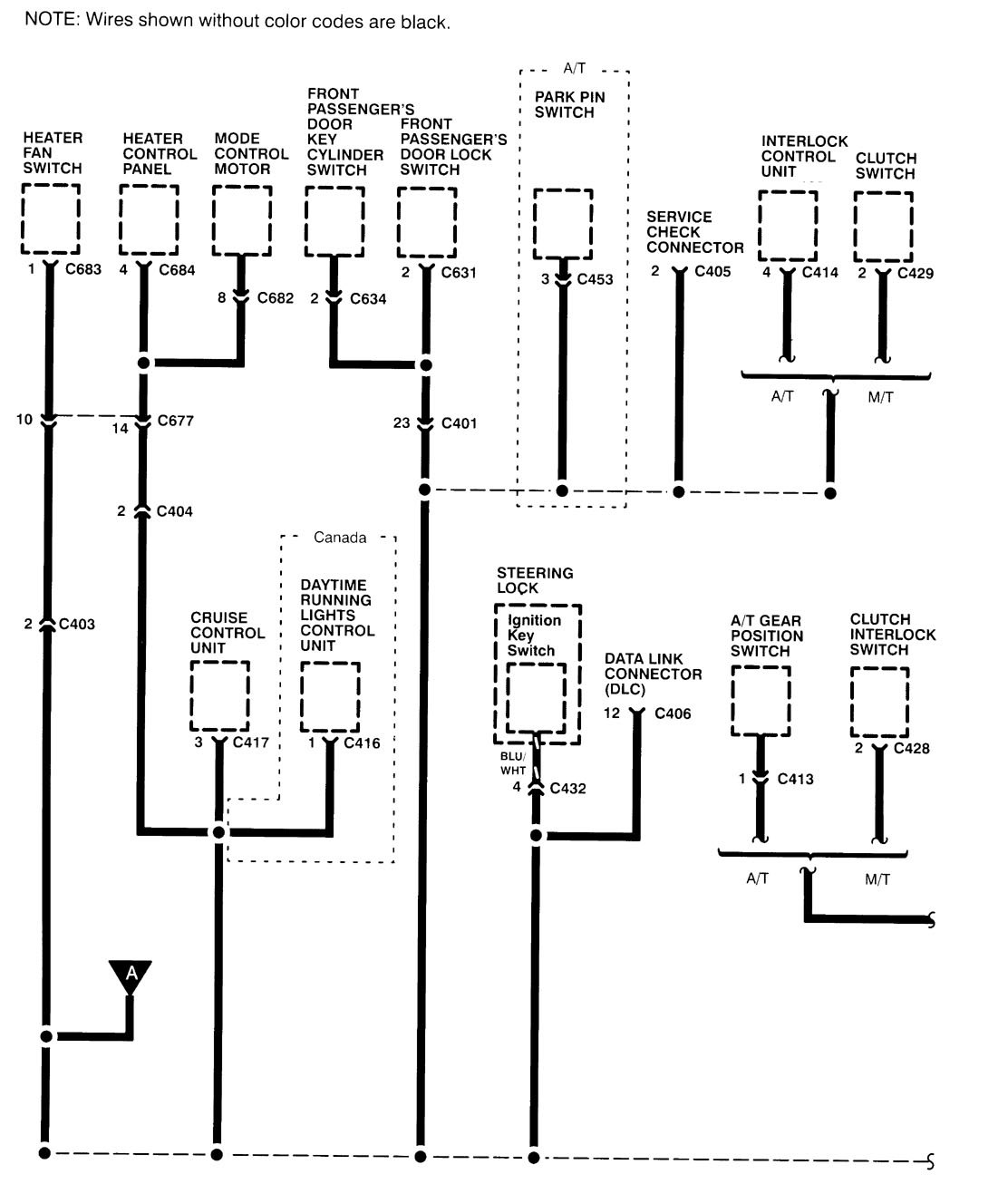

Acura Integra – wiring diagram – ground distribution (part 5)

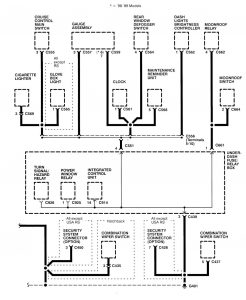

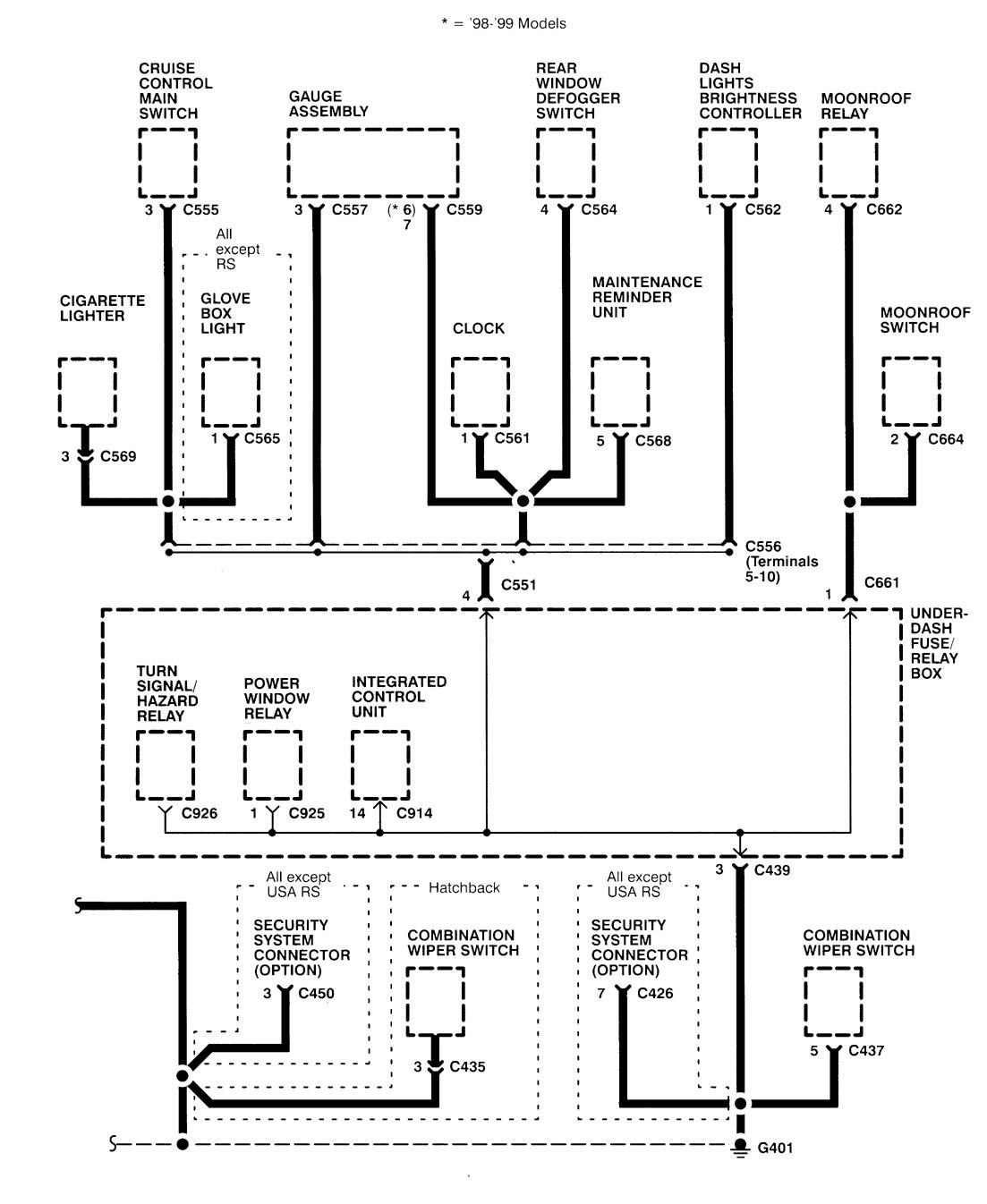

Acura Integra – wiring diagram – ground distribution (part 6)

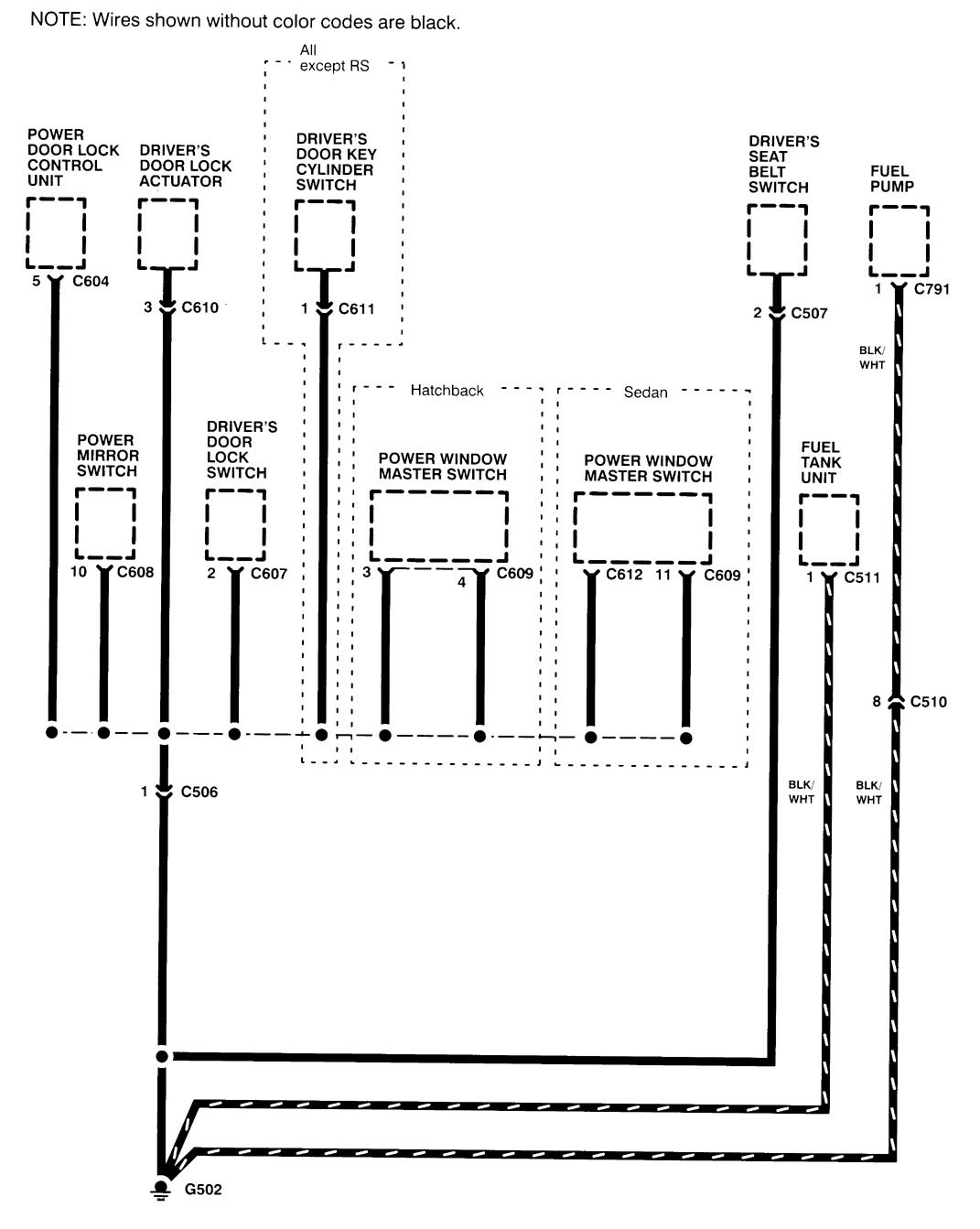

Acura Integra – wiring diagram – ground distribution (part 7)

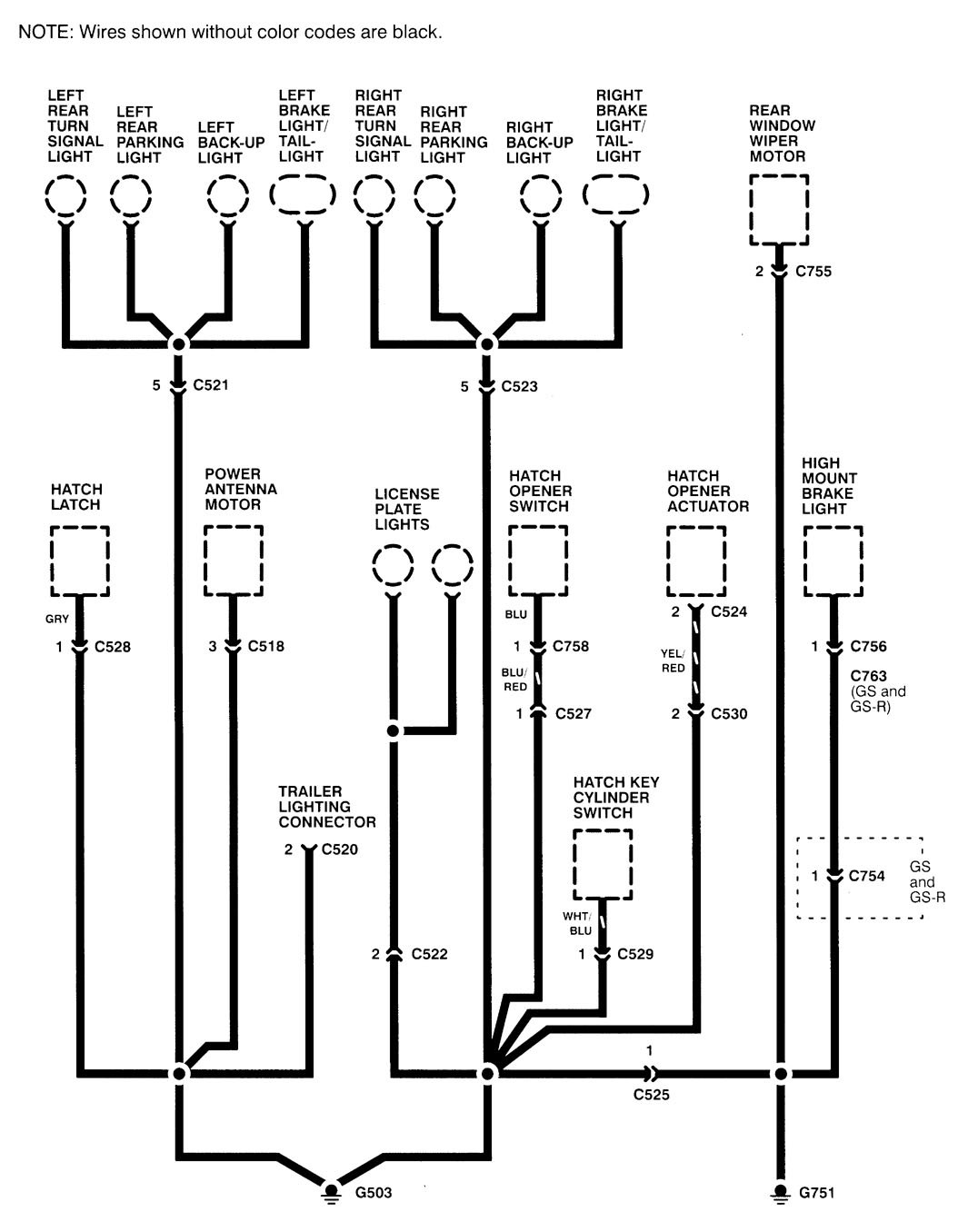

Acura Integra – wiring diagram – ground distribution (part 8)

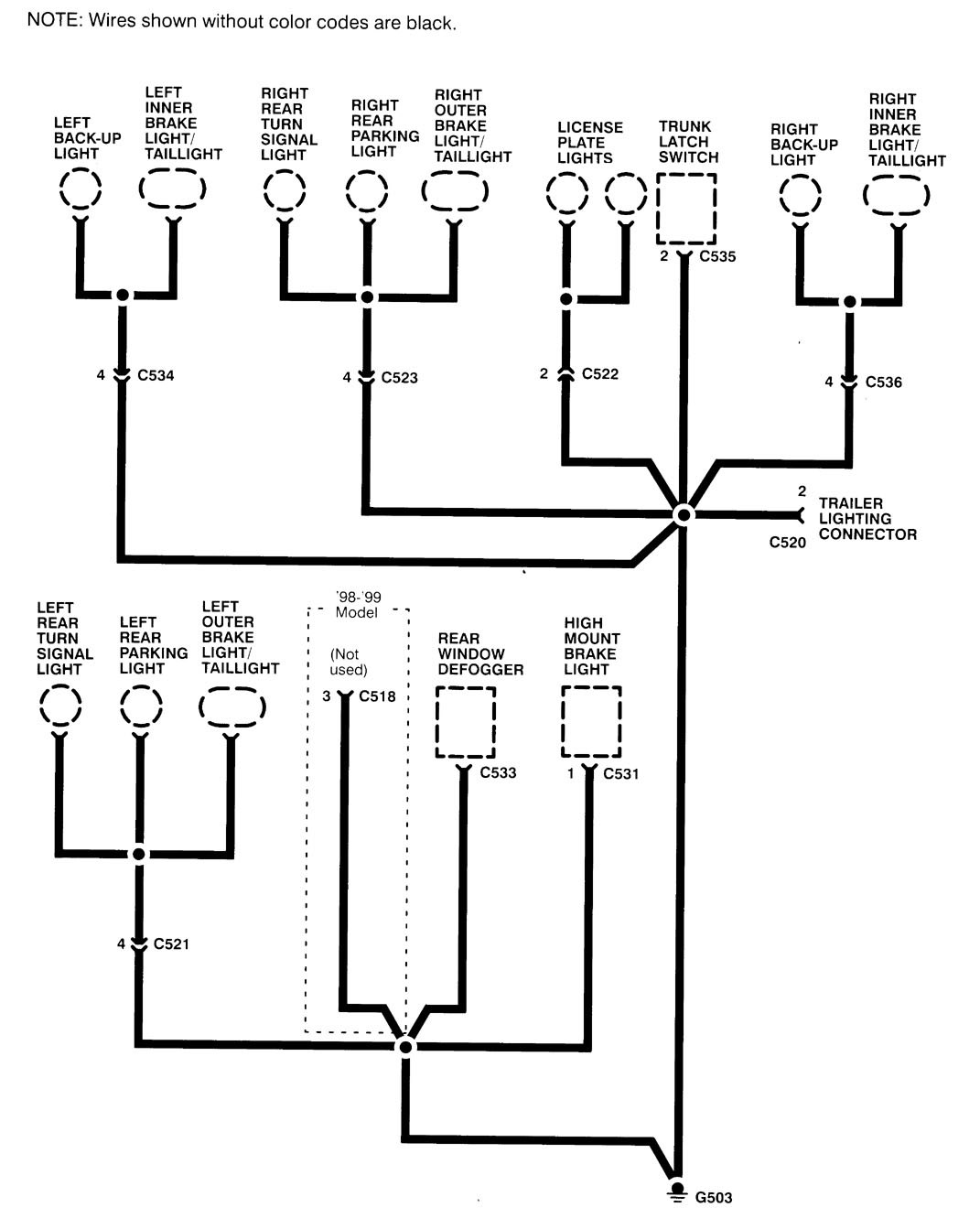

Acura Integra – wiring diagram – ground distribution (part 9)

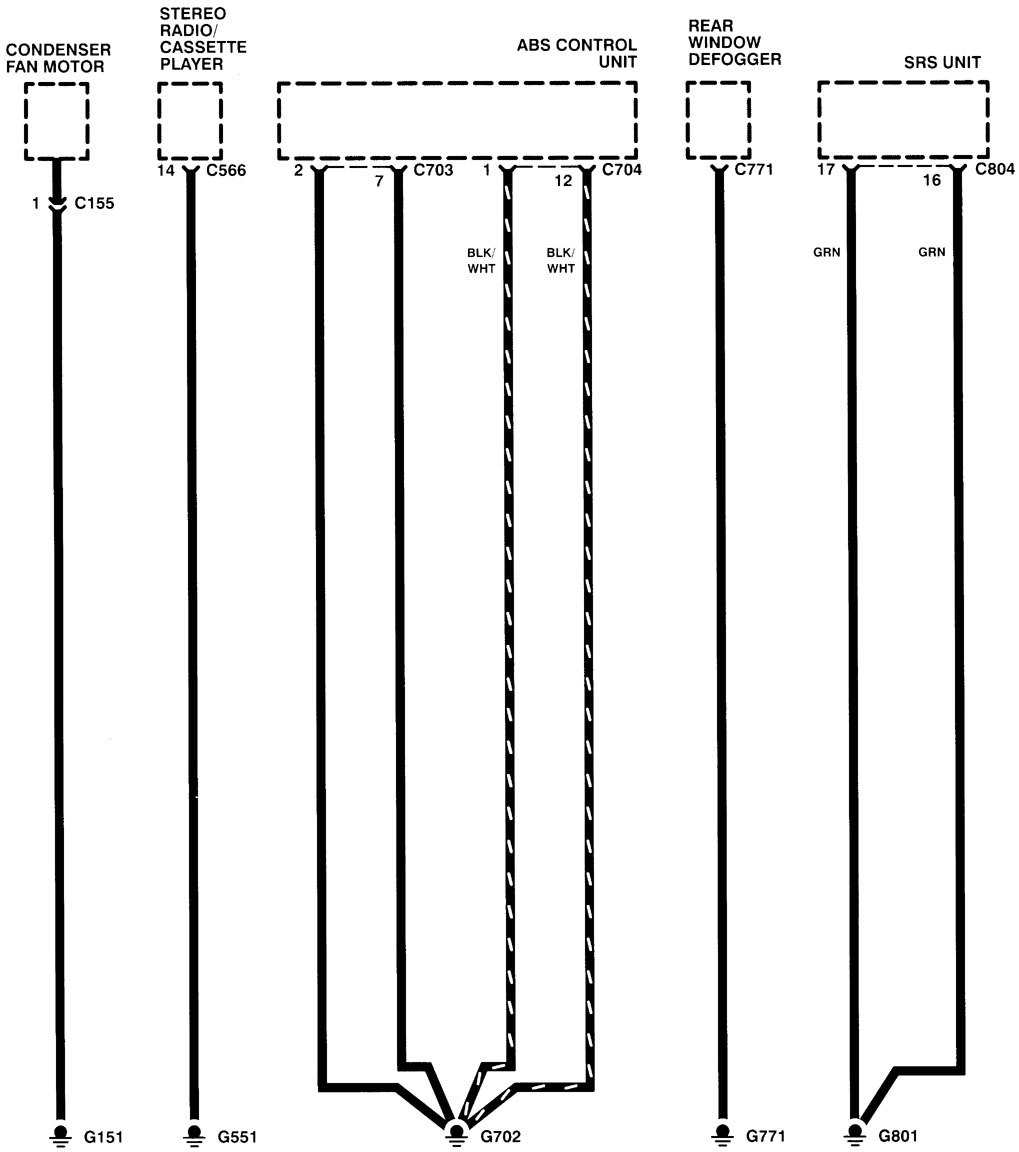

Acura Integra – wiring diagram – ground distribution (part 10)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
