Acura Integra (1998 – 2001) – wiring diagrams – headlamps

Acura Integra (1998 – 2001) – wiring diagrams – headlamps

Year of productions: 1998, 1999, 2000, 2001

Headlamps

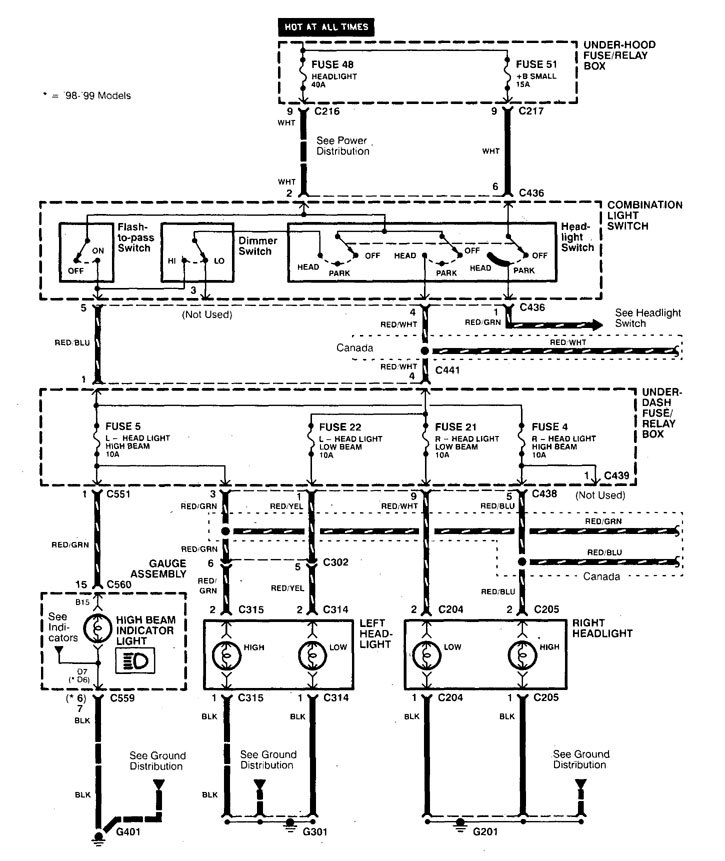

Acura Integra - wiring diagram - headlamps
Acura Integra – wiring diagram – headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
