Acura Integra (1998 – 2001) – wiring diagrams – instrumentation

Acura Integra (1998 – 2001) – wiring diagrams – instrumentation

Year of productions: 1998, 1999, 2000, 2001

Instrumentation

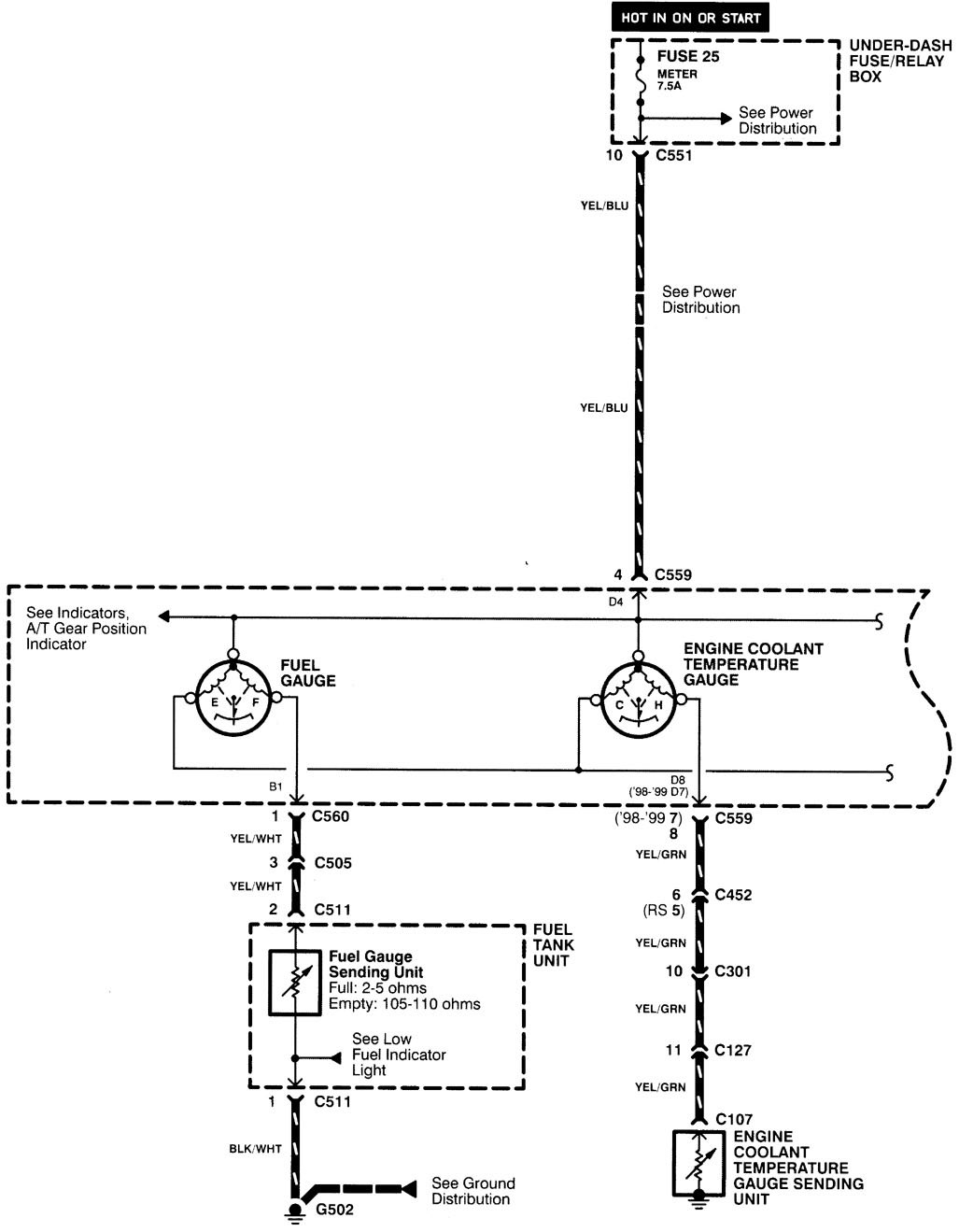

Acura Integra – wiring diagram – instrumentation (part 1)

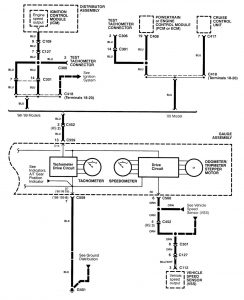

Acura Integra – wiring diagram – instrumentation (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
